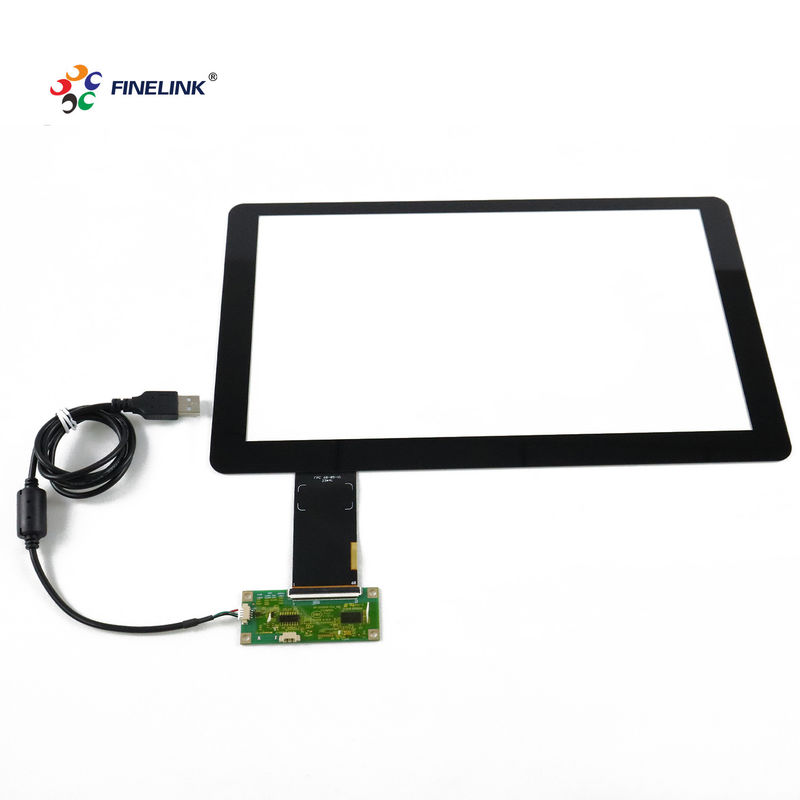

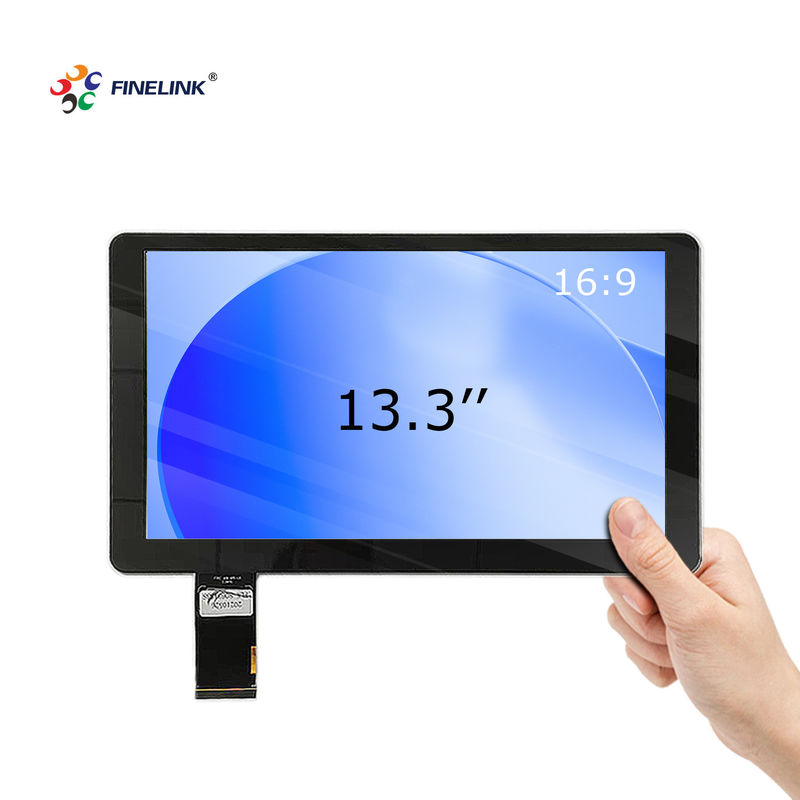

RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor

RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor

RS232 Interface PCAP Touch Panel

Tft LCD Displays For POS Monitor

Place of Origin:

Guangdong, China

Brand Name:

FINELINK

Contact Us
Request A Quote
Product Details
Warranty(Year):
1-Year
Color:
Multi, Multi
Package:
Yes
Series:
For Business
Aspect Ratio:
16:9
After-sales Service:
Call Center And On-line Technical Support, Free Spare Parts, Return And Replacement
Private Mold:
Yes
Products Status:
New
Type:
Capacitive
Interface Type:
USB/I2C/Serial Port
Product Name:
13.3 Inch Capacitive Touch Panel
Application:
Touch Panel For Industrial Computer Monitor
Structure:
Glass+Glass+FPC+IC
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
Interface:
I2C/USB/RS232
HS Code:
85480000
Port:
Shenzhen, Guangzhou, Shanghai
Highlight:

RS232 Interface PCAP Touch Panel

,

Tft LCD Displays For POS Monitor

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$30.12/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

The RS232 Interface PCAP Touch Panel 13.3 Inch G+G is designed for seamless integration into POS monitors, offering a responsive and precise touch experience. Utilizing Projected Capacitive (PCAP) technology and a glass-on-glass (G+G) structure, this touch panel ensures durability and clarity, making it ideal for demanding commercial environments.

Item
13.3 Inch G+G Capacitive Touch Panel For POS monitor
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB
Lens OD
335*197mm
Sensor OD
307.88*181.12mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Projected Capacitive (PCAP) Technology: Delivers a highly accurate and responsive touch experience, supporting multi-touch functionality.
  • RS232 Interface: Provides robust and reliable connectivity, ensuring stable communication with various systems.
  • Glass-on-Glass (G+G) Structure: Enhances durability and optical clarity, making it suitable for high-traffic environments.
  • 13.3 Inch Display: Offers ample screen real estate for POS applications, improving user interaction and efficiency.
  • High Durability: Resistant to scratches and impacts, ensuring longevity even in rigorous use cases.
  • Easy Integration: Designed for smooth integration into existing POS systems and enclosures.

RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor 0

Application Scenarios

  • Retail Point-of-Sale (POS) Systems: Perfect for checkout counters, self-service kiosks, and customer-facing displays.
  • Hospitality Industry: Ideal for use in restaurants, hotels, and service stations where quick and accurate touch input is required.
  • Healthcare: Suitable for medical equipment and patient check-in kiosks, where precision and reliability are critical.
  • Industrial Control Systems: Useful in factory automation and control panels that require a robust and responsive touch interface.
  • Banking and Finance: Perfect for ATMs, interactive teller machines, and other financial service terminals.

RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor 1

Customization Services

  • Size and Shape Customization: Tailored dimensions and form factors to fit specific application needs.
  • Touch Sensitivity Adjustment: Customizable touch sensitivity to meet various operational requirements.
  • Interface Options: Additional interface options like USB and I2C available upon request.
  • Branding and Labeling: Custom branding and labeling to align with your company’s identity.
  • Environmental Enhancements: Options for waterproofing, dustproofing, and anti-glare coatings to suit different environments.
RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor 2
RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor 3
RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor 4

Packaging and Shipping

  • Secure Packaging: Each touch panel is securely packaged to prevent damage during transit.
  • Custom Packaging Available: Options for personalized packaging to meet specific branding and presentation requirements.
  • Efficient Shipping: Reliable shipping methods to ensure timely delivery worldwide.
  • Eco-Friendly Materials: Use of environmentally friendly packaging materials to minimize environmental impact.

FAQ

Q: Is the touch panel compatible with all POS systems?
A: The touch panel is designed to be compatible with a wide range of POS systems, but please verify the RS232 interface compatibility with your specific system.

Q: Can the touch panel withstand high-traffic environments?
A: Yes, the glass-on-glass (G+G) structure ensures high durability, making it suitable for high-traffic and demanding environments.

Q: How do I connect the touch panel to my POS system?
A: The panel features an RS232 interface for easy and reliable connectivity.

Q: What is the warranty period for this product?
A: The touch panel comes with a standard one-year warranty, with options for extended warranties available.

Q: Can the touch sensitivity be adjusted to my requirements?
A: Yes, the touch sensitivity can be customized to meet specific user needs and operational requirements.

Q: Is technical support available for setup and integration?
A: Yes, comprehensive technical support is available to assist with setup and integration, ensuring a smooth implementation into your system.


RS232 Interface PCAP Touch Panel 13.3 Inch G G For POS Monitor 5
