Place of Origin:
China
Brand Name:
FINELINK
Model Number:
8061 116

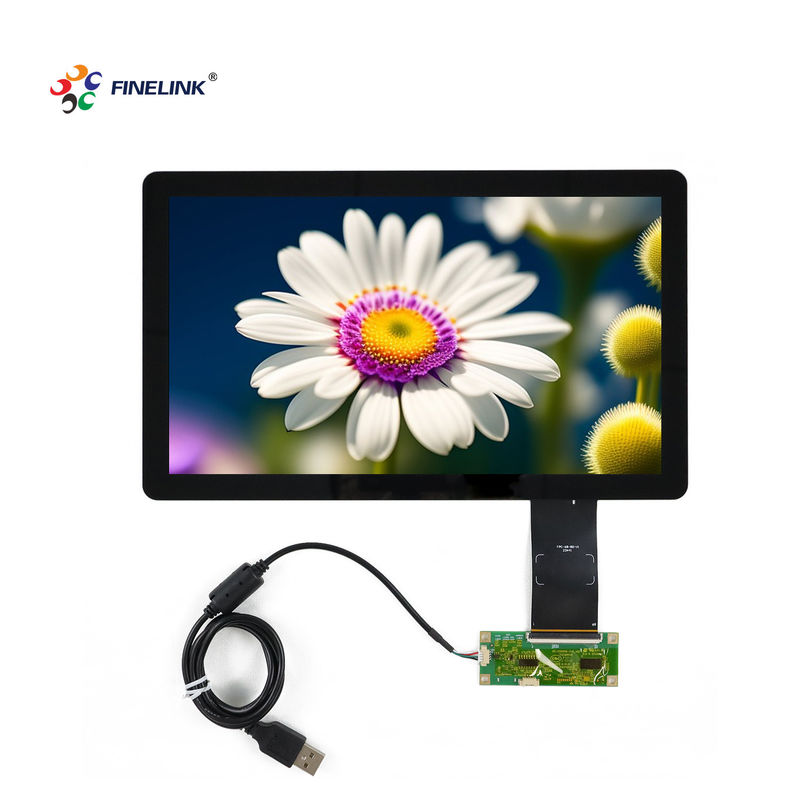

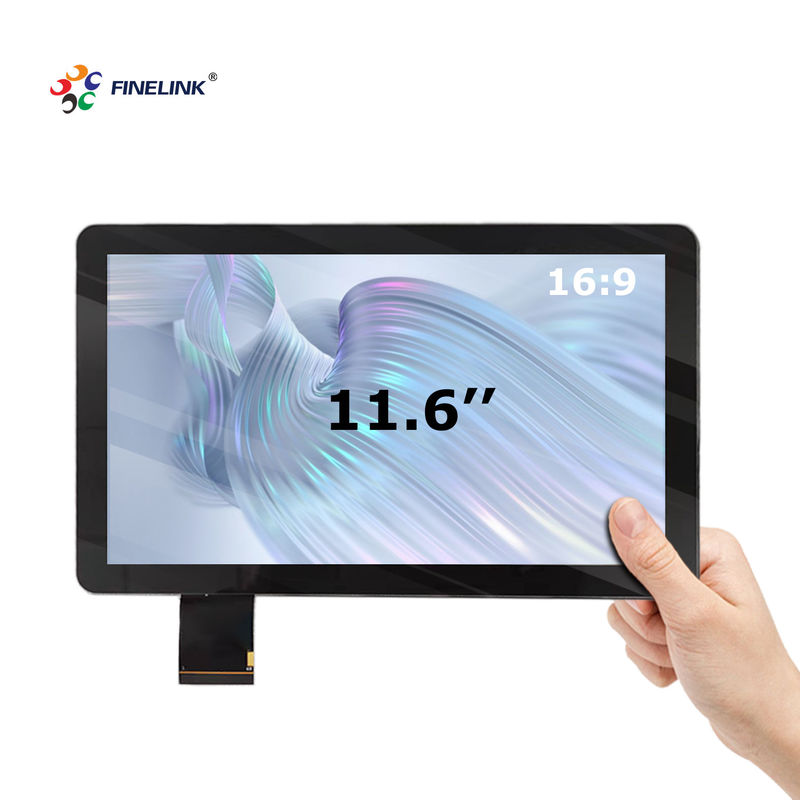

The IP65 Waterproof Finelink 11.6 Inch Capacitive Touch Screen is a robust and versatile display designed for demanding environments. With its multi-structure design, this touch screen is ideal for a variety of applications where durability and precision are paramount. Featuring IP65 waterproof protection, it ensures reliable performance in challenging conditions, making it suitable for both indoor and outdoor use.
Item
|
11.6 Inch Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

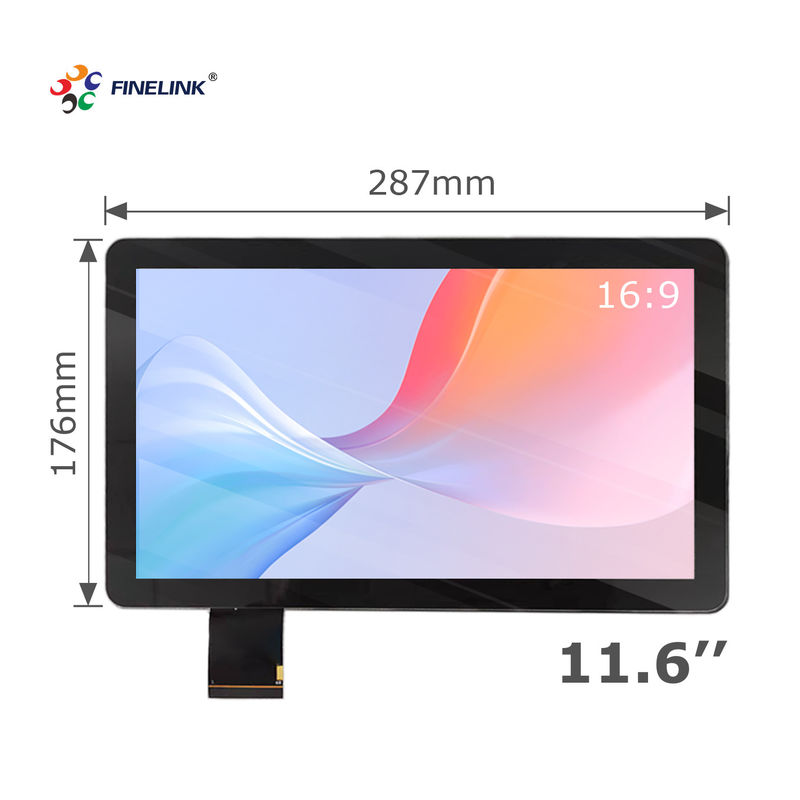

Lens OD
|
287*176mm
|
Sensor OD
|
270*159mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch screen compatible with different operating systems?
A: Yes, the touch screen is compatible with multiple operating systems, including Windows, Android, and Linux.
Q: What does IP65 rating mean?
A: The IP65 rating means the touch screen is completely protected against dust and can withstand low-pressure water jets from any direction, making it suitable for outdoor use.
Q: Can this touch screen be used in extreme temperatures?
A: Yes, the touch screen is designed to operate in a wide temperature range, making it suitable for various environments.
Q: How many touch points does this screen support?
A: The capacitive touch screen supports multi-touch functionality with multiple touch points, providing a responsive and interactive user experience.
Q: Is it possible to get a custom design for the touch screen housing?
A: Yes, we offer customization services for the touch screen housing to meet specific design and installation requirements.
Q: How is the touch screen installed?
A: The touch screen can be installed using various mounting options, including VESA mounts, panel mounts, and custom mounts as per your requirement.
