Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8066 150

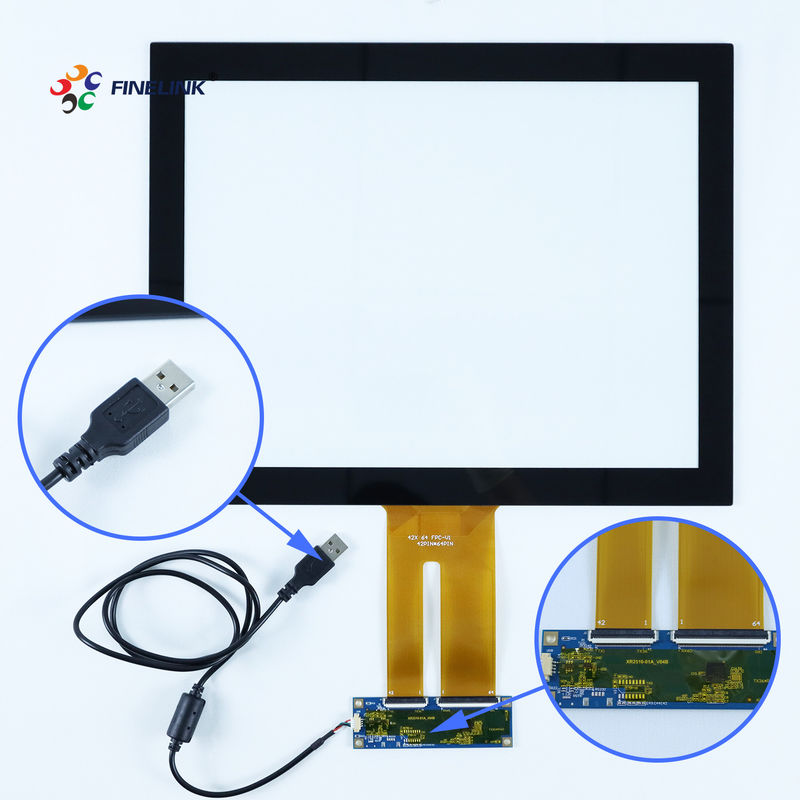

The 15 Inch USB Port EETI Projected Capacitive Touch Panel Overlay Kit is a versatile and high-performance touch solution designed for multifunctional use. With advanced EETI controller technology, this touch panel offers precise and responsive touch interaction. Its 15-inch size makes it suitable for a variety of applications, from industrial controls to interactive displays.
Item
|
15 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
4:3
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

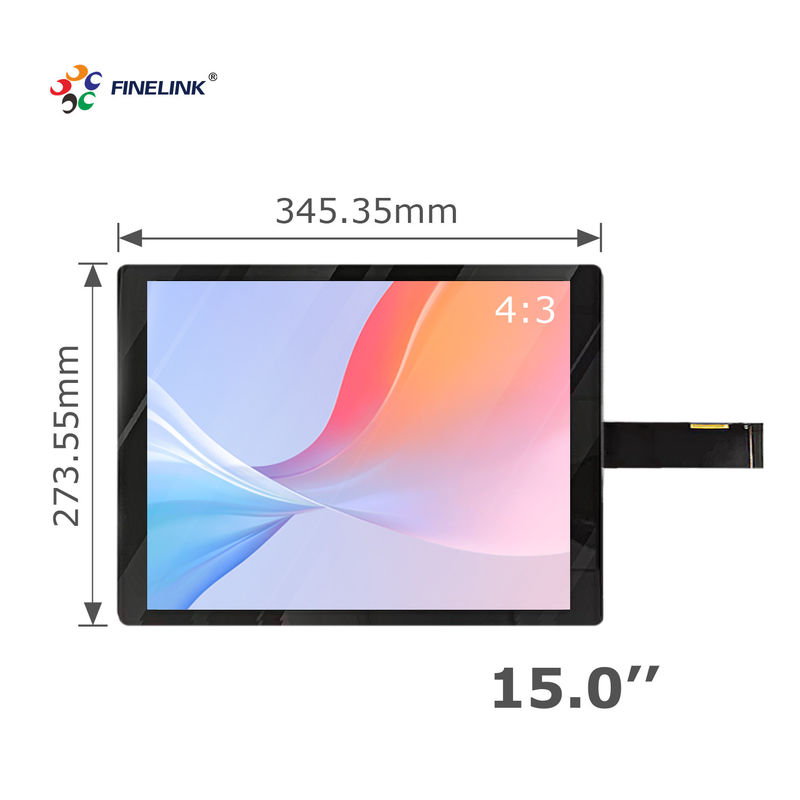

Lens OD
|
345.35*273.55mm
|
Sensor OD
|
303.99*227.99mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is the touch panel compatible with all operating systems?
A: Yes, the touch panel is compatible with multiple operating systems, including Windows, Linux, and Android.
Q: Can the touch panel be used outdoors?
A: With appropriate customizations such as waterproofing and enhanced brightness, it can be used in outdoor environments.
Q: How do I clean the touch panel?
A: The touch panel can be cleaned with a soft, damp cloth. For tougher stains, a mild detergent can be used. Avoid abrasive cleaners.
Q: What warranty is provided with the touch panel?
A: The touch panel comes with a standard one-year warranty. Extended warranty options are available upon request.
Q: Can the touch sensitivity be adjusted?
A: Yes, touch sensitivity can be adjusted to meet specific user needs and application requirements.
Q: Is technical support available for setup and integration?
A: Yes, comprehensive technical support is available to assist with setup and integration, ensuring smooth implementation of the touch panel into your system.
