Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8066 150

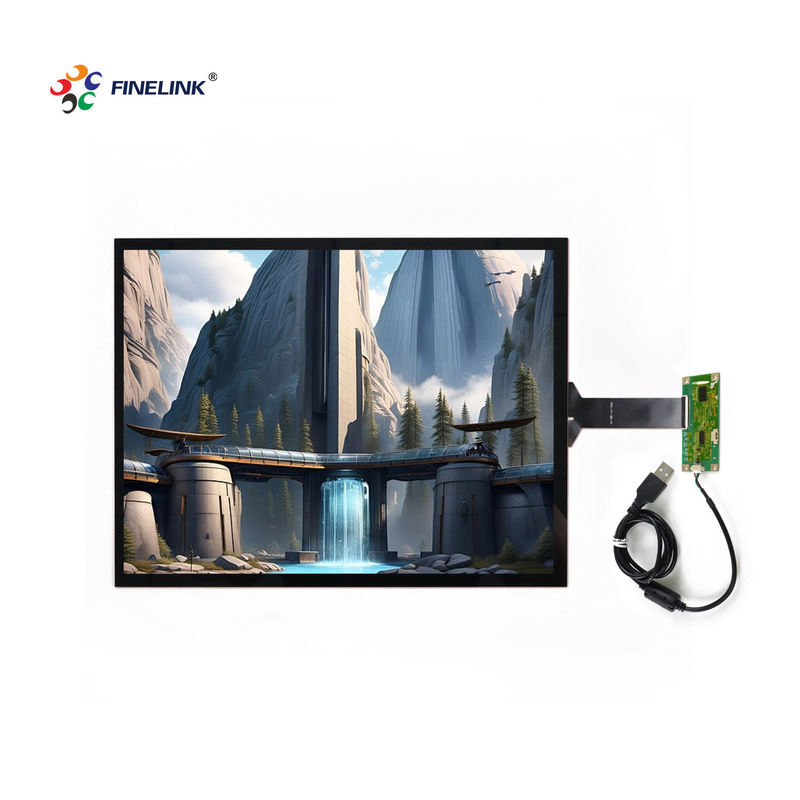

The Glass Glass LCD Capacitive Touchscreen 15.6 Inch Touch Panel is specifically designed for educational applications. This touch panel combines high durability with a sleek design, offering an exceptional interactive experience for students and educators. The capacitive touch technology ensures precise and responsive touch inputs, making it ideal for interactive learning environments.
Item
|
15 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
4:3
|
Structure
|
G+G
|
Type
|
Capacitive
|

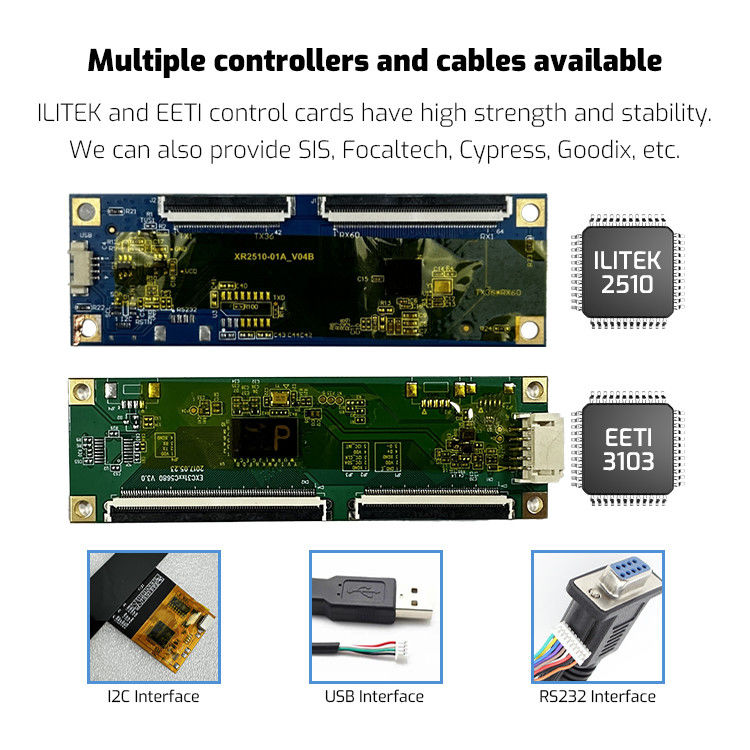

Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

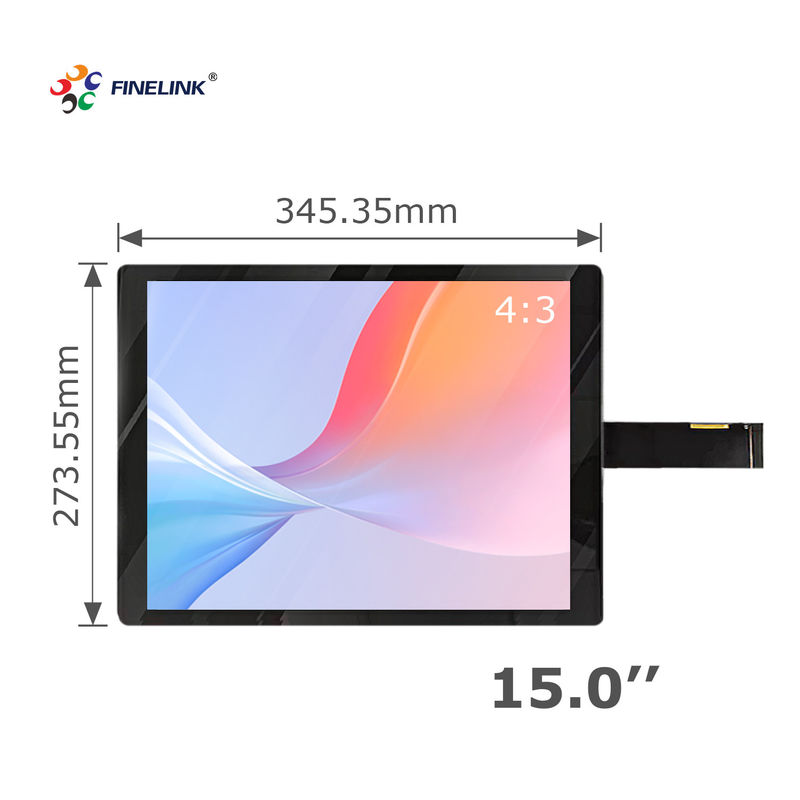

Lens OD
|
345.35*273.55mm
|
Sensor OD
|
303.99*227.99mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is the touch screen compatible with all educational software?
A: Yes, the touch screen is compatible with a wide range of educational software and operating systems, including Windows, Android, and Linux.
Q: Can this panel be used in high-traffic educational environments?
A: Yes, the durable glass-glass construction and additional protective coatings make it suitable for high-traffic educational environments.
Q: How do I connect the touch screen panel to my existing setup?
A: The panel comes with a USB connection cable, and other interface options like RS232 and I2C are available for easy integration.
Q: What warranty is provided with this product?
A: The product comes with a standard one-year warranty, with options for extended warranties to provide additional peace of mind.
Q: Can the touch sensitivity be adjusted for different educational activities?
A: Yes, the touch sensitivity can be customized to meet the specific needs of different educational activities and user preferences.
Q: Is technical support available for installation and setup?
A: Yes, comprehensive technical support is available to assist with installation, setup, and integration, ensuring a smooth and hassle-free experience.
