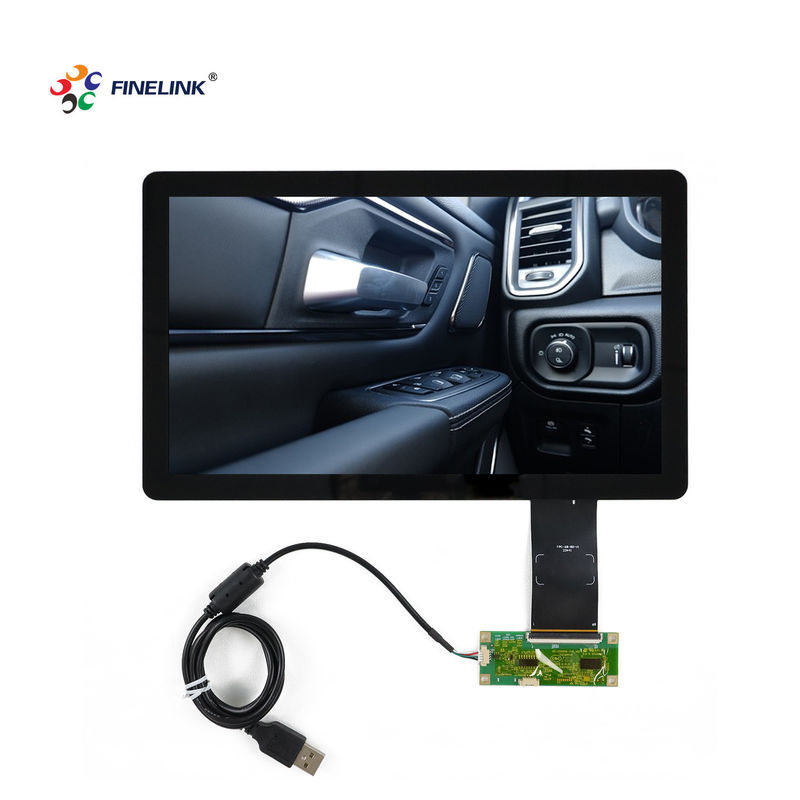

11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm

11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm

I2C PCAP Touch Panel

287mm PCAP Touch Panel

I2C Interface Capacitive Touchscreens

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8061 116

Contact Us
Request A Quote
Product Details
Features:
IK10, Waterproof IP65
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
11.6 Inch
Width:
287mm
Drive IC:
EETI/ILIEK/SIS
Product Name:
11.6 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

I2C PCAP Touch Panel

,

287mm PCAP Touch Panel

,

I2C Interface Capacitive Touchscreens

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$13.84/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Product Description

The 11.6 inch I2C Interface Capacitive Touchscreen PCAP Touch Panel is designed for high-performance touch applications. With a width of 287mm, this touchscreen panel offers precise touch accuracy and responsiveness, making it ideal for various industrial and commercial applications. The integration of I2C interface ensures smooth and efficient connectivity with different systems, enhancing user experience and operational efficiency.

Item
11.6 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB

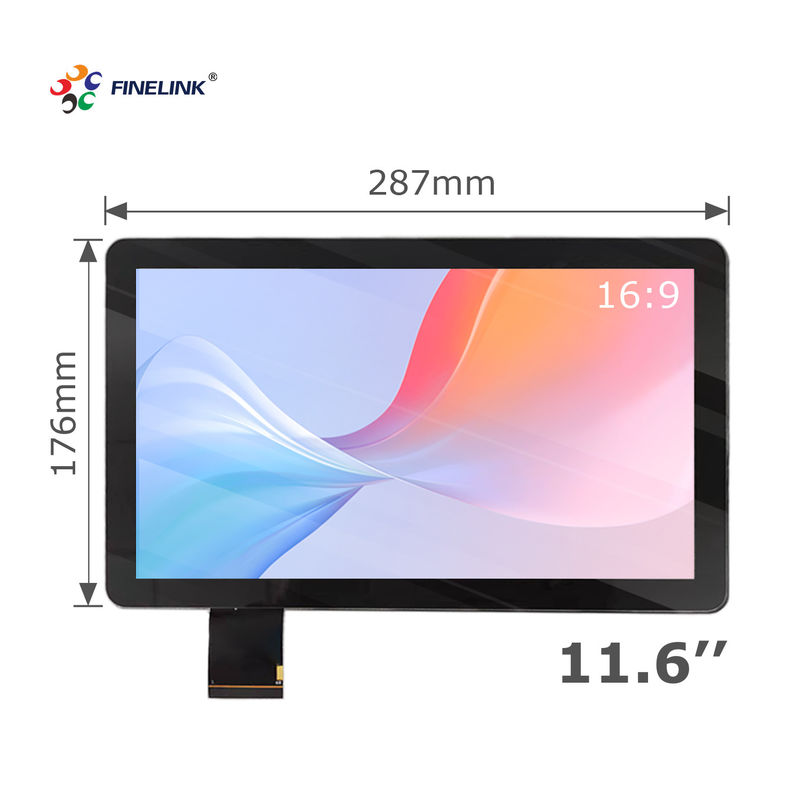

Lens OD
287*176mm
Sensor OD
270*159mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Projected Capacitive (PCAP) Technology: Provides highly accurate and responsive multi-touch capabilities, supporting up to 10 touch points.
  • I2C Interface: Ensures seamless integration with a wide range of devices and systems, offering efficient communication and data transfer.
  • Durable Construction: Built with robust materials to withstand demanding environments, ensuring long-lasting performance.
  • Wide Compatibility: Compatible with various operating systems, including Windows, Android, and Linux.
  • Optimal Dimensions: With a width of 287mm, the panel is suitable for a variety of display sizes and configurations.
  • Enhanced Clarity: Provides clear and sharp visuals, enhancing user interaction and experience.

11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm 0

Application Scenarios

  • Industrial Automation: Ideal for use in industrial control panels, machinery interfaces, and automated systems.
  • Commercial Displays: Suitable for digital signage, interactive kiosks, and retail point-of-sale systems.
  • Medical Equipment: Perfect for medical devices that require precise and reliable touch input.
  • Consumer Electronics: Can be integrated into tablets, laptops, and other personal electronic devices.
  • Transportation Systems: Useful for ticketing kiosks, information displays, and navigation systems in public transportation hubs.

11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm 1

Customization Services

  • Interface Customization: Options to customize the I2C interface to meet specific connectivity requirements.
  • Touch Sensitivity Adjustment: Customizable touch sensitivity settings to suit different application needs.
  • Branding Options: Custom branding available on the touch panel and packaging to align with your company’s identity.
  • Environmental Resistance Enhancements: Additional options for enhanced waterproofing, dustproofing, and anti-glare coatings.
  • Form Factor Adjustments: Customizable dimensions and mounting solutions to fit specific enclosure designs.
11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm 2
11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm 3
11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm 4

Packaging and Shipping

  • Secure Packaging: Each unit is packaged securely to prevent damage during transit.
  • Custom Packaging Options: Available for custom packaging to match your brand and product presentation needs.
  • Efficient Shipping: Reliable and timely shipping options to ensure prompt delivery worldwide.
  • Eco-Friendly Materials: Use of environmentally friendly packaging materials to minimize environmental impact.

FAQ

Q: Is this touchscreen panel compatible with all operating systems?
A: The touchscreen panel is compatible with a variety of operating systems, including Windows, Android, and Linux.

Q: Can this panel be used in outdoor environments?
A: While it is durable, additional environmental resistance enhancements can be added for outdoor use.

Q: How do I clean the touchscreen panel?
A: The panel can be cleaned with a soft, damp cloth. For tougher stains, a mild detergent can be used. Avoid using abrasive cleaners.

Q: What is the warranty period for this product?
A: The product comes with a standard one-year warranty. Extended warranty options are available upon request.

Q: Can the touch sensitivity be adjusted?
A: Yes, the touch sensitivity can be adjusted to meet specific user needs and application requirements.

Q: Is technical support available for integration and setup?
A: Yes, comprehensive technical support is available to assist with integration and setup, ensuring smooth implementation into your system.

11.6 inch I2C Interface Capacitive Touchscreens PCAP Touch Panel Width 287mm 5
