11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen

11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen

11.6 Inch Waterproof Touchscreen

USB Waterproof Touchscreen

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8061 116

Contact Us
Request A Quote
Product Details
Features:
IK10, Waterproof IP65
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
11.6 Inch
Width:
287mm
Drive IC:
EETI/ILIEK/SIS
Product Name:
11.6 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

11.6 Inch Waterproof Touchscreen

,

USB Waterproof Touchscreen

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$13.84/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Product Description

Product Description

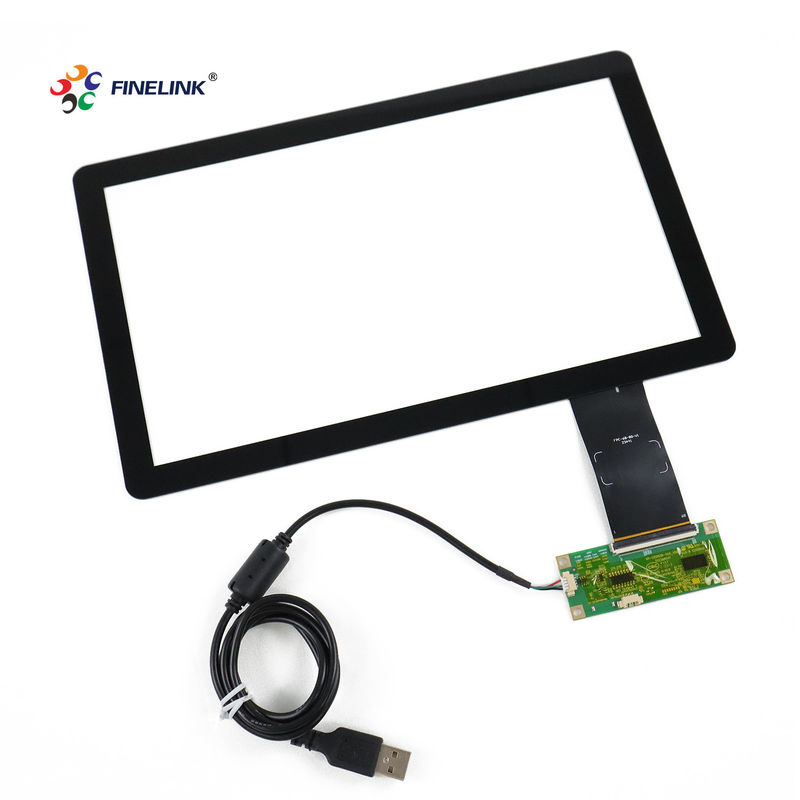

The 11.6 Inch PCAP Glass Capacitive Touchscreen with USB Port is designed for environments where precision and durability are paramount. Featuring advanced Projected Capacitive (PCAP) technology, this touchscreen offers seamless multi-touch capabilities and exceptional responsiveness. Its waterproof design ensures reliability in various settings, from industrial to commercial applications.

Item
11.6 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB

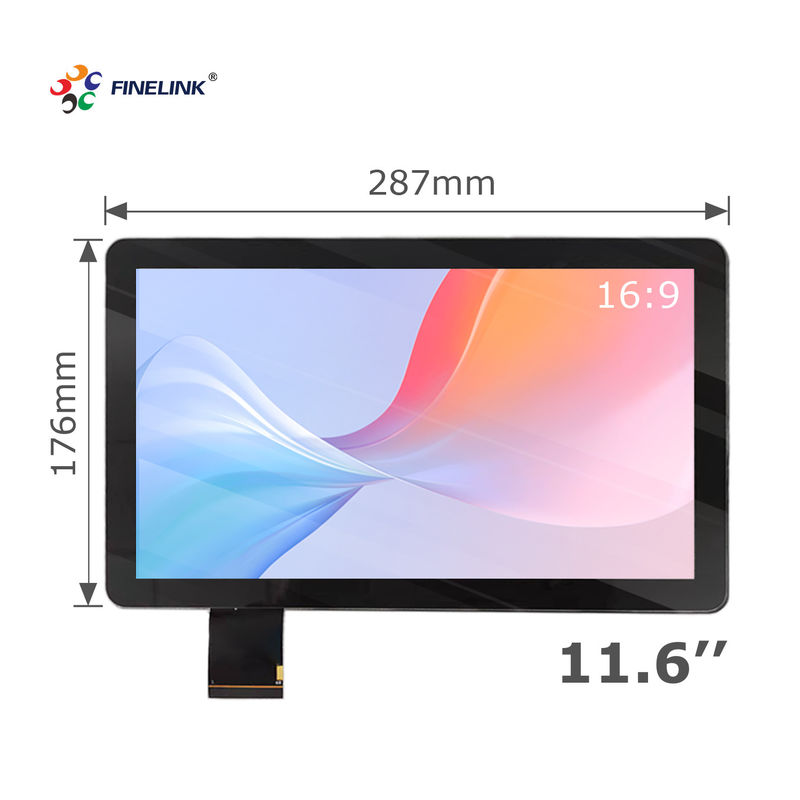

Lens OD
287*176mm
Sensor OD
270*159mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Projected Capacitive (PCAP) Technology: Delivers high accuracy and responsiveness with support for multi-touch gestures.
  • Waterproof Design: Engineered to withstand moisture and liquids, making it ideal for challenging environments.
  • USB Port: Ensures easy connectivity and compatibility with a wide range of devices.
  • Durable Glass Surface: Provides robust protection against scratches and impacts, ensuring long-term use.
  • Sleek and Modern Design: Enhances the aesthetic appeal of any installation with its sleek glass surface.
  • Wide Viewing Angles: Ensures clear visibility from different angles, making it perfect for public and shared spaces.

11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen 0

Application Scenarios

  • Industrial Control Systems: Perfect for use in factory settings where durable and responsive touch interfaces are required.
  • Outdoor Kiosks: Ideal for outdoor information and service kiosks due to its waterproof capabilities.
  • Medical Devices: Suitable for integration into medical equipment that demands reliable and hygienic touch interfaces.
  • Retail and Hospitality: Excellent for point-of-sale systems, self-service terminals, and interactive displays in retail and hospitality industries.
  • Transportation: Useful in ticketing and information kiosks at airports, train stations, and bus terminals.

11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen 1

Customization Services

  • Interface Customization: Tailor the connectivity options to meet specific application needs.
  • Touch Sensitivity Adjustment: Customizable touch sensitivity settings to suit different usage scenarios.
  • Branding Options: Custom branding available for both the touch panel and packaging.
  • Environmental Enhancements: Additional options for enhanced waterproofing, dustproofing, and anti-glare coatings.
  • Form Factor Adjustments: Customizable dimensions and mounting solutions to fit specific installation requirements.
11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen 2
11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen 3
11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen 4

Packaging and Shipping

  • Secure Packaging: Each unit is securely packaged to prevent damage during shipping.
  • Custom Packaging Options: Available for custom packaging solutions to align with your brand and product presentation.
  • Efficient Shipping: Reliable and timely shipping options to ensure prompt delivery worldwide.
  • Eco-Friendly Materials: Use of environmentally friendly packaging materials to minimize environmental impact.

FAQ

Q: Is this touchscreen compatible with all operating systems?
A: Yes, it is compatible with various operating systems, including Windows, Android, and Linux.

Q: Can this touchscreen be used outdoors?
A: Yes, its waterproof design makes it suitable for outdoor use.

Q: How should I clean the touchscreen panel?
A: Use a soft, damp cloth for cleaning. For tougher stains, a mild detergent can be used. Avoid abrasive cleaners.

Q: What is the warranty period for this product?
A: The product comes with a standard one-year warranty, with extended warranty options available upon request.

Q: Can the touch sensitivity be adjusted?
A: Yes, the touch sensitivity can be customized to meet specific application needs.

Q: Is technical support available for setup and integration?
A: Yes, comprehensive technical support is available to assist with setup and integration, ensuring smooth implementation.

11.6 Inch Pcap Glass Capacitive With USB Port Waterproof Touchscreen 5
