Place of Origin:
Guangdong, China
Brand Name:
FINELINK

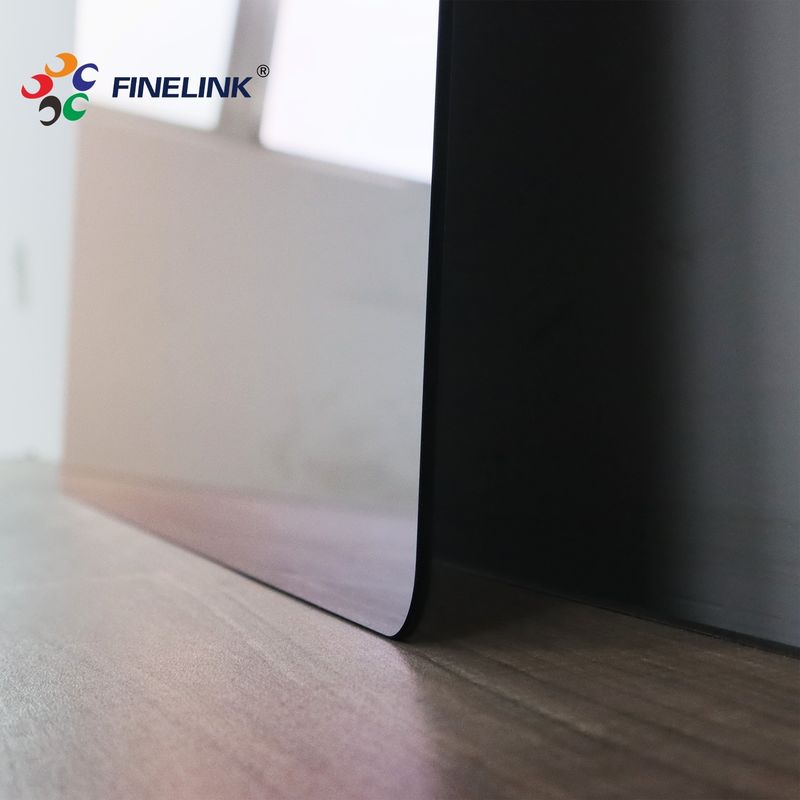

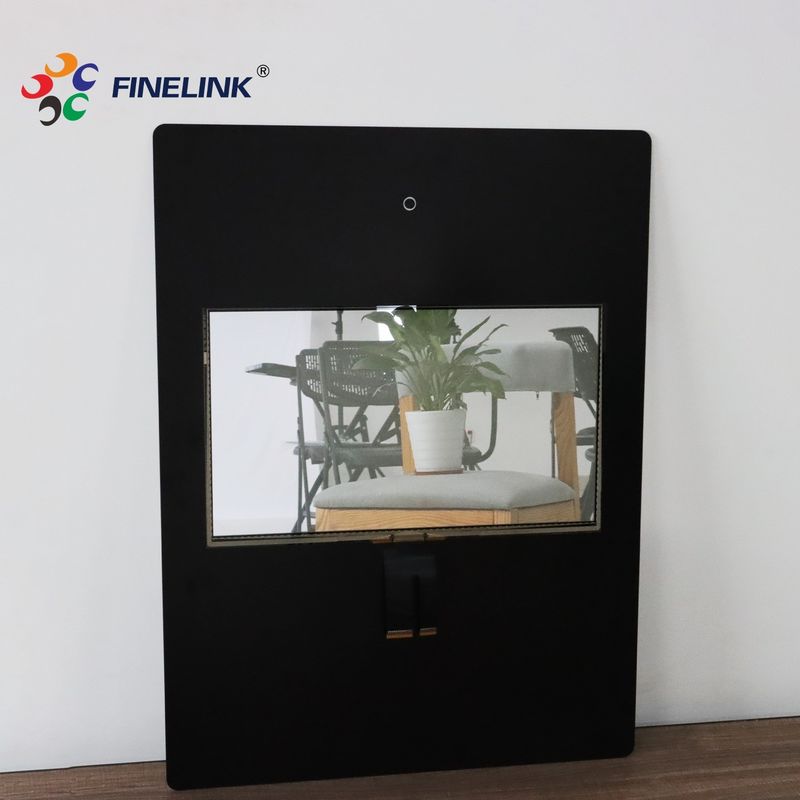

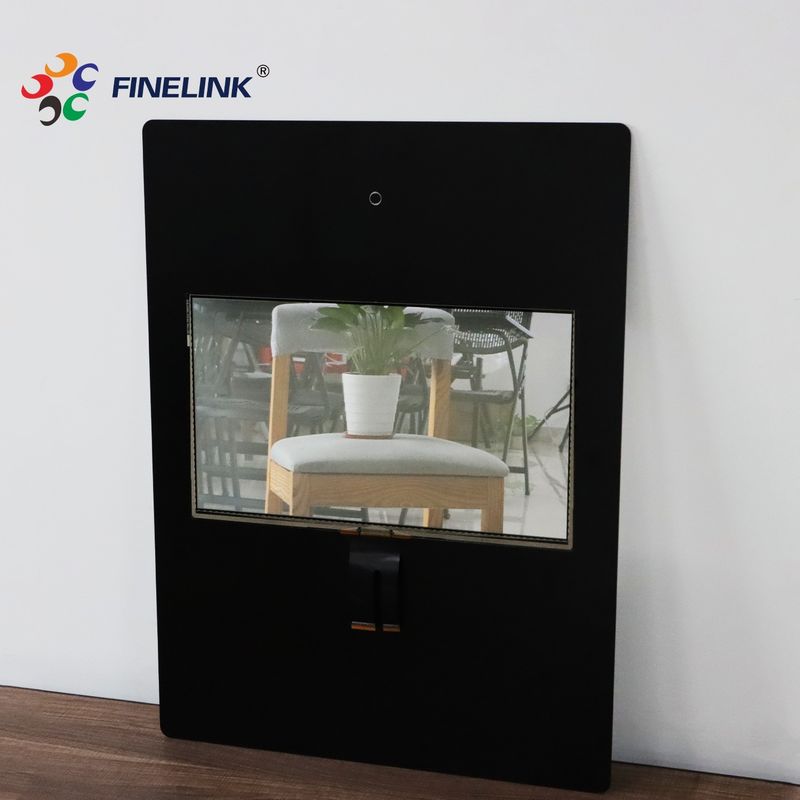

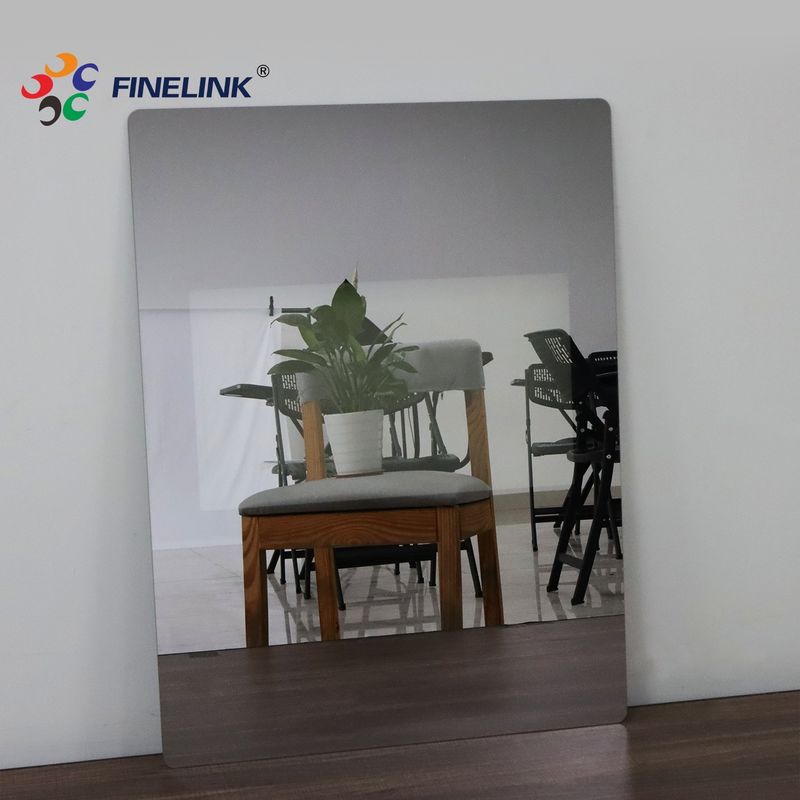

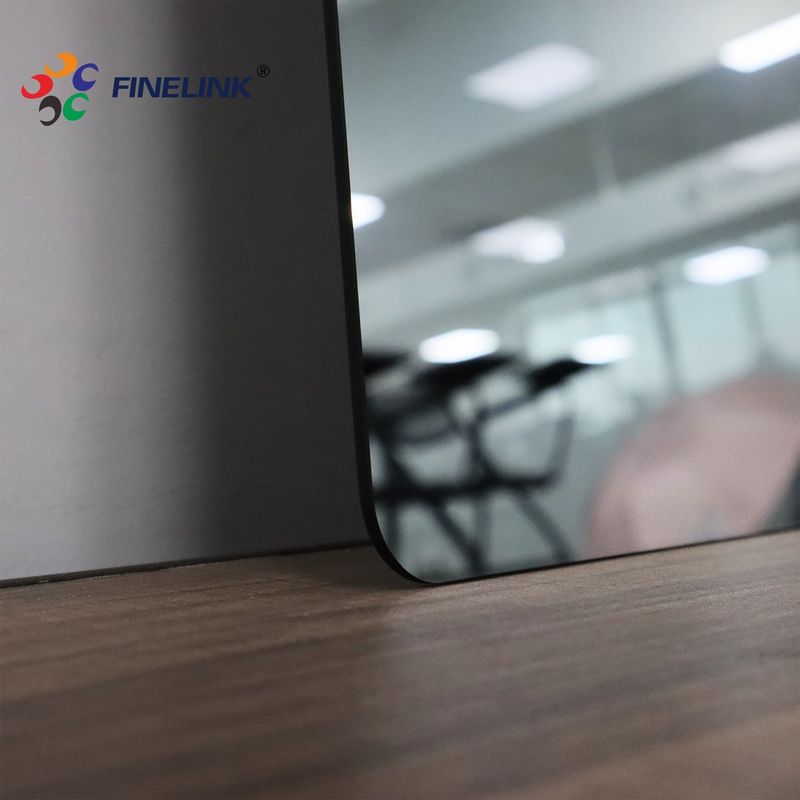

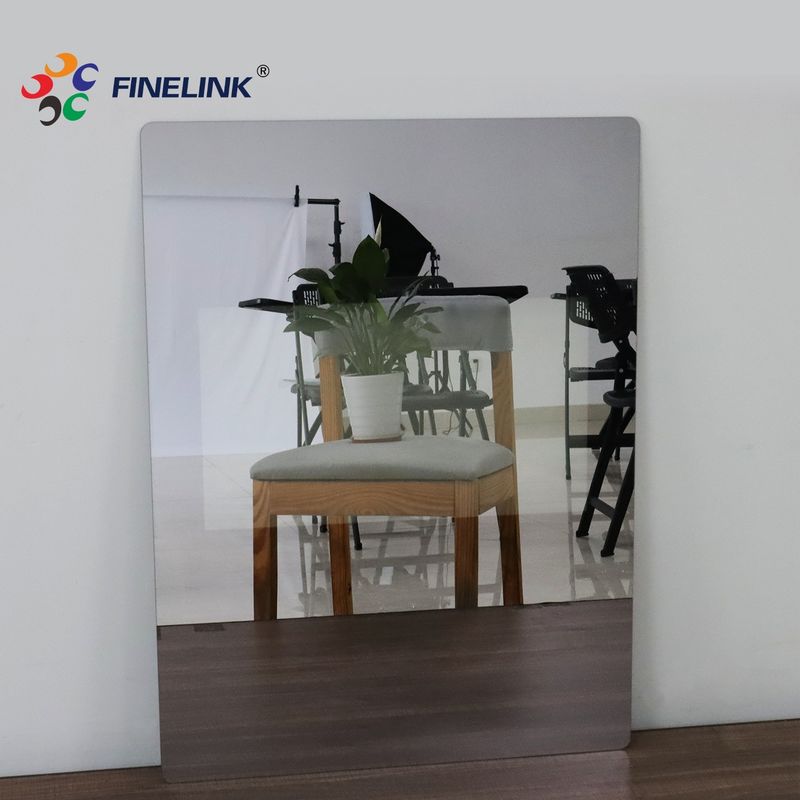

The 21.5 Inch Mirror Touch Screen Capacitive Touch Screen Panel OEM combines the functionality of a capacitive touch screen with the aesthetic appeal of a mirror surface. This innovative product offers both interactive touch capabilities and a sleek mirror design, making it ideal for a variety of applications.
Item
|
21.5 inch capacitive touch panel
|
---|---|
Ratio
|
16:10
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
800*600mm
|
Sensor OD
|
493*287mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃~+60℃
|
Interface Type
|
USB,RS232,I2C
|
Color
|
Black,White,Transparent,colors optional
|
Customized
|
AG/AG/AF/AM/AH/Waterproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,medical,banking,consumer,military,education,HMI....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is the mirror touch screen durable?
A: Yes, the mirror touch screen is designed to be durable and resistant to scratches, ensuring long-lasting usability.
Q: Can the mirror touch screen be used in outdoor environments?
A: While the mirror touch screen is suitable for indoor use, special outdoor models with weatherproofing features can be provided upon request.
Q: Can I customize the size and shape of the mirror touch screen?
A: Yes, we offer customization options for size and shape to meet specific installation requirements and design preferences.
Q: Does the mirror touch screen support multi-touch gestures?
A: Yes, the capacitive touch screen panel supports multi-touch gestures for intuitive control and interaction.
Q: Can additional features like cameras or speakers be integrated into the mirror touch screen?
A: Yes, we offer integration services for additional features to enhance the functionality of the mirror touch screen according to specific requirements.
