Place of Origin:
Guangdong, China
Brand Name:
FINELINK

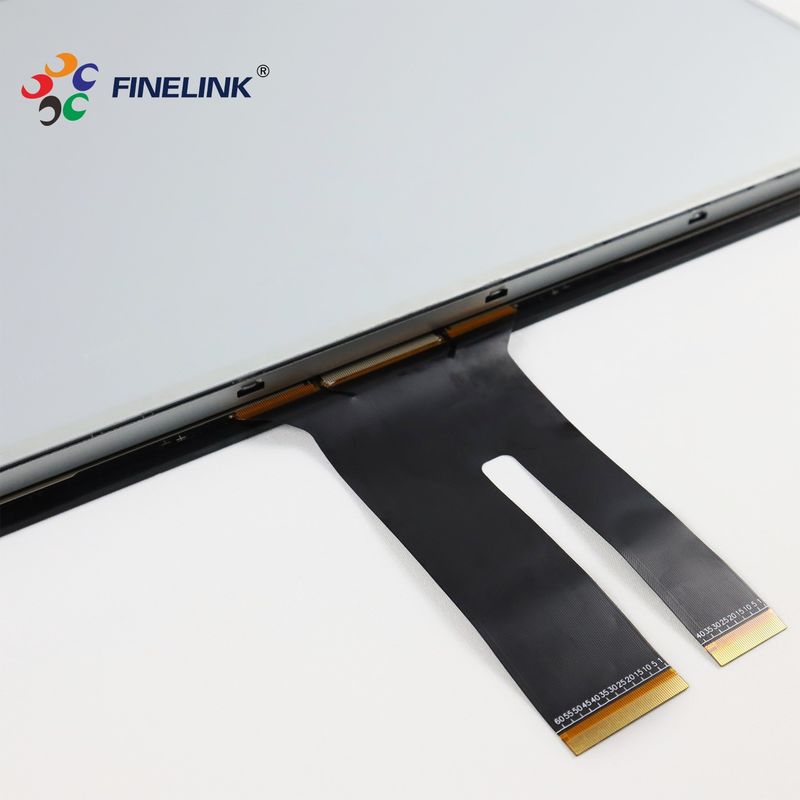

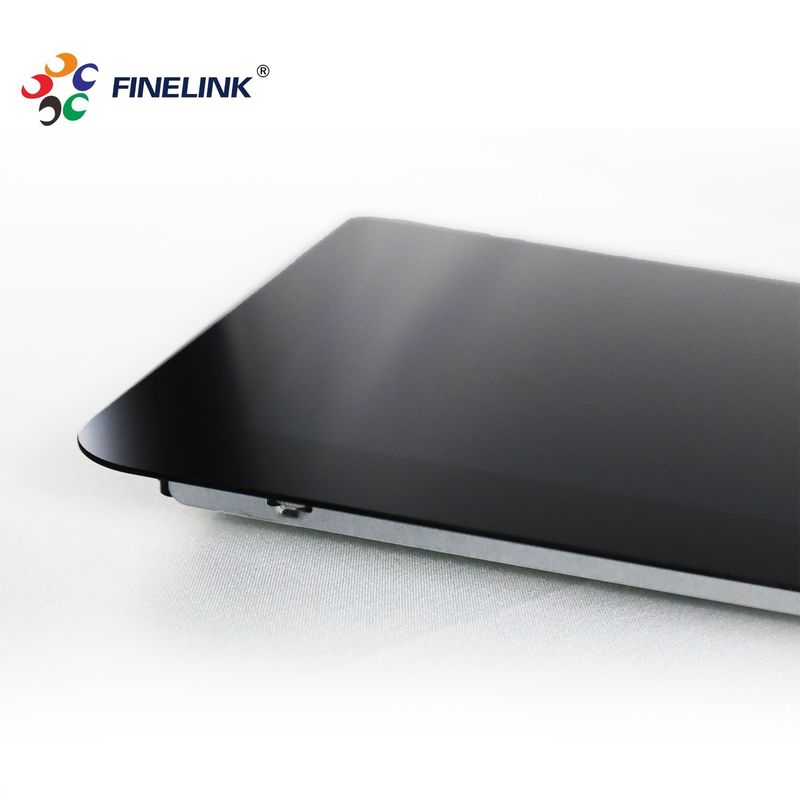

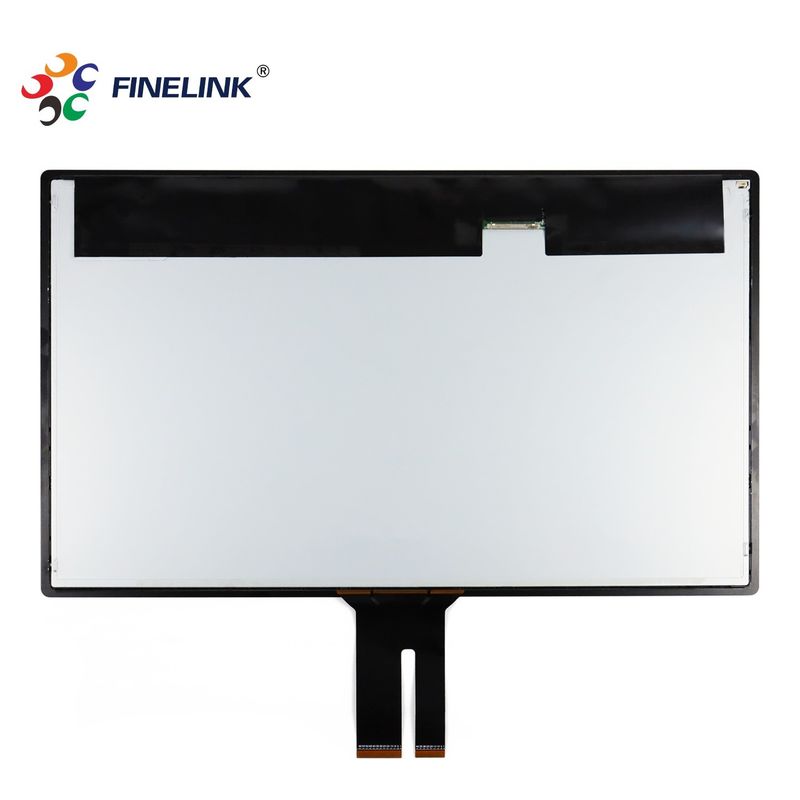

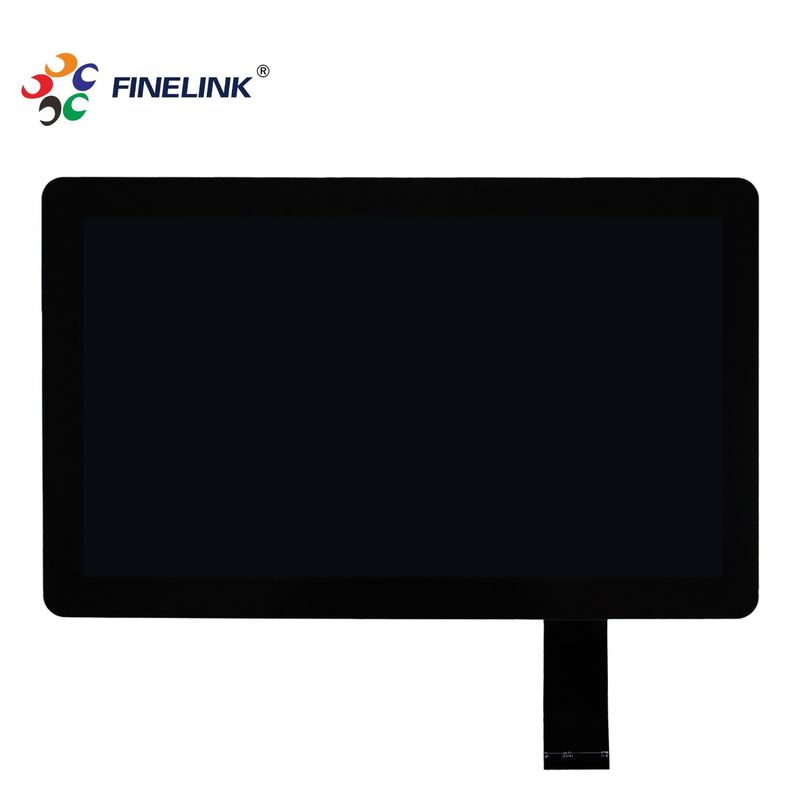

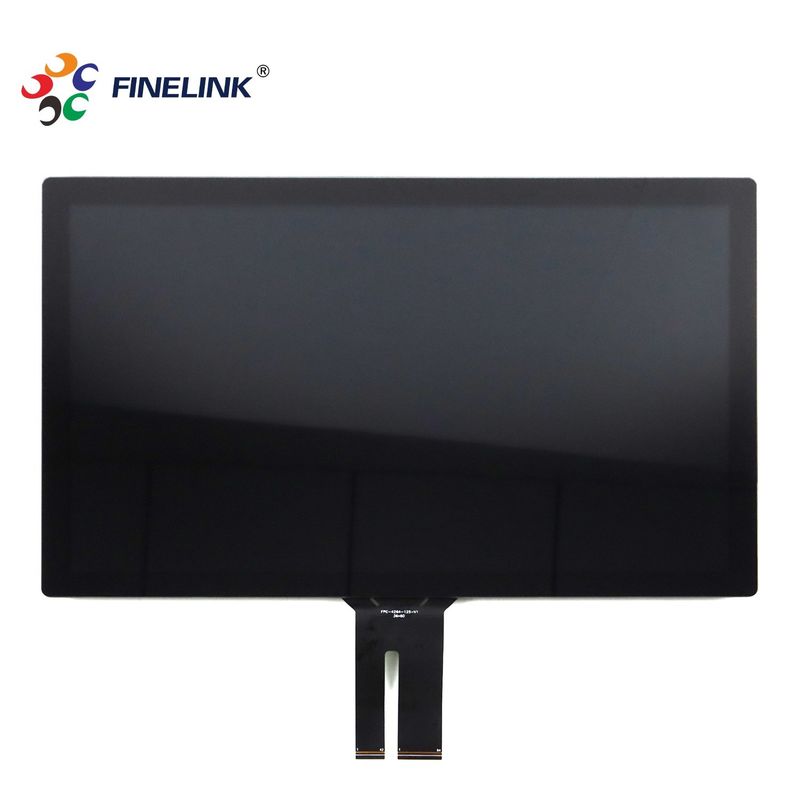

The Black Middle-Large Size Touch Panel Plus LCM Optical Bonding Display combines a capacitive touch panel with a liquid crystal display (LCM) that features optical bonding technology. This innovative solution offers enhanced visual clarity, durability, and touch sensitivity, making it ideal for various applications.
Item
|
7''~84'' Optical Bonding
|
---|---|
Protective Layer
|
Glass/PMMA/Touch Panel
|
Display Type
|
Open Cell/TFT/LCD
|
Glue Brand
|
Wacker/Dupont/3M/Mitsubishi
|
Structure
|
G+G/G+FF
|
Touch controller
|
EETI/ILITEK/SIS/Goodix...
|
Interface Type
|
USB,RS232,I2C
|
Connection
|
COB/COF
|
Surface hardness
|
≥7H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-30℃~+80℃
|
Color
|
Black,White,Transparent,colors optional
|
Customized
|
AG/AG/AF/AM/AH/Waterproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,medical,banking,consumer,military,education,HMI....
|
Warranty
|
12 Months(3 years maximum)
|
Q: What is the advantage of optical bonding technology?
A: Optical bonding technology reduces reflections and glare, enhances durability, and improves visual clarity by eliminating air gaps between the touch panel and the display.
Q: Is this touch panel compatible with gloves or styluses?
A: Yes, the capacitive touch panel supports touch input from gloved hands or styluses, providing flexibility for various user scenarios.
Q: Can this display be used outdoors in direct sunlight?
A: While the optical bonding reduces glare and reflections, direct sunlight may still affect visibility. It is recommended to use shading or anti-glare treatments for outdoor installations.
Q: What are the power requirements for this touch panel plus LCM display?
A: The power requirements vary depending on the specific model and configuration. Please refer to the product specifications for detailed information.
Q: Can the touch panel be calibrated if needed?
A: Yes, the touch panel can be calibrated using calibration software provided with the display or through the device settings on your computer or device.
Q: Does this display support multi-touch gestures?
A: Yes, the capacitive touch panel supports multi-touch gestures, allowing for pinch-to-zoom, swipe, and other gestures for intuitive interaction.
