Place of Origin:
Guangdong, China
Brand Name:
FINELINK

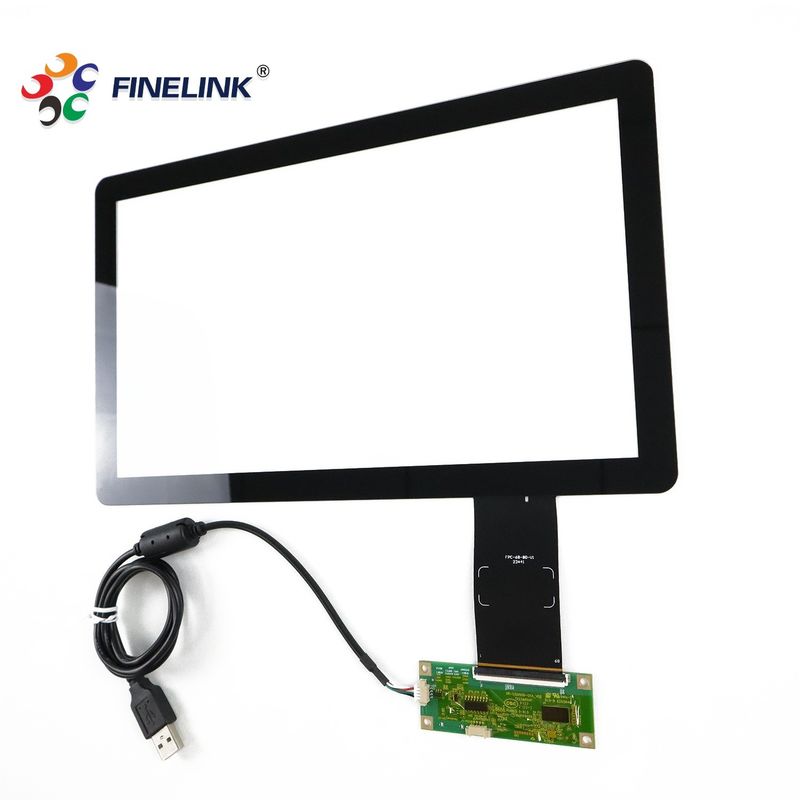

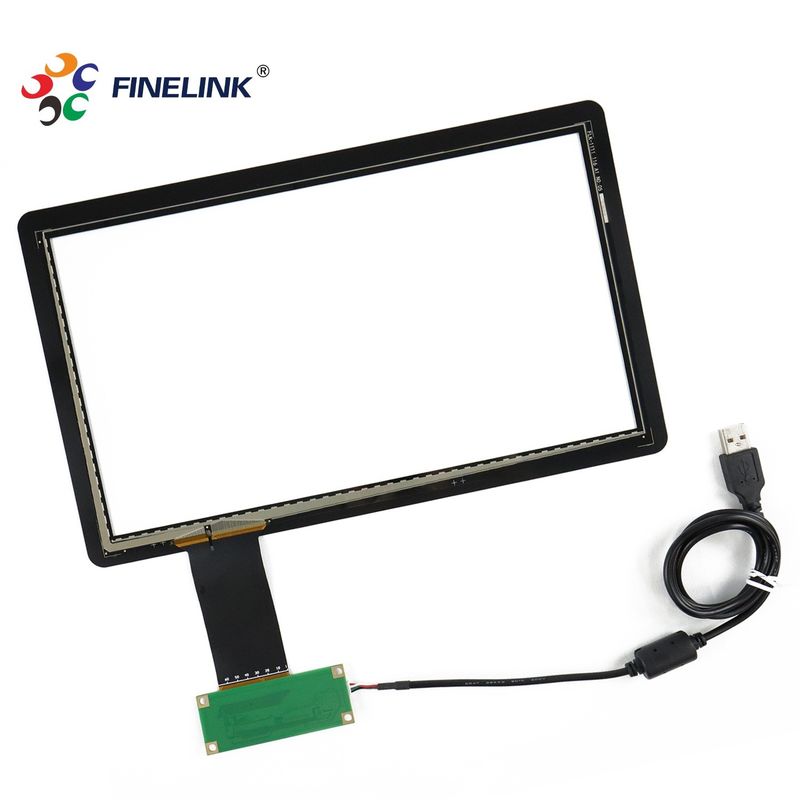

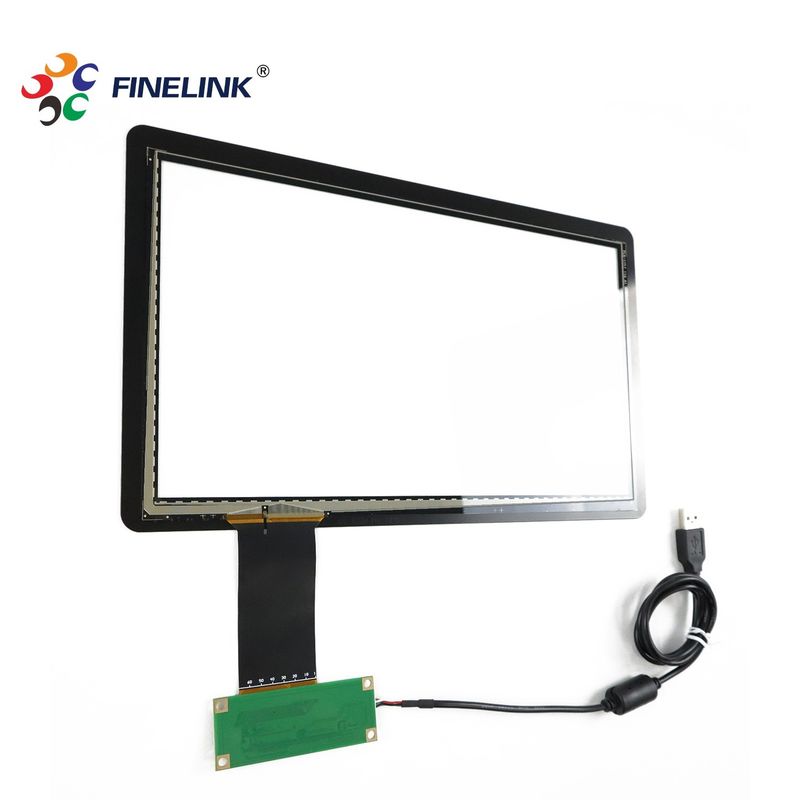

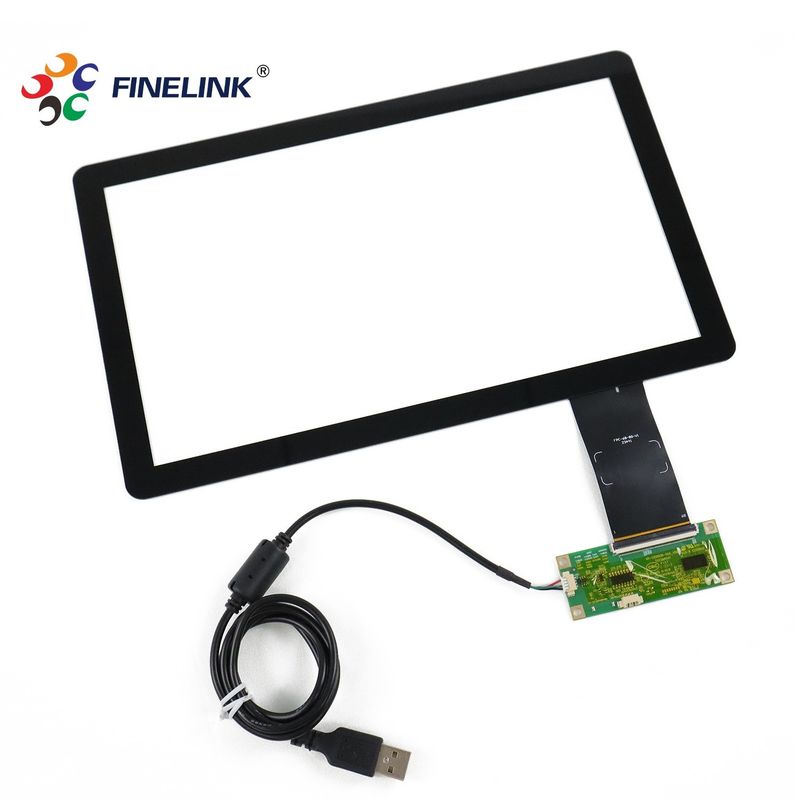

The Industrial LCD Multi Touch Display is an 11.6-inch PCAP capacitive touchscreen monitor designed for industrial applications. Featuring an I2C interface and customizable OEM options, this display delivers high performance and durability in demanding environments. Its advanced multi-touch capabilities and robust construction make it ideal for various industrial settings.
Item
|
11.6 inch capacitive touch panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
287*176mm
|
Sensor OD
|
270*159mm
|
Cover glass(T)
|
2mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃~+60℃
|
Interface Type
|
USB,RS232,I2C
|
Color
|
Black,White,Transparent,colors optional
|
Customized
|
AG/AG/AF/AM/AH/Waterproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,medical,banking,consumer,military,education,HMI....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this display compatible with all operating systems?
A: Yes, the display is compatible with a wide range of operating systems, including Windows, Linux, and Android.
Q: How do I clean and maintain the touch screen?
A: The touch screen can be cleaned with a soft, lint-free cloth. For tougher stains, a mild cleaning solution can be used. Avoid abrasive materials and harsh chemicals.
Q: Can the display be used in extreme temperatures?
A: Yes, the display is designed to operate in a wide temperature range, typically from -20°C to 70°C, making it suitable for various industrial environments.
Q: What kind of warranty is provided?
A: We offer a standard one-year warranty, with options to extend the warranty period based on your needs.
Q: Is technical support available for integration?
A: Yes, we provide comprehensive technical support to assist with the integration and setup of the display in your systems.
Q: Can the touch functionality be customized?
A: Yes, we offer customization options for touch functionality to meet specific application requirements, including gesture recognition and touch sensitivity adjustments.
