Place of Origin:
Guangdong, China
Brand Name:
FINELINK

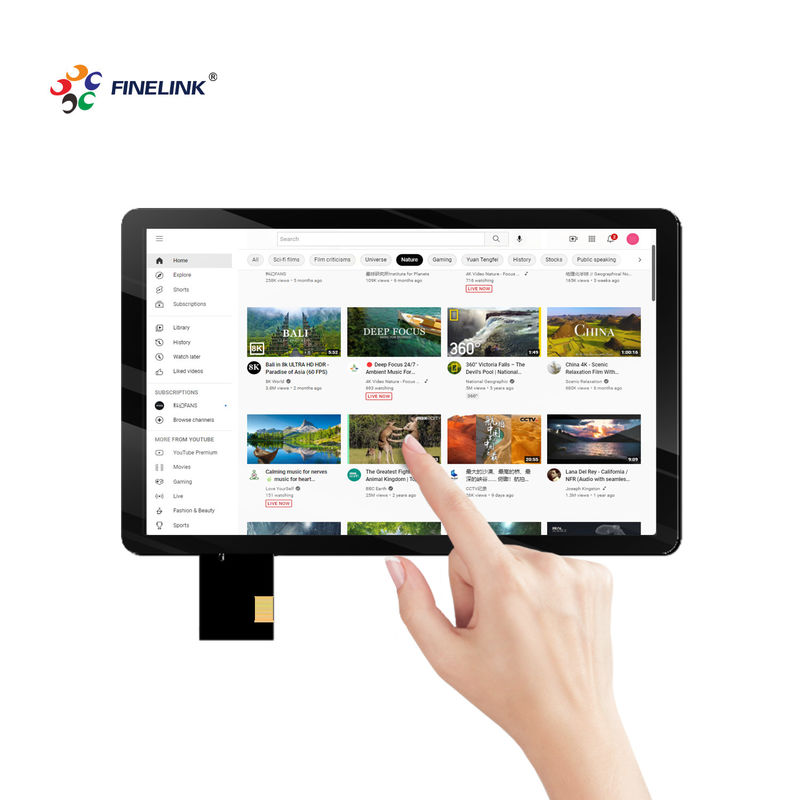

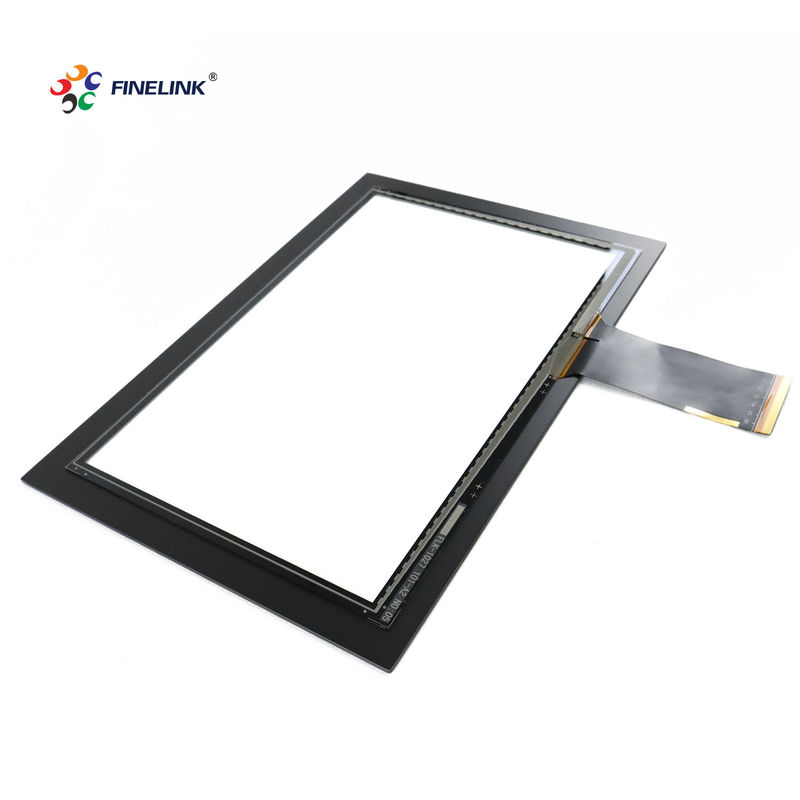

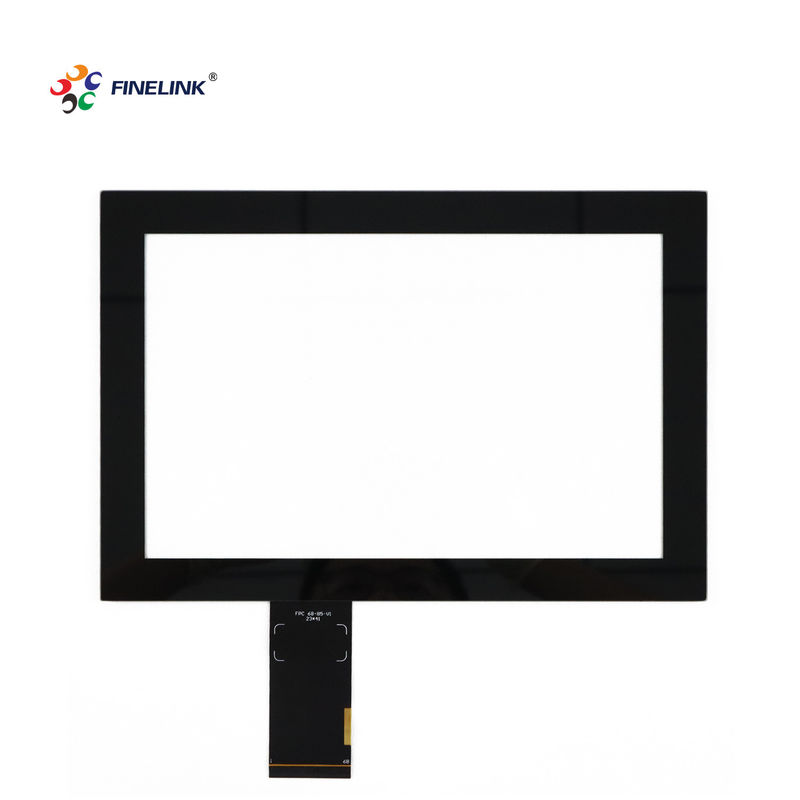

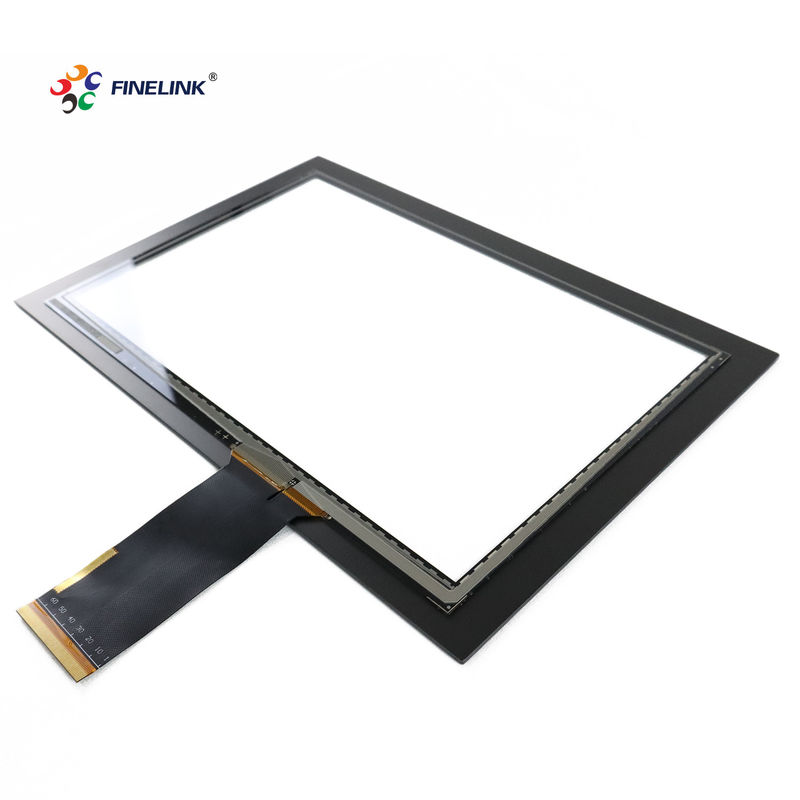

The USB Interface Multi Touch Screen Monitor is a high-performance display solution featuring a Glass+Glass capacitive touch screen. Designed for OEM applications, this monitor offers robust and reliable touch functionality, ideal for a wide range of commercial and industrial uses. Its sleek and durable design ensures longevity and excellent touch accuracy.
Item
|
PCAP 15 15.6 17 18.5 19 19.5 23.6 23.8 24 27 32 43 55 inch Large I2C PCAP Capacitive Touch Switch Screen Panel
|
---|---|
Ratio
|
5:4/4:3/16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Cover glass(T)
|
1.1/2/3/4/5/6 mm
|
SENSOR(T)
|
0.7/1.1 mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃~+60℃
|
Interface Type
|
USB,RS232,I2C
|
Color
|
Black,White,Transparent,colors optional
|
Customized
|
AG/AG/AF/AM/AH/Waterproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,medical,banking,consumer,military,education,HMI....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is the monitor compatible with both Windows and Mac operating systems?
A: Yes, the monitor is fully compatible with both Windows and Mac operating systems, offering seamless plug-and-play functionality.
Q: How many touch points does this monitor support?
A: The monitor supports up to 10 touch points, providing a responsive and interactive user experience.
Q: Can the touch sensitivity be adjusted?
A: Yes, touch sensitivity can be adjusted to meet the specific needs of your application, ensuring optimal performance.
Q: What kind of customization options are available?
A: Customization options include screen size and resolution, enclosure and bezel design, touch sensitivity, and additional features like anti-glare coating and tempered glass.
Q: What is the typical lead time for orders?
A: The lead time for orders depends on the level of customization required but generally ranges from 4 to 6 weeks.
Q: How is the product packaged to ensure it arrives safely?
A: The product is securely packaged with protective materials to prevent damage during shipping, ensuring it arrives in excellent condition. Custom branding on the packaging is also available.
