Place of Origin:
Guangdong, China
Brand Name:
FINELINK
The G G EETI/ILITEK 10.1 Inch Capacitive PCAP Touch Panel is a high-performance touch solution designed for touch monitors and displays. With its advanced capacitive touch technology and durable G G (Glass-to-Glass) construction, this touch panel delivers precise and responsive touch input for enhanced user interaction.
Item
|

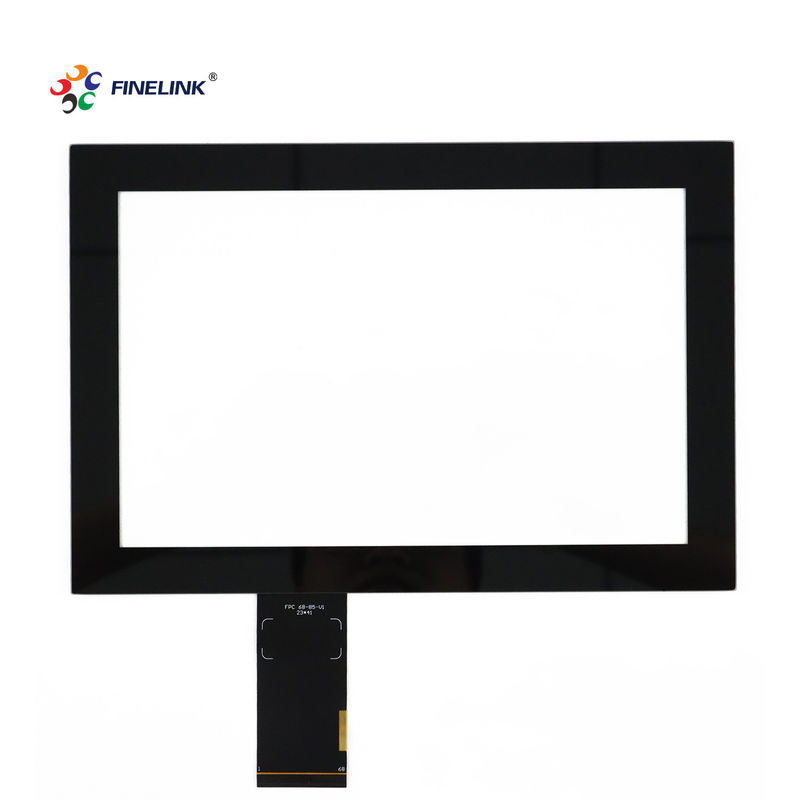

10.1 Inch G+G EETI/ILITEK Capacitive Touch Panel for Touch Monitor/All-in-One PC
|
---|---|
Ratio
|
16:10
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

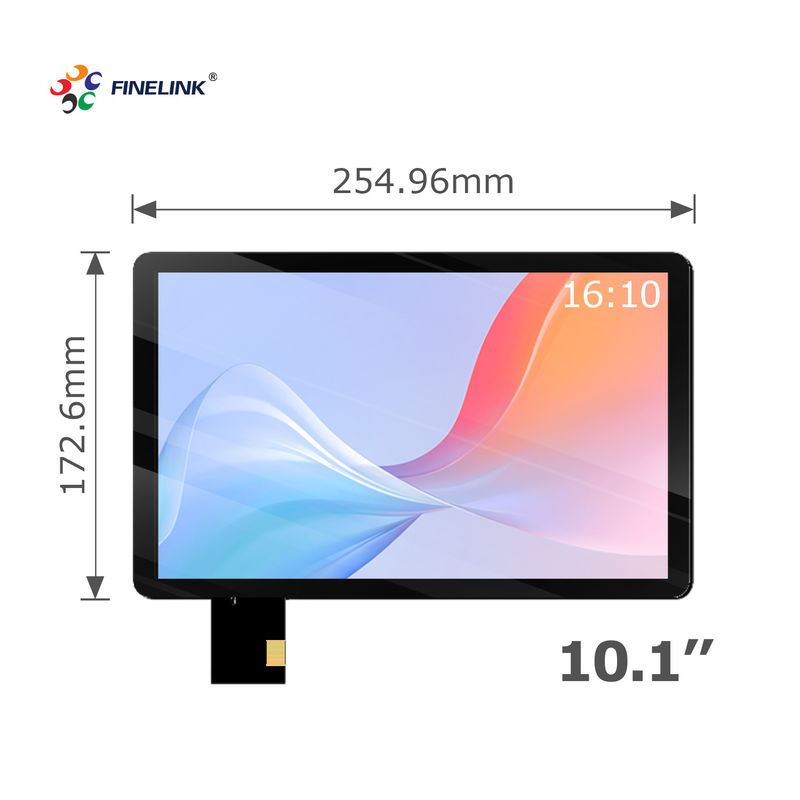

Lens OD
|
254.96*172.6mm
|
Sensor OD
|
229.69*151.1mm
|
Cover glass(T)
|
2mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|

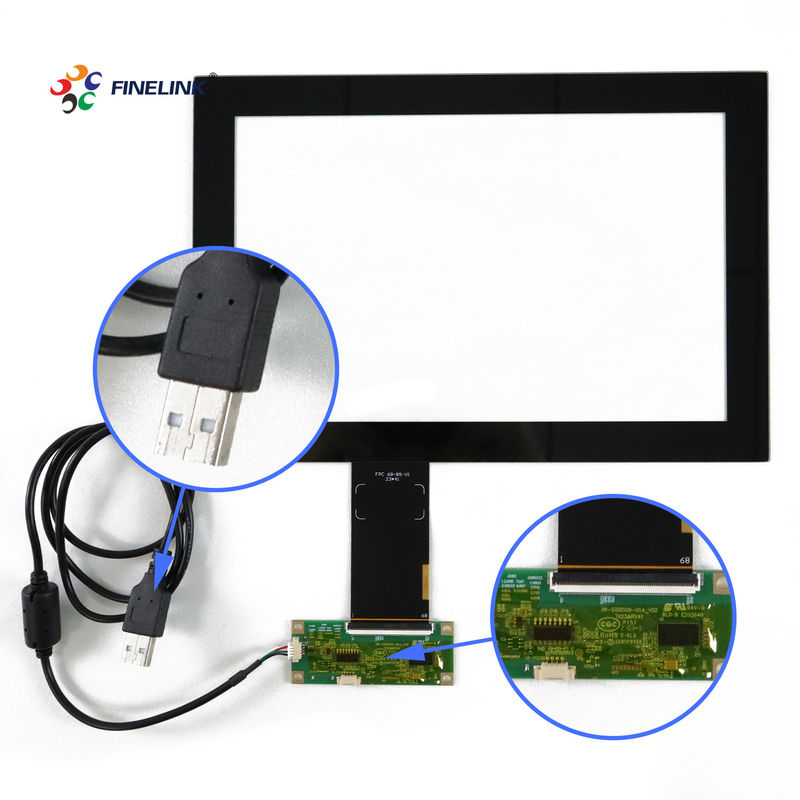

Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is the touch panel compatible with Windows and Linux operating systems?
A: Yes, the touch panel is compatible with both Windows and Linux operating systems, providing universal compatibility for various applications.
Q: Can the touch panel be used with gloves or stylus pens?
A: Yes, the capacitive touch technology supports touch input with gloves or stylus pens, providing flexibility for different user preferences.
Q: What is the response time of the touch panel?
A: The touch panel offers a fast response time, typically in milliseconds, ensuring smooth and responsive touch interactions.
Q: Can the touch panel be mounted in landscape or portrait orientation?
A: Yes, the touch panel can be mounted in both landscape and portrait orientations, offering flexibility for different display configurations.
Q: Is the touch panel resistant to water and dust?
A: While the touch panel itself is not waterproof, it can be integrated into waterproof enclosures or used with protective covers for enhanced durability in harsh environments.
Q: How do I calibrate the touch panel if needed?
A: The touch panel is pre-calibrated and ready to use out of the box. However, if calibration is required, it can be easily performed using the calibration utility software provided.
