15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable

15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable

5 Inch Capacitive Multi Touch Panel

G G Capacitive Multi Touch Panel

5 Inch Multi Touch Panel

Place of Origin:

Guangdong, China

Brand Name:

FINELINK

Contact Us
Request A Quote
Product Details
Warranty(Year):
1-Year
Color:
Black, Multi
Package:
Yes
Series:
For Business
Aspect Ratio:
4:3
After-sales Service:
Call Center And On-line Technical Support, Free Spare Parts, Return And Replacement
Private Mold:
Yes
Products Status:
New
Type:
Capacitive
Interface Type:
USB/I2C/Serial Port
Product Name:
15 Inch Capacitive Touch Panel
Application:
Touch Panel For Touch Monitor/All-in-One PC
Structure:
Glass+Glass+FPC+IC
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
Interface:
I2C/USB/RS232
HS Code:
85480000
Port:
Shenzhen, Guangzhou, Shanghai
Highlight:

5 Inch Capacitive Multi Touch Panel

,

G G Capacitive Multi Touch Panel

,

5 Inch Multi Touch Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$20.43/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 15 Inch G+G EETI/ILITEK Capacitive Touch Panel for Marine Portable Navigator
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

The 15 Inch G+G EETI/ILITEK Capacitive Multi Touch Panel is designed specifically for marine applications. It features robust G+G (Glass+Glass) construction, providing excellent durability and touch sensitivity. The panel uses advanced EETI and ILITEK touch controllers, ensuring precise and responsive multi-touch functionality, making it ideal for the demanding environments of marine and portable applications.

Item
15 Inch G+G EETI/ILITEK Capacitive Touch Panel for Marine Portable Navigator
Ratio
4:3
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB

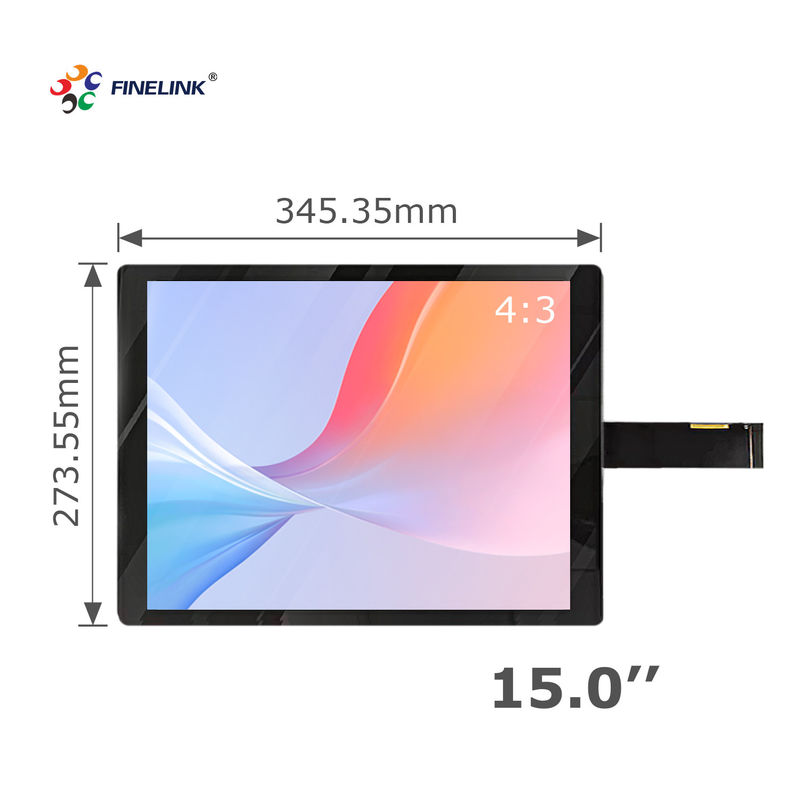

Lens OD
345.35*273.55mm
Sensor OD
319*244mm
Cover glass(T)
1.1mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • G+G Construction: Dual glass layers provide superior durability, scratch resistance, and clarity.
  • EETI/ILITEK Controllers: Advanced touch controllers ensure high precision and responsiveness for multi-touch applications.
  • 15 Inch Display: Ample screen size for detailed and interactive displays.
  • Capacitive Multi-Touch: Supports multiple touch points for an intuitive and interactive user experience.
  • Marine Grade: Designed to withstand the harsh conditions of marine environments, including resistance to water and corrosion.
  • Portable Design: Lightweight and easy to integrate into portable marine equipment.

15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable 0

Application Scenarios

  • Marine Navigation Systems: Ideal for boat and ship navigation systems requiring reliable touch input and clear visibility.
  • Portable Marine Devices: Suitable for handheld or portable devices used in marine settings.
  • Marine Control Panels: Perfect for control panels on yachts, ships, and other marine vessels.
  • Outdoor Marine Applications: Designed to withstand outdoor marine environments with exposure to water, sunlight, and varying temperatures.

15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable 1

Customization Services

  • Touch Sensitivity Adjustments: Tailored to specific application needs, ensuring optimal performance in different marine conditions.
  • Branding Options: Custom branding on the touch panel and packaging to enhance product identity.
  • Enhanced Waterproofing: Additional waterproofing measures for increased protection against marine environments.
  • Custom Interface Solutions: Various interface options, including USB, RS232, and others, to fit your specific system requirements.
  • Anti-Glare Coating: Optional anti-glare coating for improved visibility under direct sunlight.
15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable 2
15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable 3
15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable 4

Packaging and Shipping

  • Secure Packaging: Robust packaging to protect the touch panel during transit, ensuring it arrives in perfect condition.
  • Custom Packaging Options: Customizable packaging to reflect your brand’s identity.
  • Efficient Shipping: Reliable and timely shipping solutions to any location worldwide.
  • Eco-Friendly Materials: Environmentally conscious packaging materials to minimize ecological impact.

FAQ

Q: Is this touch panel suitable for outdoor marine use?
A: Yes, the panel is designed to withstand outdoor marine environments, including resistance to water and corrosion.

Q: What operating systems are compatible with this touch panel?
A: The touch panel is compatible with a range of operating systems, including Windows, Linux, and Android.

Q: Can the touch sensitivity be adjusted for different applications?
A: Yes, the touch sensitivity can be customized to meet specific application requirements.

Q: What is the warranty period for this product?
A: The touch panel comes with a standard one-year warranty. Extended warranties are available upon request.

Q: How do I clean and maintain the touch panel?
A: The G+G surface can be cleaned with a soft, damp cloth. For tougher stains, a mild detergent can be used. Avoid using abrasive cleaners.

Q: Is technical support available for installation and integration?
A: Yes, we provide comprehensive technical support to assist with installation and integration, ensuring smooth implementation of the touch panel into your system.

15 Inch G G EETI/ILITEK Capacitive Multi Touch Panel For Marine Portable 5
