19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen

19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen

19.5 Inch GG Touch Panel

I2C GG Touch Panel

19.5 Inch Capacitive Multi Touch Screen

Place of Origin:

Guangdong, China

Brand Name:

FINELINK

Contact Us
Request A Quote
Product Details
Warranty(Year):
1-Year
Color:
Black, Multi
Package:
Yes
Series:
For Business
Aspect Ratio:
16:9
After-sales Service:
Call Center And On-line Technical Support, Free Spare Parts, Return And Replacement
Private Mold:
Yes
Products Status:
New
Type:
Capacitive
Interface Type:
USB/I2C/Serial Port
Product Name:
19.5 Inch Capacitive Touch Panel
Application:
Touch Panel For Touch Monitor/All-in-One PC
Structure:
Glass+Glass+FPC+IC
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
Interface:
I2C/USB/RS232
HS Code:
85480000
Port:
Shenzhen, Guangzhou, Shanghai
Highlight:

19.5 Inch GG Touch Panel

,

I2C GG Touch Panel

,

19.5 Inch Capacitive Multi Touch Screen

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$28.31/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 19.5 Inch G+G EETI/ILITEK Capacitive Touch Panel for Touch Display
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box.
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description



Product Description: The 19.5 Inch GG Touch Panel with I2C Interface is a high-performance capacitive multi-touch screen designed for a wide range of applications. Its Glass-Glass (GG) construction ensures durability and clarity, while the I2C interface provides a reliable and efficient connection for various devices.



Item
 19.5 Inch G+G EETI/ILITEK Capacitive Touch Panel for Touch Display
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB

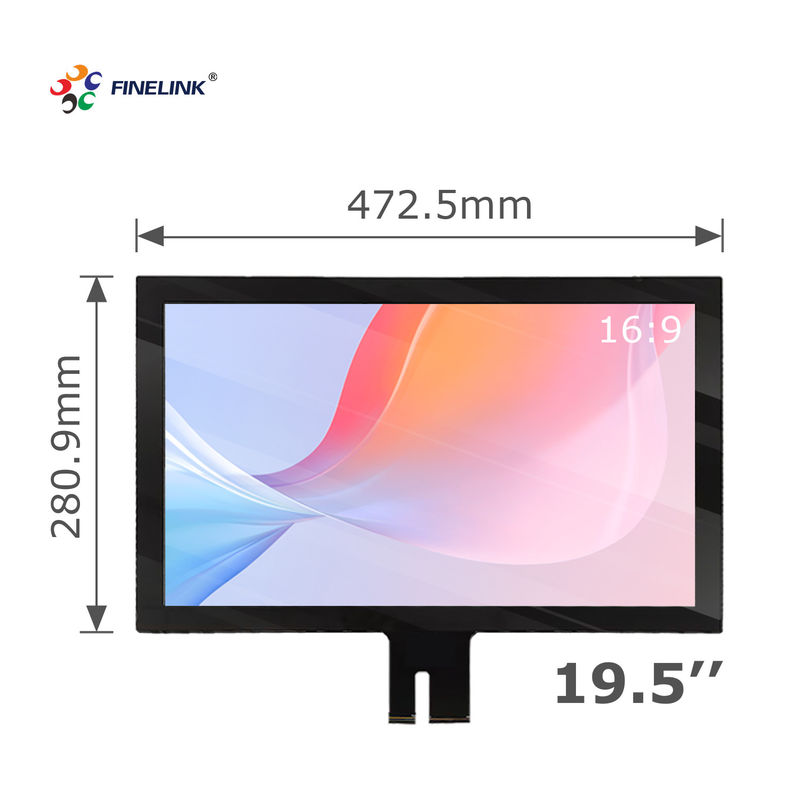

Lens OD
472.5*280.9mm
Sensor OD
447.4*257.8mm
Cover glass(T)
1.8mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features:

  • Capacitive Multi-Touch Technology: Supports multiple touch points for intuitive and responsive interactions.
  • 19.5 Inch Display: Large screen size ideal for both consumer and industrial applications.
  • Glass-Glass (GG) Construction: Provides excellent durability and optical clarity for a superior user experience.
  • I2C Interface: Ensures fast and stable communication between the touch panel and the host device.
  • High Sensitivity and Accuracy: Delivers precise touch response, essential for detailed tasks and smooth navigation.
  • Robust and Reliable: Designed to withstand daily use in demanding environments.

19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen 0

Application Scenarios:

  • Point of Sale (POS) Systems: Ideal for retail and hospitality sectors, offering quick and accurate touch response.
  • Kiosks and Self-Service Terminals: Enhances user interaction in informational and transactional kiosks.
  • Industrial Automation: Suitable for control panels and interfaces in industrial settings, providing reliable performance.
  • Medical Devices: Used in healthcare equipment where precision and clarity are critical.
  • Education and Training: Perfect for interactive whiteboards and educational tools, facilitating collaborative learning.

19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen 1

Customization Services:

  • Interface Options: Customizable interface options beyond I2C, including USB and RS232, to meet specific needs.
  • Touch Sensitivity: Adjustable touch sensitivity to match different application requirements.
  • Screen Coatings: Optional anti-glare, anti-fingerprint, and scratch-resistant coatings for enhanced durability and usability.
  • Design and Branding: Customizable screen design, including logo placement and unique branding elements.
  • Size and Aspect Ratio: Custom size and aspect ratio adjustments available to fit various display configurations.
19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen 2
19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen 3
19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen 4

Packaging and Shipping:

  • Secure Packaging: Each touch panel is carefully packaged to prevent damage during transportation.
  • Shipping Options: Multiple shipping methods available to meet delivery timelines and budget constraints.
  • Tracking Information: Comprehensive tracking information provided for all shipments.
  • Customer Support: Dedicated support team available to address any packaging or shipping concerns promptly.

FAQ:

  1. What is the I2C interface?

    • The I2C interface is a communication protocol that allows the touch panel to communicate efficiently with the host device, ensuring fast and reliable data transfer.
  2. Can the touch sensitivity be adjusted?

    • Yes, the touch sensitivity can be customized to meet the specific requirements of different applications.
  3. Is the touch panel suitable for industrial use?

    • Absolutely, the robust GG construction and precise touch response make it ideal for industrial automation and control applications.
  4. What kind of coatings are available?

    • We offer optional anti-glare, anti-fingerprint, and scratch-resistant coatings to enhance durability and user experience.
  5. How is the product packaged for shipping?

    • The touch panel is securely packaged to prevent any damage during transit, ensuring it arrives in perfect condition.
  6. Are there customization options for the screen design?

    • Yes, we provide extensive customization options, including interface choices, touch sensitivity adjustments, screen coatings, and design and branding elements.
19.5 Inch GG Touch Panel I2C Interface Capacitive Multi Touch Screen 5
