Place of Origin:
Guangdong, China
Brand Name:
FINELINK

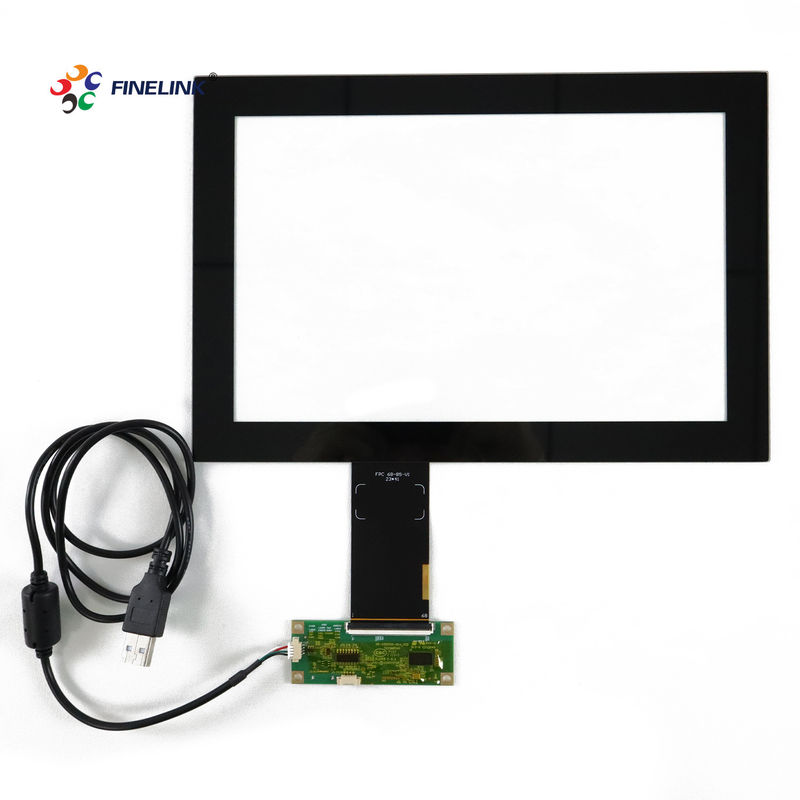

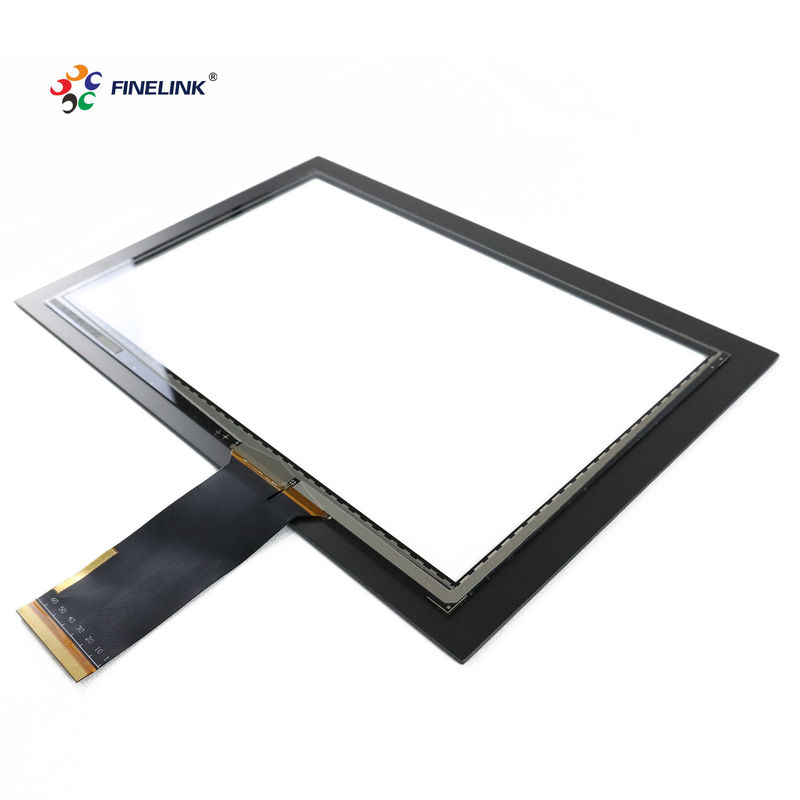

The 10.1 Inch Projected Capacitive Touch Screen is designed specifically for OEM applications, including digital photo frames. This touch screen provides a highly responsive and intuitive user experience, enhancing the functionality and aesthetics of digital photo frames. With its sleek design and advanced touch technology, it delivers exceptional performance and reliability.
Item
|
10.1 Inch G+G Capacitive Touch Panel For Digital Photo Frame
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

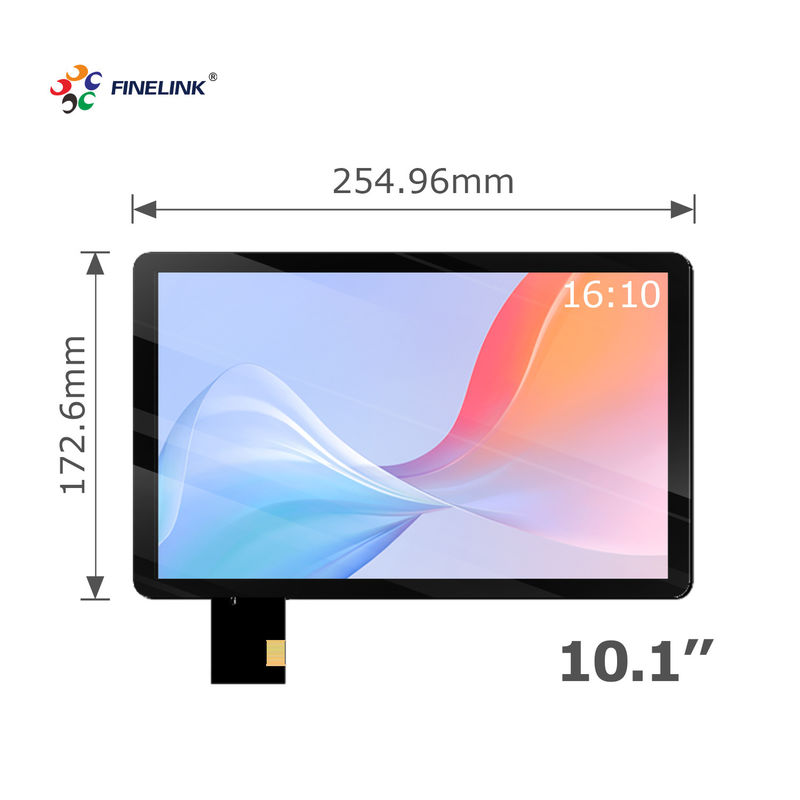

Lens OD
|
247*150mm
|
Sensor OD
|
234.5*140mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch screen compatible with both Windows and Android operating systems?
A: Yes, the 10.1 Inch Projected Capacitive Touch Screen is compatible with both Windows and Android operating systems, providing seamless integration.
Q: Can the touch screen be used in outdoor settings?
A: While it is primarily designed for indoor use, outdoor usage can be considered with additional protective measures against weather elements.
Q: What is the typical lead time for a custom order?
A: The lead time for custom orders typically ranges from 4 to 6 weeks, depending on the complexity and specific customization requirements.
Q: Does the touch screen support multi-touch gestures?
A: Yes, it supports multi-touch gestures, allowing for intuitive interactions such as pinch-to-zoom and swipe.
Q: How do I clean and maintain the touch screen?
A: The touch screen can be cleaned with a soft, dry cloth. For tougher smudges, a slightly damp cloth with mild cleaner can be used. Avoid abrasive materials and harsh chemicals.
Q: What are the warranty terms for this touch screen?
A: The touch screen comes with a standard one-year warranty covering manufacturing defects. Extended warranty options are also available upon request.
