Place of Origin:
Guangdong, China
Brand Name:
FINELINK

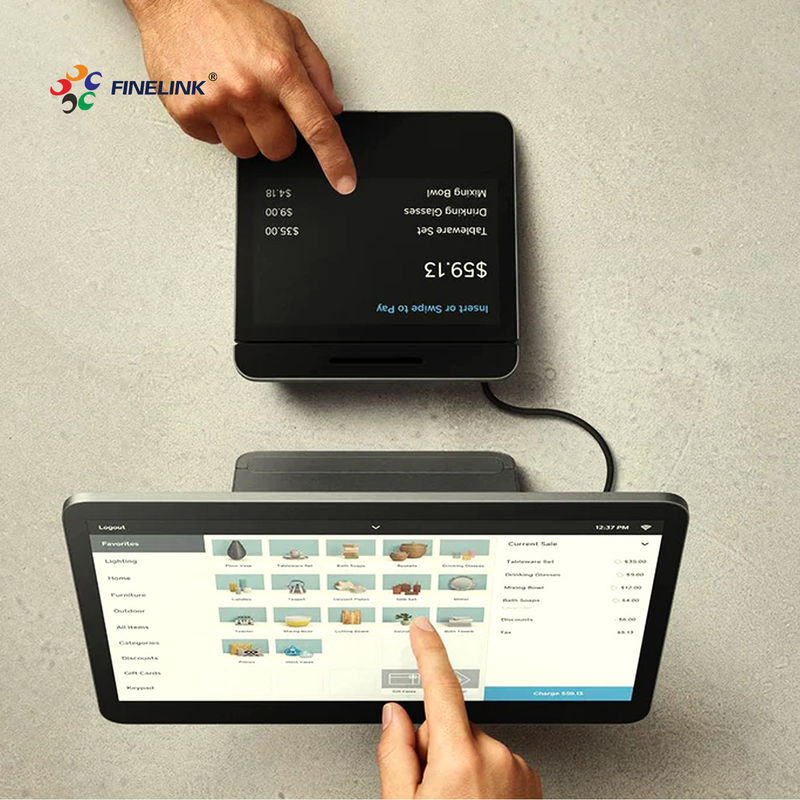

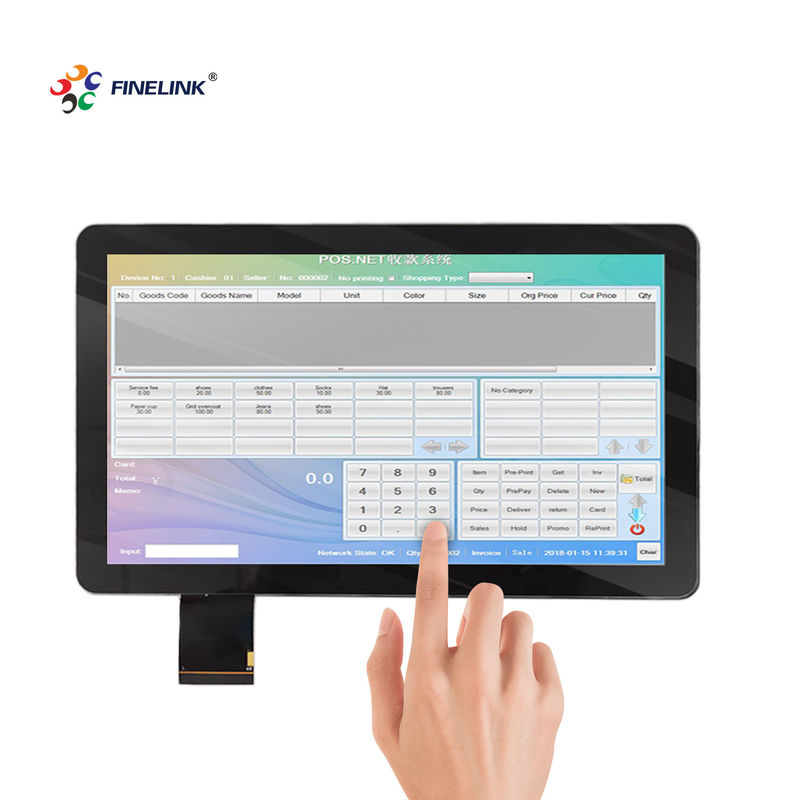

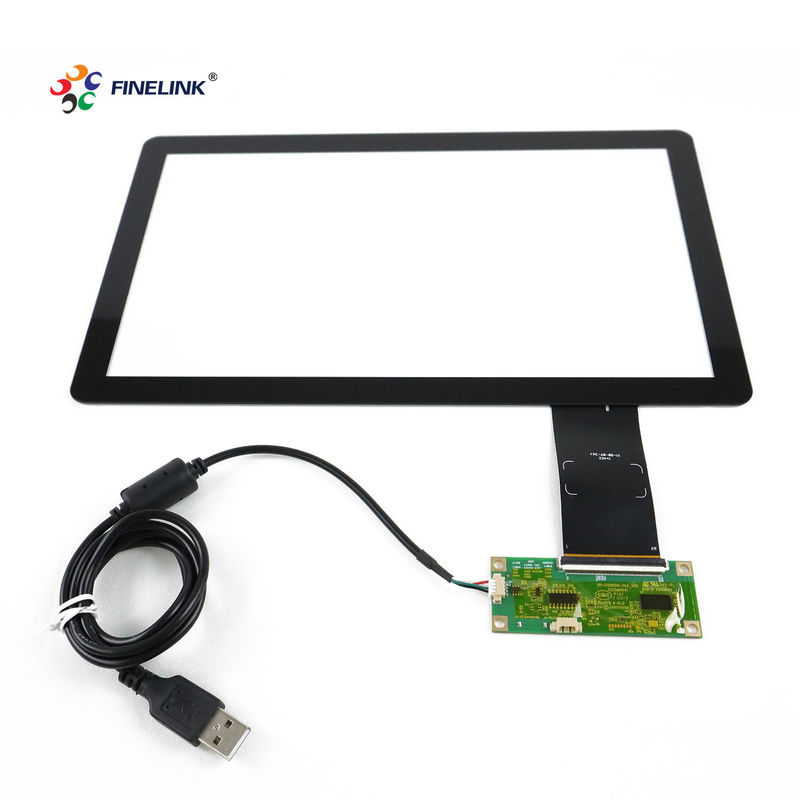

The 11.6 Inch IP65 Waterproof LCD Capacitive Touchscreen is specifically designed for Point of Sale (POS) monitors, offering a durable and high-performance touch solution. With its IP65 waterproof rating, this touchscreen is ideal for environments where exposure to liquids and dust is common. The capacitive touch technology ensures a smooth and responsive user experience, making it perfect for various commercial applications.
Item
|
11.6 Inch G+G Capacitive Touch Panel For POS Monitor
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

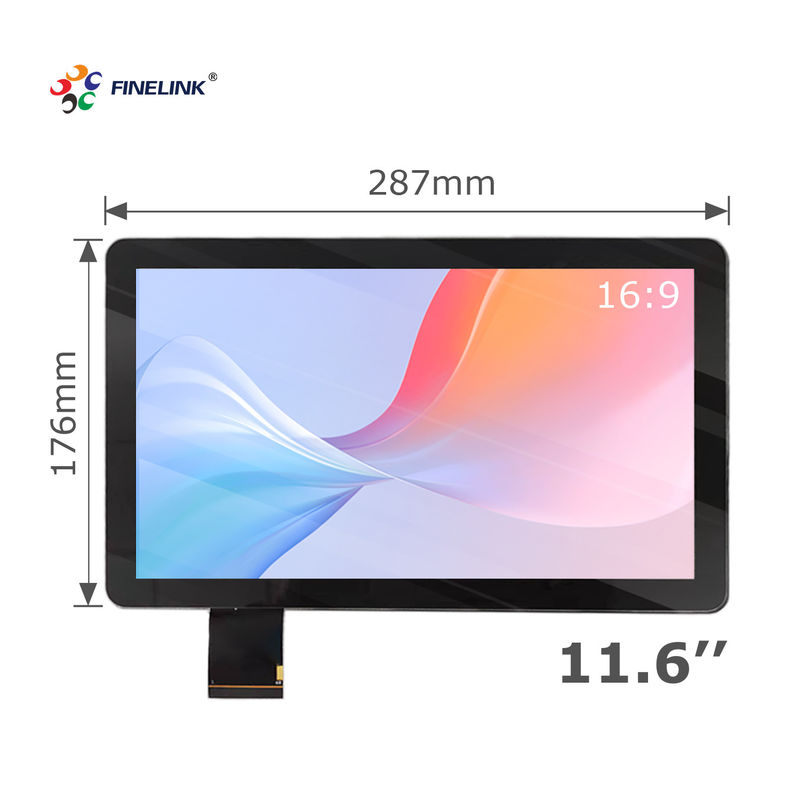

Lens OD
|
287*176mm
|
Sensor OD
|
270*159mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: What operating systems are compatible with this touchscreen?
A: The touchscreen is compatible with a variety of operating systems, including Windows, Linux, and Android.
Q: How does the IP65 rating benefit this touchscreen?
A: The IP65 rating ensures that the touchscreen is protected against water and dust, making it ideal for use in environments where these elements are present.
Q: Is this touchscreen easy to clean?
A: Yes, the touchscreen's waterproof design makes it easy to clean with standard cleaning solutions, maintaining hygiene in environments like healthcare and hospitality.
Q: Can the touchscreen be used in outdoor environments?
A: While it is designed to be water and dust-resistant, it is recommended to use this touchscreen in shaded or semi-covered outdoor environments to protect it from direct sunlight and extreme weather conditions.
Q: What kind of warranty is offered with this product?
A: The touchscreen comes with a standard one-year warranty, with options to extend the warranty period based on customer needs.
Q: How do I install the touchscreen into my existing POS system?
A: The touchscreen is designed for easy integration with POS systems. Detailed installation instructions and support are provided to ensure a smooth setup process.
