Place of Origin:
Guangdong, China
Brand Name:
FINELINK

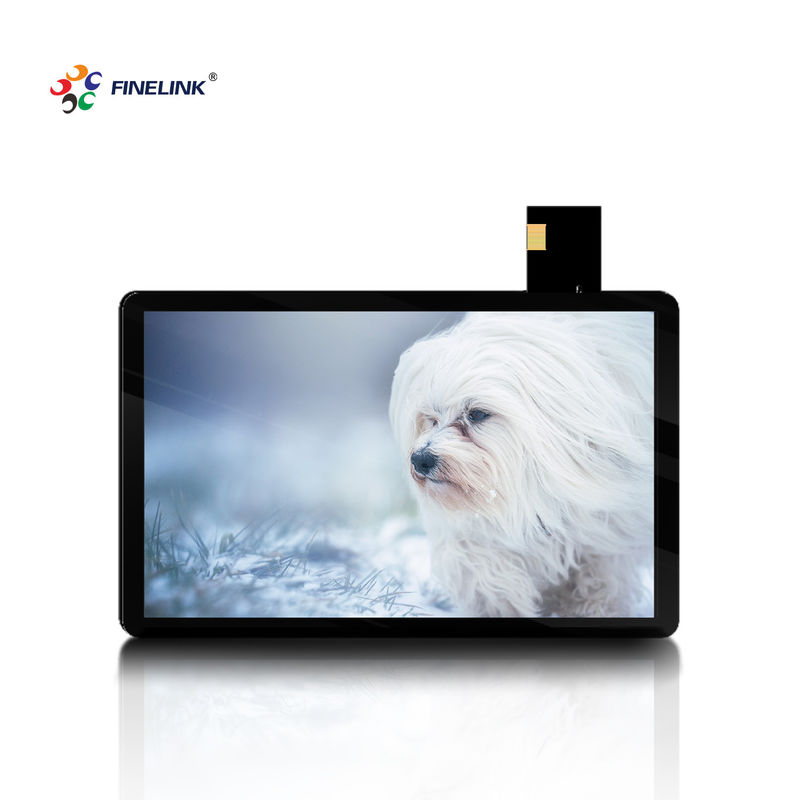

The 10.1 Inch G+G Digital Photo Frame and POS Terminal Touch Panel is a versatile and high-performance display solution, perfect for both digital signage and point-of-sale applications. Featuring a capacitive touch panel and running on a Linux OS, this device offers superior touch responsiveness, durability, and compatibility with various applications. Its sleek design and robust construction make it ideal for both commercial and personal use.
Item
|
10.1 Inch G+G Capacitive Touch Panel For Digital Photo Frame And POS Terminal
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

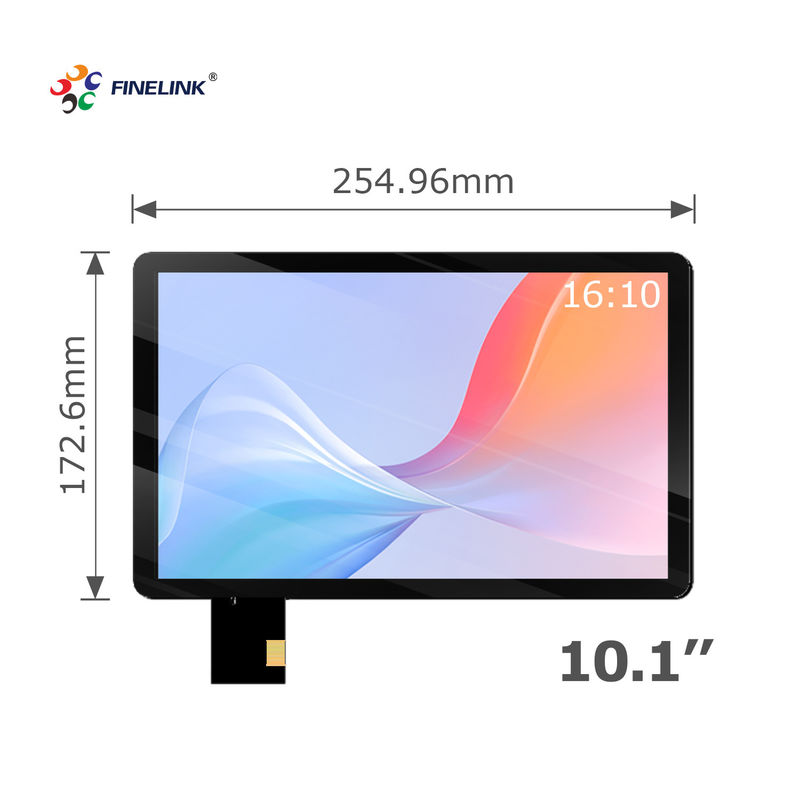

Lens OD
|
247*150mm
|
Sensor OD
|
234.5*140mm
|
Cover glass(T)
|
2mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch panel compatible with other operating systems besides Linux?
A: Yes, while it comes pre-installed with Linux OS, it can also be customized to support other operating systems such as Windows or Android upon request.
Q: How many touch points does the capacitive touch panel support?
A: The touch panel supports multi-touch functionality with up to 10 touch points, providing a highly interactive user experience.
Q: Can the device be used outdoors?
A: The device is primarily designed for indoor use, but with additional customization such as waterproofing and enhanced brightness, it can be adapted for certain outdoor applications.
Q: What kind of warranty is offered with this product?
A: We offer a standard one-year warranty with options to extend it based on your specific requirements. The warranty covers manufacturing defects and performance issues.
Q: How do I install and set up the device?
A: The device comes with a detailed user manual and installation guide. Additionally, our customer support team is available to assist you with any setup or installation queries.
Q: Is it possible to order a sample unit before making a bulk purchase?
A: Yes, we offer sample units for evaluation purposes. Please contact our sales team to discuss your requirements and sample availability.
