Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized

Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized

Glass Capacitive Touch Screen 11.6 Inch

11.6 Inch Capacitive Touch Screen

Open Frame Glass Capacitive Touch Screen

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8061 116

Contact Us
Request A Quote
Product Details
Features:
IK10, Waterproof IP65
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
11.6 Inch
Width:
287mm
Drive IC:
EETI/ILIEK/SIS
Product Name:
11.6 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Port:
Shenzhen, Guangzhou, Shanghai
Highlight:

Glass Capacitive Touch Screen 11.6 Inch

,

11.6 Inch Capacitive Touch Screen

,

Open Frame Glass Capacitive Touch Screen

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$13.84/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description
11.6 Inch Open Frame Pcap Glass Capacitive Touch Screen For EETI/ILIEK/SIS Solution


Product Description

The 11.6 Inch Open Frame Glass Capacitive Touch Screen is a highly customizable and versatile touch display solution, designed to meet the demanding requirements of various industrial and commercial applications. With its sleek glass construction and advanced capacitive touch technology, this touch screen offers superior touch accuracy, durability, and a seamless user experience.

Item
11.6 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB

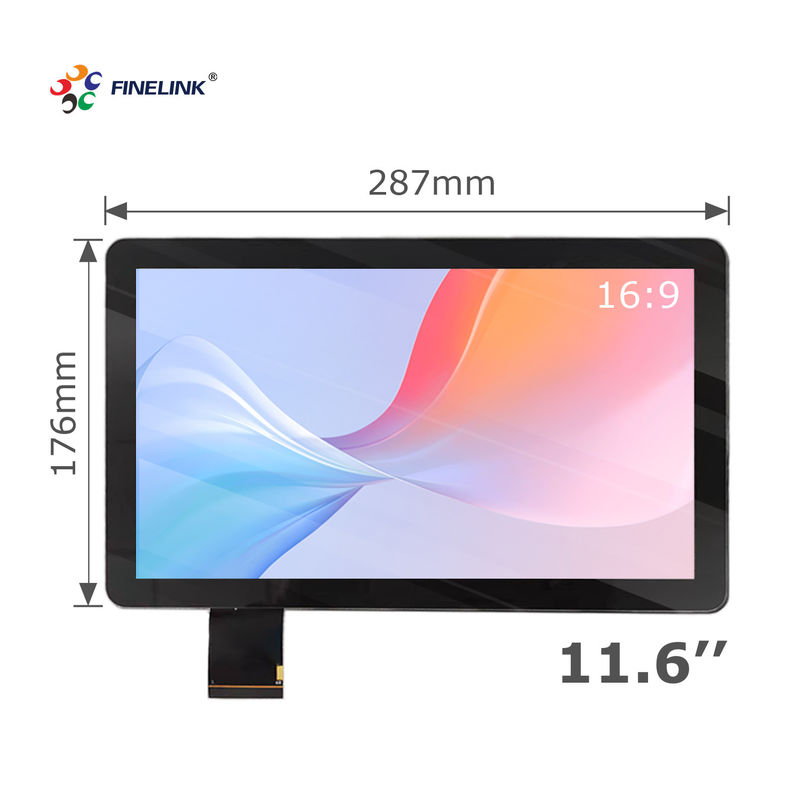

Lens OD
287*176mm
Sensor OD
270*159mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • 11.6 Inch Display: Provides clear, high-resolution visuals, making it suitable for detailed graphical interfaces.
  • Capacitive Touch Technology: Ensures precise touch response and supports multi-touch functionality for enhanced interactivity.
  • Open Frame Design: Facilitates easy integration into custom enclosures and installations.
  • Glass Construction: Offers a sleek and modern appearance while providing durability and scratch resistance.
  • Customizable Options: Available with various customization options to fit specific application needs, including interface types and screen coatings.
  • High Durability: Built to withstand harsh environments, ensuring long-term reliability.

Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized 0

Application Scenarios

  • Industrial Automation: Ideal for use in control systems, machinery interfaces, and HMI (Human-Machine Interface) applications.
  • Retail and Point of Sale: Perfect for interactive kiosks, self-service terminals, and digital signage in retail environments.
  • Healthcare: Suitable for medical devices and diagnostic equipment, offering reliable touch interfaces for healthcare professionals.
  • Transportation: Used in ticketing machines, information kiosks, and control systems in transportation hubs.
  • Education and Training: Enhances interactive learning experiences in educational institutions through reliable and responsive touch interfaces.

Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized 1

Customization Services

  • Touchscreen Options: Customizable to support single-touch or multi-touch functionality based on specific requirements.
  • Interface Choices: Options for various interfaces including USB, HDMI, RS232, and IIC to ensure compatibility with different systems.
  • Screen Coatings: Customizable anti-glare, anti-reflective, and anti-fingerprint coatings for enhanced screen protection and usability.
  • Branding and Design: Custom logo printing and design modifications to align with your brand identity.
Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized 2
Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized 3
Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized 4

Packaging and Shipping

  • Secure Packaging: Each unit is carefully packaged with high-quality materials to prevent damage during transportation.
  • Bulk Packaging: Tailored packaging solutions for bulk orders to ensure efficient and safe shipping.
  • Timely Delivery: Reliable shipping services to ensure products arrive on time and in excellent condition.

FAQ

Q: What type of touch technology is used in this screen?
A: This screen uses advanced capacitive touch technology, which supports multi-touch functionality and offers precise touch response.

Q: Can this touch screen be customized?
A: Yes, we offer various customization options, including interface types, screen coatings, and branding to meet specific application needs.

Q: Is the touch screen durable enough for industrial use?
A: Yes, the touch screen is built with high-quality glass construction, ensuring durability and reliability even in harsh environments.

Q: What are the interface options available for this touch screen?
A: The touch screen can be customized with USB, HDMI, RS232, and IIC interfaces to ensure compatibility with different systems.

Q: Does the screen support multi-touch functionality?
A: Yes, the screen supports multi-touch functionality, allowing for complex gestures and enhanced user interactivity.

Q: What warranty is provided with this product?
A: The product comes with a standard one-year warranty against manufacturing defects, with options for extended warranties available.

Open Frame Glass Capacitive Touch Screen 11.6 Inch Customized 5
