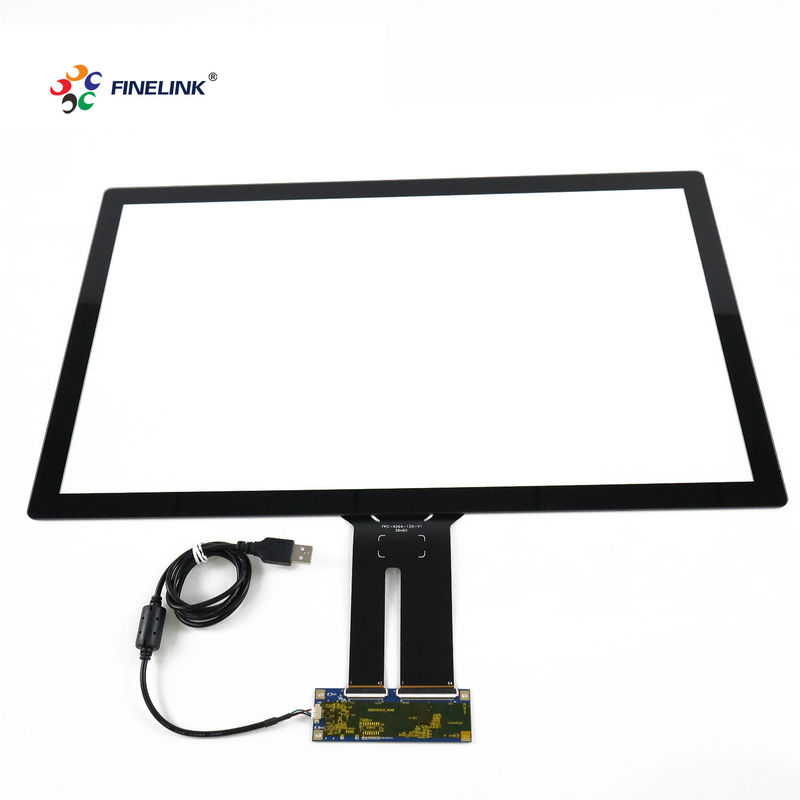

Customized 32 inch Multi Touch Waterproof Touchscreen Panel with EETI/ILITEK Controller

Customized 32 inch Multi Touch Waterproof Touchscreen Panel with EETI/ILITEK Controller

Customized Touchscreen Panel

32 inch Touchscreen Panel

Waterproof Touchscreen Panel

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8084 320

Contact Us
Request A Quote
Product Details

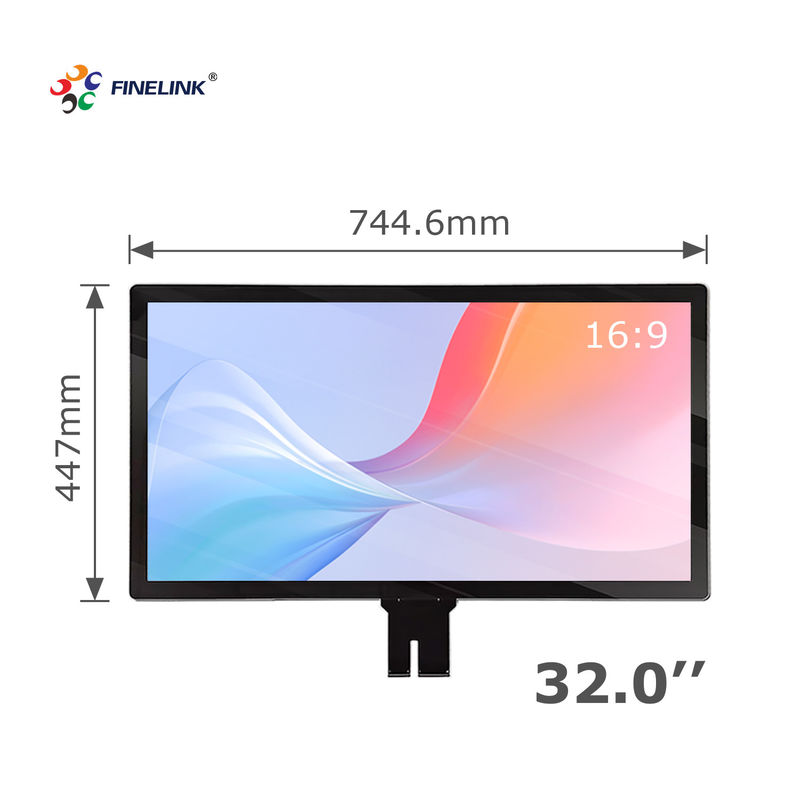

Length:
744.6mm
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV
Interface:
USB/IIC/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
32 Inch
Drive IC:
EETI/ILIEK/SIS
Product Name:
32 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Port:
Shenzhen, Guangzhou, Shanghai
Highlight:

Customized Touchscreen Panel

,

32 inch Touchscreen Panel

,

Waterproof Touchscreen Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$42.28/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description
Product Description:
Introducing our custom 32-inch Multi-touch Waterproof Touch Screen Panel with EETI/ILITEK controller. This bespoke touch screen panel is designed to withstand challenging environments while providing advanced touch functionality for various applications.



Item
32 Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK/SIS
Connection
COB
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features:

  • Customized Design: Tailored to specific requirements, the 32-inch touch screen panel is designed to meet the unique needs of your project or application.
  • Multi-touch Capability: Supports multi-touch functionality, allowing for intuitive gesture controls and simultaneous touch inputs for enhanced interaction.
  • Waterproof Design: Features a waterproof construction, making it suitable for use in outdoor environments, industrial settings, or areas prone to moisture.
  • EETI/ILITEK Controller: Equipped with EETI/ILITEK touch controller technology for reliable performance and compatibility with a wide range of devices and systems.
  • High Durability: Constructed with durable materials and sealed components to withstand harsh conditions and ensure long-term reliability.
  • Versatile Applications: Ideal for interactive kiosks, outdoor displays, industrial control panels, information terminals, and other demanding environments.

Customized 32 inch Multi Touch Waterproof Touchscreen Panel with EETI/ILITEK Controller 0

Application Scenarios: The custom 32-inch Multi-touch Waterproof Touch Screen Panel is suitable for various application scenarios, including:

  • Outdoor Kiosks: Install in outdoor information kiosks, ticketing machines, or wayfinding systems in public spaces, parks, or transportation hubs.
  • Industrial Control Panels: Integrate into industrial control panels for machinery operation, monitoring systems, or process control in manufacturing facilities.
  • Retail Environments: Use in retail stores, restaurants, or shopping malls for interactive product displays, self-service kiosks, or digital signage.
  • Healthcare Facilities: Deploy in hospitals, clinics, or medical centers for patient check-in systems, interactive directories, or health information terminals.

Customized 32 inch Multi Touch Waterproof Touchscreen Panel with EETI/ILITEK Controller 1

Customization Services: We offer a range of customization options to tailor the touch screen panel to your specific needs, including:

  • Size and Shape: Customize the screen size, aspect ratio, and shape to fit your enclosure or installation requirements.
  • Touch Technology: Offer options for different touch technologies, including capacitive, resistive, or infrared, based on application preferences.
  • Protective Coatings: Add anti-glare coatings, tempered glass protection, or oleophobic coatings to enhance durability and visibility in challenging environments.
  • Connection Interfaces: Provide various connection interfaces, including USB, RS232, or I2C, to ensure compatibility with your system or device.
Customized 32 inch Multi Touch Waterproof Touchscreen Panel with EETI/ILITEK Controller 2
Customized 32 inch Multi Touch Waterproof Touchscreen Panel with EETI/ILITEK Controller 3

Packaging and Shipping: We ensure secure packaging and reliable shipping for our custom touch screen panels:

  • Protective Packaging: Each panel is carefully packaged with shock-absorbent materials and securely sealed to prevent damage during transit.
  • Worldwide Shipping: Partnering with trusted logistics providers to offer global shipping options, ensuring timely delivery to your location.
  • Tracking and Insurance: Shipment tracking and insurance coverage are provided for peace of mind throughout the shipping process.

Customized 32 inch Multi Touch Waterproof Touchscreen Panel with EETI/ILITEK Controller 4

FAQ:

  1. What is the lead time for custom orders? The lead time for custom orders may vary depending on the complexity of the customization and order volume. Contact our sales team for a detailed timeline.

  2. Can the touch screen panel be used with gloves or styluses? Yes, depending on the chosen touch technology, the panel can support touch input from gloves, styluses, or other objects.

  3. Is the touch screen panel compatible with specific operating systems? Yes, our touch screen panels are compatible with various operating systems, including Windows, Linux, Android, and others.

  4. What is the warranty period for custom touch screen panels? Our custom touch screen panels come with a standard warranty period, with options for extended warranties available upon request.

  5. Can the touch screen panel withstand extreme temperatures? While our touch screen panels are designed for durability, please consult with our team to ensure compatibility with extreme temperature conditions.
