Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8061 116
The 11.6 Inch Glass PCAP Touch Panel is a high-performance capacitive touchscreen designed for seamless integration into various devices. Featuring advanced Projected Capacitive (PCAP) technology and a USB port, this touch panel provides excellent touch sensitivity and accuracy, making it ideal for a range of applications from industrial controls to consumer electronics.
Item
|
11.6 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

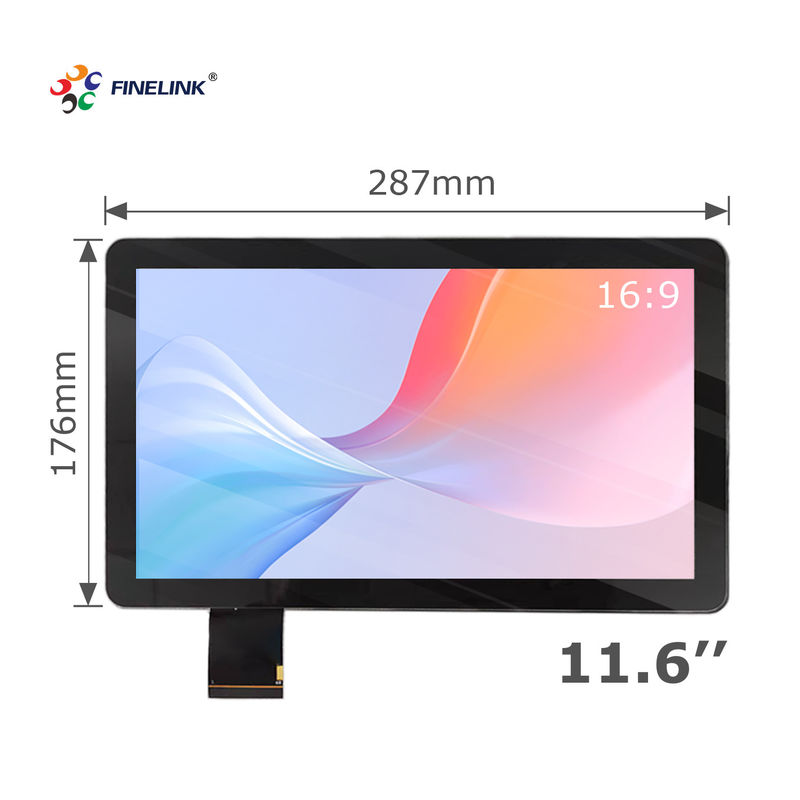

Lens OD
|
287*176mm
|
Sensor OD
|
270*159mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: What operating systems is the touch panel compatible with?
A: The touch panel is compatible with major operating systems, including Windows, Mac OS, Linux, and Android.
Q: How many touch points does the panel support?
A: The panel supports up to 10 simultaneous touch points, allowing for multi-touch gestures and interactions.
Q: Can the touch panel be used outdoors?
A: While the panel itself is robust, additional protective measures such as an enclosure are recommended for outdoor use to protect against environmental factors.
Q: Is the touch panel waterproof?
A: The touch panel is not inherently waterproof, but can be integrated into waterproof enclosures for use in wet environments.
Q: What is the warranty period for this touch panel?
A: The touch panel comes with a standard one-year warranty, with options to extend based on the client's needs.
Q: How do I calibrate the touch panel?
A: Calibration software is provided, and the panel can also be calibrated through the settings of the connected device if necessary.
Q: Are there any additional drivers required for installation?
A: The touch panel is designed for plug-and-play use, but specific drivers may be provided or required for certain operating systems for optimal performance.
