Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063

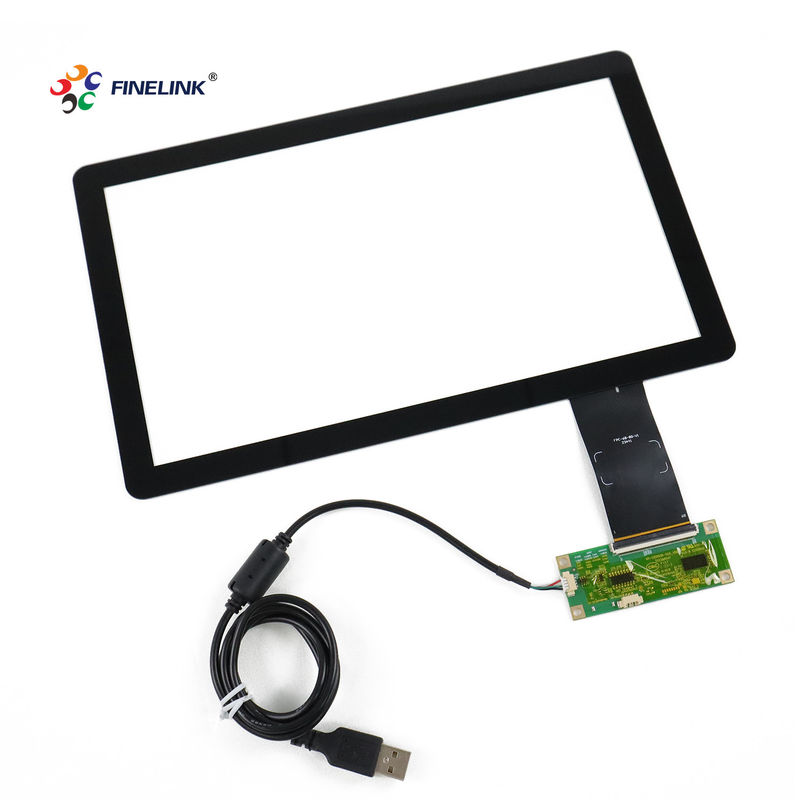

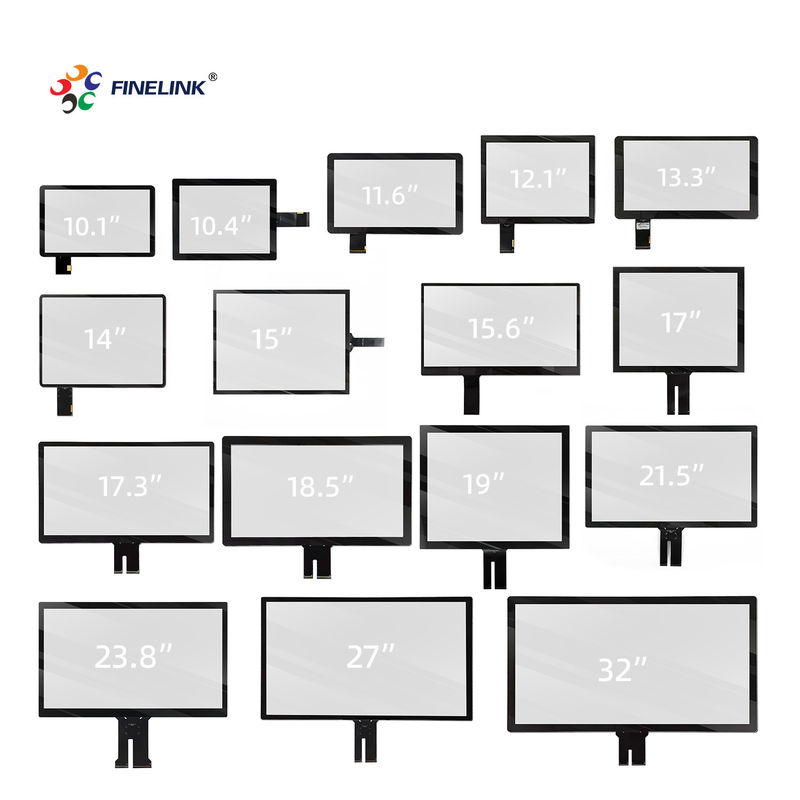

Our Multi-Touch Custom Size IP65 Waterproof PCAP Touch Panels are designed to provide versatile and reliable touch solutions across a wide range of applications. Available in sizes ranging from 7 inches to 65 inches, these panels offer precise 10-point touch capabilities and are equipped with various interface options including USB, RS232, and IIC. With IP65-rated waterproof protection, these touch panels are suitable for both indoor and outdoor use, ensuring durability and performance in challenging environments.
Item
|
10.1 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
255*173mm
|
Sensor OD
|
230*1151mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch screen compatible with both Windows and Linux operating systems?
A: Yes, the touch screen is compatible with both Windows and Linux operating systems, providing versatile integration options.
Q: Can the touch screen be used in direct sunlight?
A: Yes, the touch screen is designed to offer excellent visibility even in direct sunlight, making it suitable for outdoor applications.
Q: How do I clean the touch screen?
A: The touch screen can be cleaned with a soft, damp cloth. Avoid using abrasive materials or harsh chemicals to prevent damage.
Q: Can the touch screen be used with gloves?
A: Yes, the touch screen is sensitive enough to be used with gloves, which is ideal for industrial and healthcare environments.
Q: What is the operating temperature range for this touch screen?
A: The touch screen is designed to operate within a wide temperature range, typically between -20°C to 60°C.
Q: Does the touch screen require calibration?
A: The touch screen comes pre-calibrated, but it can be recalibrated using the provided software or through system settings if needed.
