15" Pcap Transparent USB Multi Touch ILITEK EETI Capacitive Touch Screen Panel Solution

15" Pcap Transparent USB Multi Touch ILITEK EETI Capacitive Touch Screen Panel Solution

15” Capacitive Touch Screen Panel

Transparent USB Capacitive Touch Screen Panel

Pcap Capacitive Touch Screen Panel

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8066 150

Contact Us
Request A Quote
Product Details
Features:
IK10, Waterproof IP65
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
15 Inch
Width:
287mm
Drive IC:
EETI/ILIEK/SIS
Product Name:
15 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

15” Capacitive Touch Screen Panel

,

Transparent USB Capacitive Touch Screen Panel

,

Pcap Capacitive Touch Screen Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$19.22/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Product Description: The 15" Pcap Transparent USB Multi Touch ILITEK EETI Capacitive Touch Screen Panel Solution offers an advanced touch input solution for various applications. Designed with ILITEK and EETI Pcap (Projected Capacitive) technology, this touch screen panel provides accurate and responsive touch interactions, making it ideal for interactive displays, kiosks, and other touch-enabled devices.



Item
15 Inch G+G Capacitive Touch Panel
Ratio
4:3
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB
Lens OD
287*176mm
Sensor OD
270*159mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features:

  • Multi-Touch Capability: Supports multi-touch functionality, allowing users to perform gestures such as pinch-to-zoom and swipe with precision and ease.
  • ILITEK EETI Pcap Technology: Utilizes ILITEK and EETI Pcap technology for enhanced touch sensitivity and accuracy.
  • Transparent Design: Features a transparent design that seamlessly integrates with existing display systems without obstructing the view or compromising aesthetics.
  • USB Interface: Equipped with a USB interface for easy connectivity to a wide range of devices, including computers, tablets, and interactive kiosks.
  • Customizable: Offers customization options for size, shape, and touch sensitivity to meet specific requirements and integration needs.
  • High-Quality Construction: Constructed with high-quality materials for durability and reliability, ensuring long-term performance in various environments.

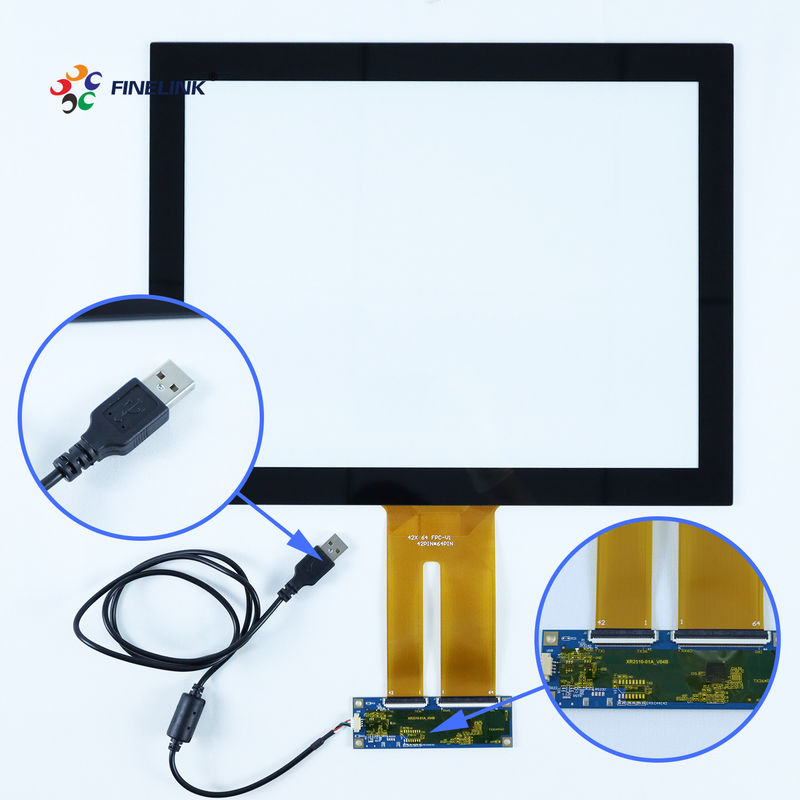

15" Pcap Transparent USB Multi Touch ILITEK EETI Capacitive Touch Screen Panel Solution 0

Application Scenarios:

  • Interactive Displays: Used in interactive displays for museums, exhibitions, and retail environments to provide engaging and immersive user experiences.
  • Self-Service Kiosks: Deployed in self-service kiosks for ticketing, information, and ordering systems in transportation hubs, restaurants, and retail stores.
  • Gaming and Entertainment: Integrated into gaming consoles, arcade machines, and entertainment systems to enable intuitive touch-based controls and interactions.

Customization Services:

  • Size and Shape: Customization of panel size and shape to fit specific display requirements and installation spaces.
  • Touch Sensitivity: Adjustment of touch sensitivity levels to accommodate different applications and user preferences.
  • Integration Support: Assistance with integration into existing display systems, including compatibility testing and firmware/software customization.

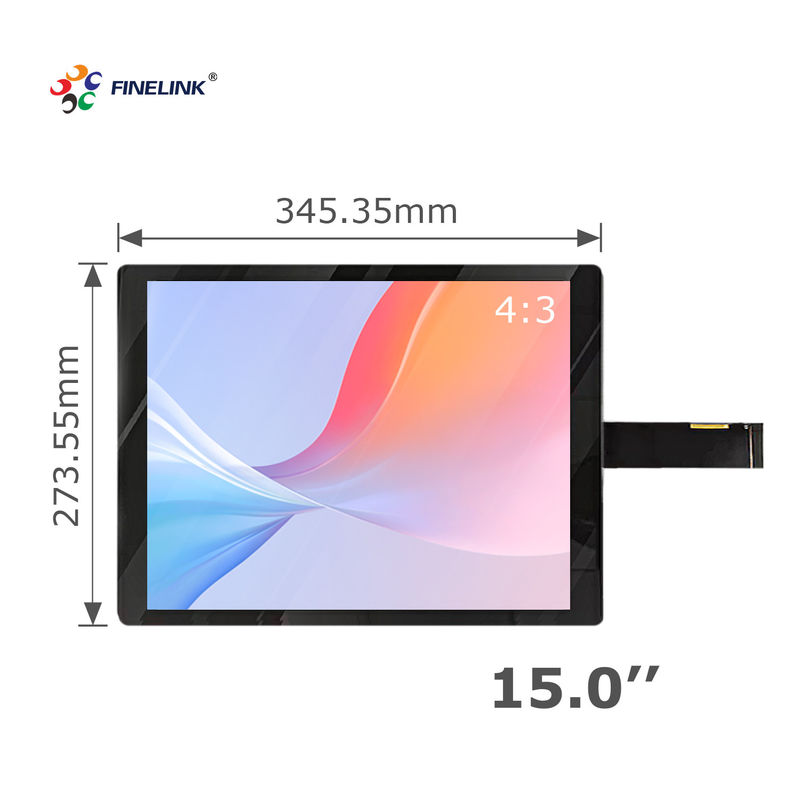

15" Pcap Transparent USB Multi Touch ILITEK EETI Capacitive Touch Screen Panel Solution 1

Packaging and Shipping:

  • Secure Packaging: Each touch screen panel is carefully packaged with protective materials to prevent damage during transportation and ensure it arrives in pristine condition.
  • Reliable Shipping: Utilizes reliable shipping services to deliver orders safely and efficiently to customers worldwide, with tracking information provided for peace of mind.

FAQ:

  1. Is the touch screen panel compatible with Windows and Mac operating systems? Yes, the touch screen panel supports plug-and-play functionality with Windows, Mac, and other major operating systems that recognize USB input devices.

  2. Can the touch sensitivity be adjusted to accommodate different applications? Yes, we offer customization options to adjust touch sensitivity levels based on specific application requirements and user preferences.

  3. Does the transparent design affect the visibility of the display content? No, the transparent design of the touch screen panel ensures that display content remains fully visible, providing a seamless user experience.

  4. What is the warranty period for the touch screen panel? The touch screen panel is backed by a standard warranty period, with optional extended warranty plans available for additional peace of mind.

  5. Is technical support available for integration and troubleshooting? Yes, we provide technical support and assistance for integration into existing systems, as well as troubleshooting assistance for any issues that may arise.
