Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch

Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch

Tempered Glass PCAP Touch Panel

PCAP Touch Panel Customized

Tempered Glass Android Touch Panel

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8066 150

Contact Us
Request A Quote
Product Details
Features:
IK10, Waterproof IP65
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
15 Inch
Drive IC:
EETI/ILIEK/SIS
Product Name:
15 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

Tempered Glass PCAP Touch Panel

,

PCAP Touch Panel Customized

,

Tempered Glass Android Touch Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$19.22/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Product Description

The Tempered Glass PCAP Touch Panel is a versatile and customizable 15-inch touchscreen designed for a wide range of applications. It features a Projected Capacitive (PCAP) touch technology and comes with an option for a customized Android operating system. The robust tempered glass construction ensures durability and reliability, making it suitable for both commercial and industrial environments.

Item
15 Inch G+G Capacitive Touch Panel
Ratio
4:3
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB

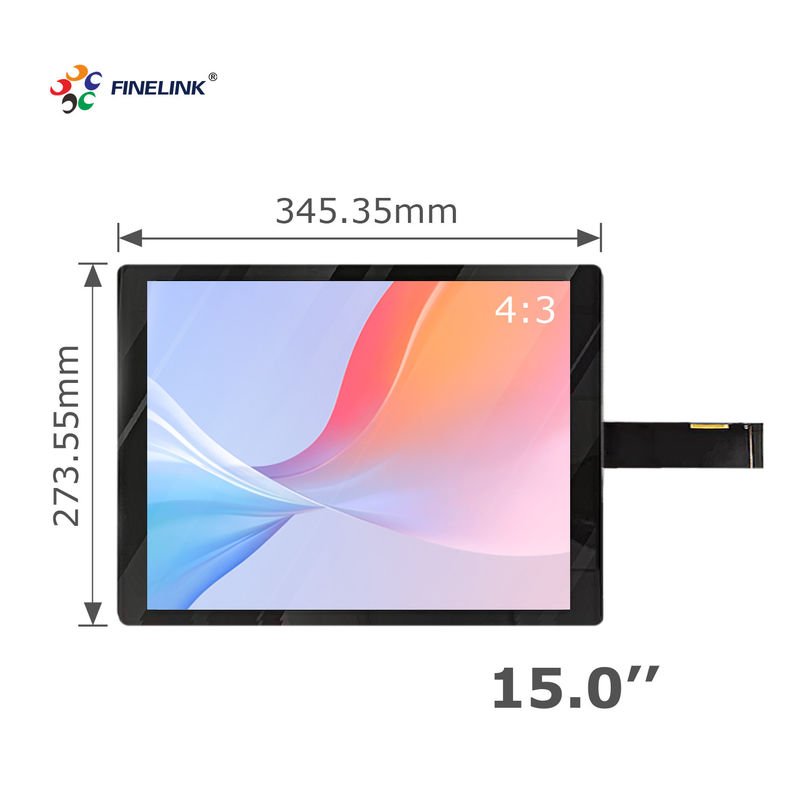

Lens OD
345.35*273.55mm
Sensor OD
303.99*227.99mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Tempered Glass Construction: Provides enhanced durability and resistance to scratches and impacts.
  • PCAP Technology: Ensures precise and responsive multi-touch functionality, supporting up to 10 touch points.
  • Customizable Android OS: Tailored Android operating system to meet specific application needs and user preferences.
  • High Resolution Display: Offers clear and vibrant visuals with high resolution and brightness levels.
  • Wide Viewing Angle: Ensures excellent visibility from different angles, making it suitable for collaborative settings.
  • Easy Integration: Designed for seamless integration with various systems and devices through USB and other interfaces.

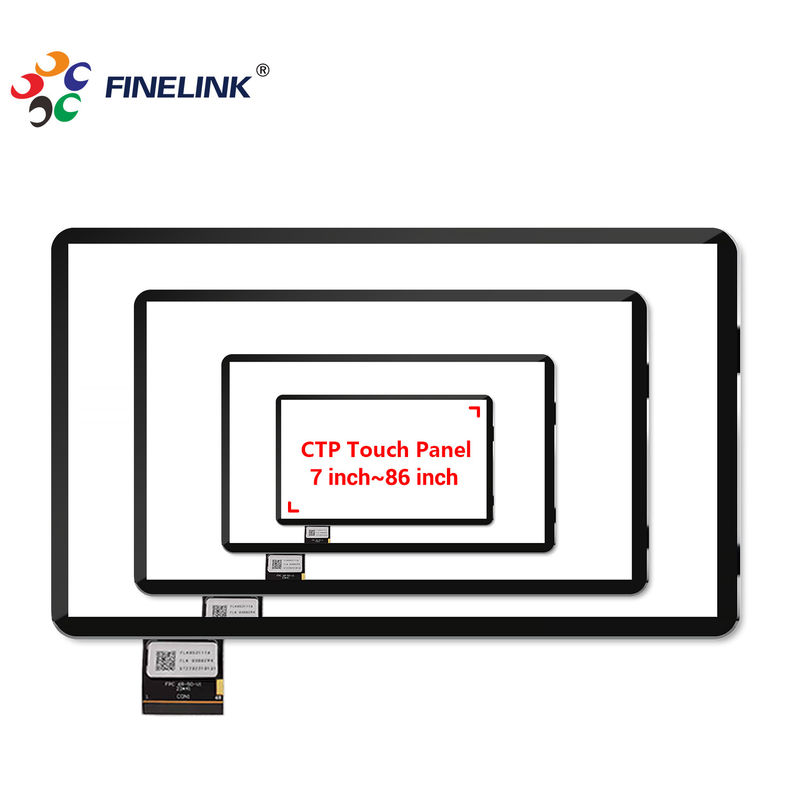

Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch 0

Application Scenarios

  • Retail and Point-of-Sale Systems: Ideal for interactive product displays, self-service kiosks, and point-of-sale terminals.
  • Industrial Control Panels: Perfect for industrial environments where durability and touch precision are crucial.
  • Healthcare Devices: Suitable for medical equipment that requires reliable touch interaction and robust construction.
  • Education and Training: Useful in educational settings for interactive learning tools and training modules.
  • Public Information Displays: Great for information kiosks in public spaces like airports, museums, and shopping malls.

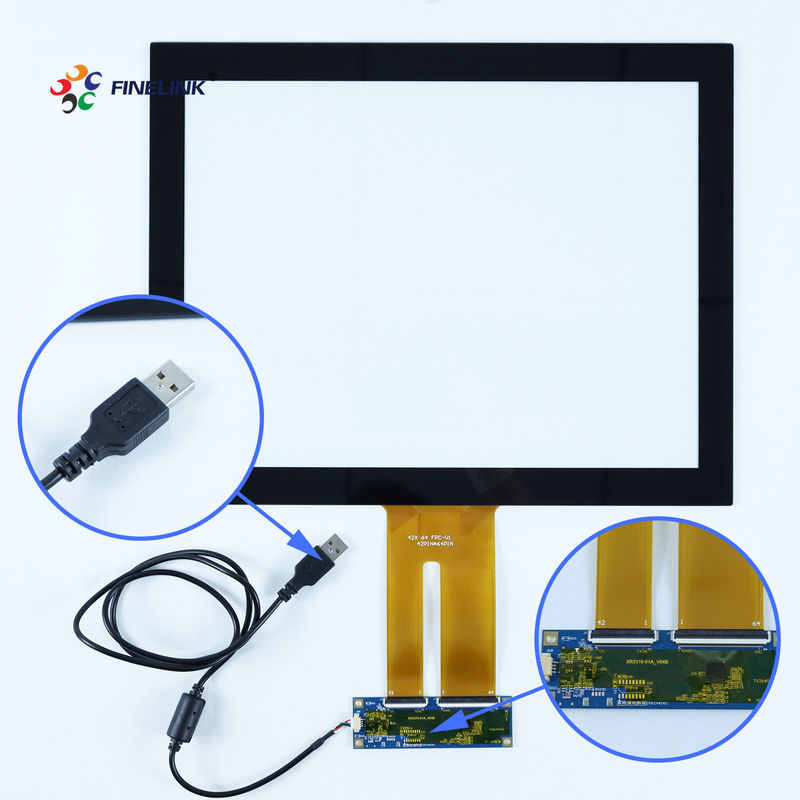

Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch 1

Customization Services

  • Operating System Customization: Tailor the Android OS to meet specific application requirements and user interface preferences.
  • Screen Size and Resolution: Customizable screen sizes and resolutions to fit various project needs.
  • Touch Sensitivity: Adjustable touch sensitivity settings to accommodate different use cases and environments.
  • Branding Options: Custom branding on the touch panel and packaging to enhance brand visibility and recognition.
  • Additional Features: Options for anti-glare coating, waterproofing, and different mounting solutions.

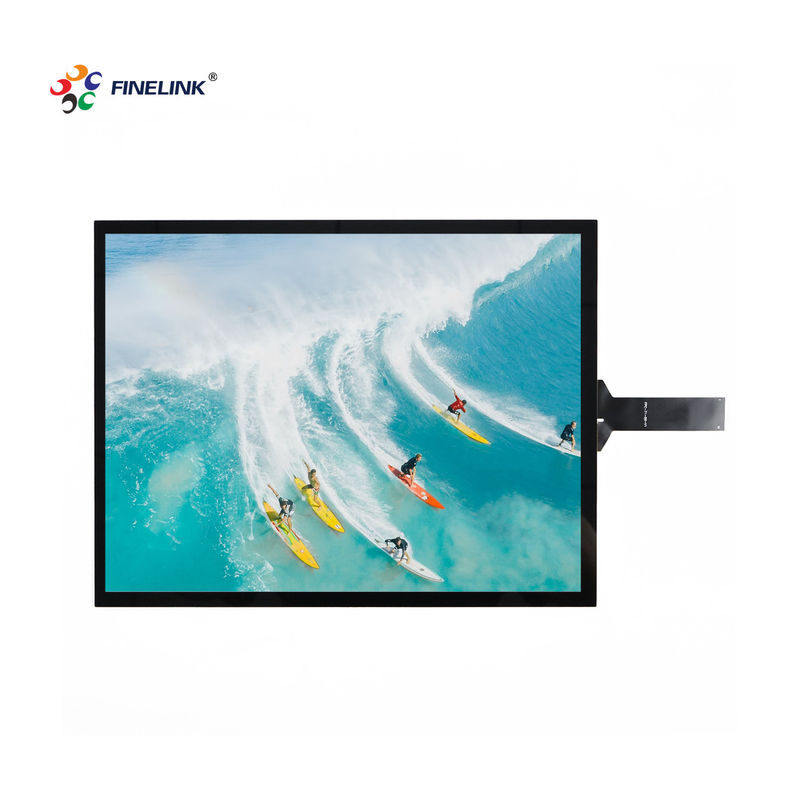

Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch 2
Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch 3
Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch 4

Packaging and Shipping

  • Secure Packaging: Each unit is securely packaged to prevent damage during transit, ensuring it arrives in perfect condition.
  • Custom Packaging: Branding options for packaging to match your company's identity.
  • Efficient Shipping: Reliable and timely shipping options to ensure prompt delivery to any location worldwide.
  • Eco-Friendly Materials: Environmentally friendly packaging materials used to minimize environmental impact.

FAQ

Q: Is the touchscreen compatible with other operating systems besides Android?
A: Yes, the touchscreen can be configured to work with other operating systems, such as Windows and Linux, depending on your requirements.

Q: Can the touch panel be used in outdoor environments?
A: Yes, with the appropriate customizations such as waterproofing and enhanced brightness, it can be used in outdoor settings.

Q: How do I clean the tempered glass surface?
A: The tempered glass surface can be cleaned with a soft, damp cloth. For tougher stains, a mild detergent can be used. Avoid abrasive cleaners that could damage the surface.

Q: What is the warranty period for this touch panel?
A: The touch panel comes with a standard one-year warranty. Extended warranty options are available upon request.

Q: Can the touch sensitivity be adjusted?
A: Yes, the touch sensitivity can be adjusted to meet specific user needs and application requirements.

Q: Is technical support available for integration and setup?
A: Yes, we offer comprehensive technical support to assist with integration and setup, ensuring smooth implementation of the touch panel into your system.

Tempered Glass PCAP Touch Panel Customized OS Android 15 Inch 5
