Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM

Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM

Linux Capacitive Touch Screen

Linux Touch Screen Panel

ATM Touch Screen Panel

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8063 133

Contact Us
Request A Quote
Product Details
Length:
335mm
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
13.3 Inch
Drive IC:
EETI/ILIEK/SIS
Product Name:
13.3 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
IC:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

Linux Capacitive Touch Screen

,

Linux Touch Screen Panel

,

ATM Touch Screen Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$15.37/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

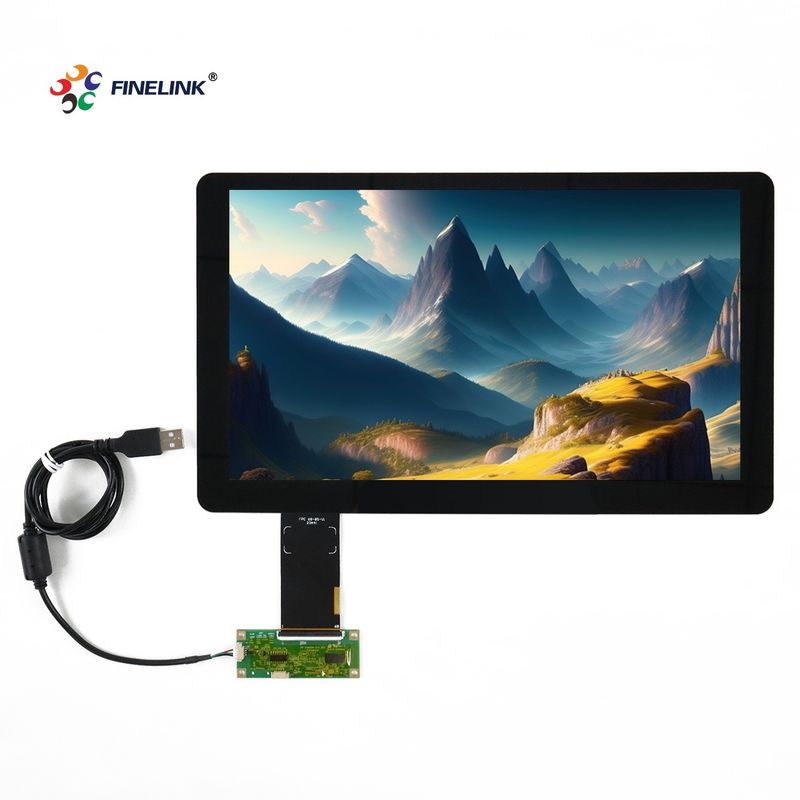

The 13.3 Inch IP65 LCD EETI Industrial PCAP Capacitive Touch Screen is a robust and high-performance display designed for industrial environments. With an IP65 rating, this touchscreen offers excellent protection against dust and water, making it ideal for use in harsh conditions. The EETI controller ensures precise and responsive touch functionality, making this touch screen perfect for various industrial applications.

Item
13.3 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB

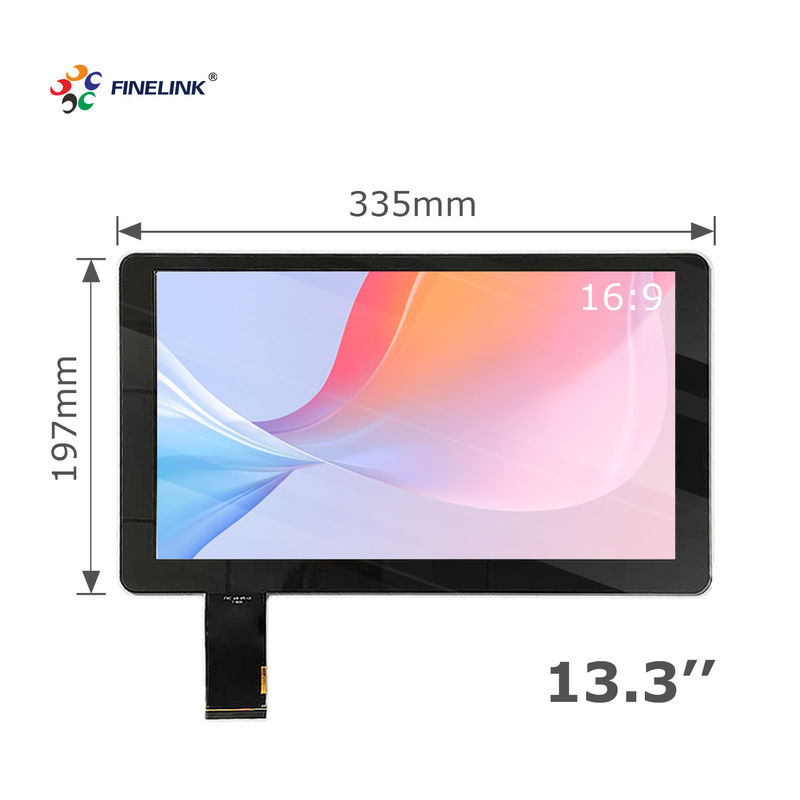

Lens OD
335*197mm
Sensor OD
307.88*181.12mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • IP65 Rating: Provides strong resistance against dust and water, ensuring reliable operation in challenging environments.
  • PCAP Technology: Projected Capacitive (PCAP) touch technology delivers accurate and responsive multi-touch capabilities.
  • EETI Controller: Integrated EETI touch controller for enhanced performance and reliability.
  • High-Quality LCD: 13.3-inch display with high resolution and vibrant colors, suitable for detailed visual applications.
  • Durable Construction: Built with industrial-grade materials to withstand tough conditions and prolonged use.
  • Wide Temperature Range: Designed to operate efficiently in a broad range of temperatures, suitable for various industrial settings.

Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM 0

Application Scenarios

  • Industrial Automation: Perfect for use in factory automation systems, control panels, and HMI (Human-Machine Interface) applications.
  • Outdoor Kiosks: Suitable for outdoor information kiosks and interactive terminals due to its waterproof and dustproof design.
  • Medical Equipment: Ideal for medical devices that require reliable and precise touch input, such as patient monitoring systems.
  • Retail and Point-of-Sale: Can be used in retail environments for point-of-sale systems and interactive product displays.
  • Transportation: Suitable for use in public transportation systems for ticketing machines and information displays.

Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM 1

Customization Services

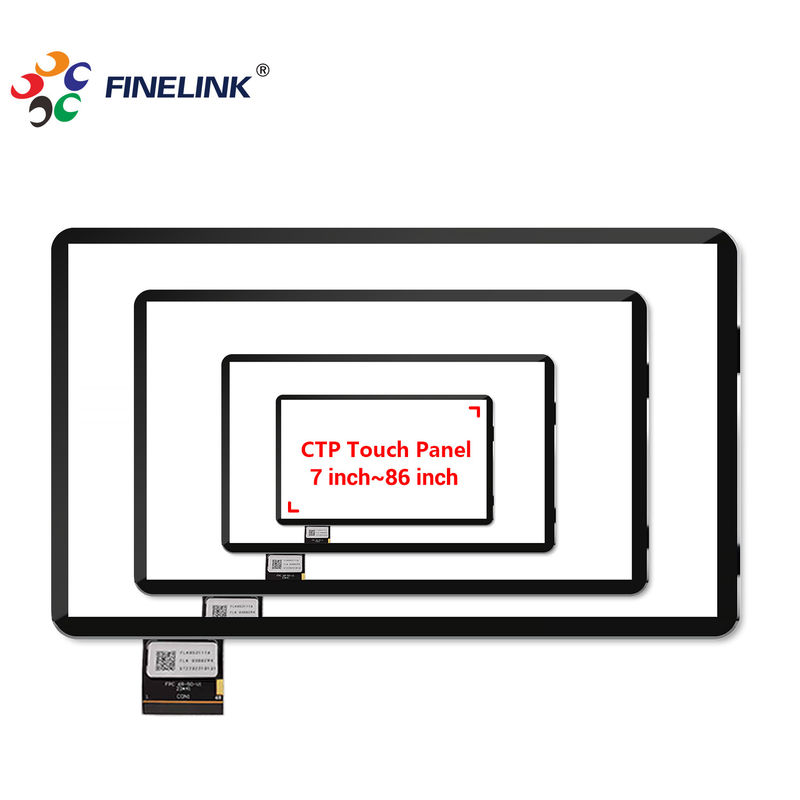

  • Screen Size and Resolution: Options to customize screen size and resolution according to specific requirements.
  • Mounting Solutions: Custom mounting options available, including VESA mounts and bespoke enclosures.
  • Touch Sensitivity: Adjustable touch sensitivity to cater to different application needs.
  • Branding: Custom branding options for the bezel and packaging to align with corporate identity.
  • Additional Features: Options to add features such as anti-glare coatings, tempered glass, and custom interface connectors.
Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM 2
Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM 3
Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM 4

Packaging and Shipping

  • Secure Packaging: Monitors are securely packaged to prevent damage during shipping, using protective materials and sturdy boxes.
  • Custom Packaging Options: Custom packaging available to meet specific branding and presentation requirements.
  • Global Shipping: Reliable and timely shipping options to customers worldwide, ensuring fast delivery.
  • Environmentally Friendly: Use of eco-friendly packaging materials whenever possible to minimize environmental impact.

FAQ

Q: Is the touch screen compatible with both Windows and Linux operating systems?
A: Yes, the touch screen is compatible with both Windows and Linux operating systems, offering versatile application possibilities.

Q: Can this touch screen be used outdoors?
A: Yes, with its IP65 rating, this touch screen is suitable for outdoor use, providing resistance against dust and water.

Q: What type of interface does this touch screen use?
A: The touch screen uses a USB interface, making it easy to connect to various devices and systems.

Q: How do I clean the touch screen?
A: The touch screen can be cleaned with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials to prevent damage.

Q: Does the touch screen support multi-touch functionality?
A: Yes, the touch screen supports multi-touch functionality, allowing for intuitive and responsive touch interactions.

Q: What is the warranty period for this touch screen?
A: The touch screen comes with a standard one-year warranty, with options to extend the warranty period upon request.

Linux Capacitive Touch Screen Panel For Advertising Machine/POS/ATM 5
