Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063 133

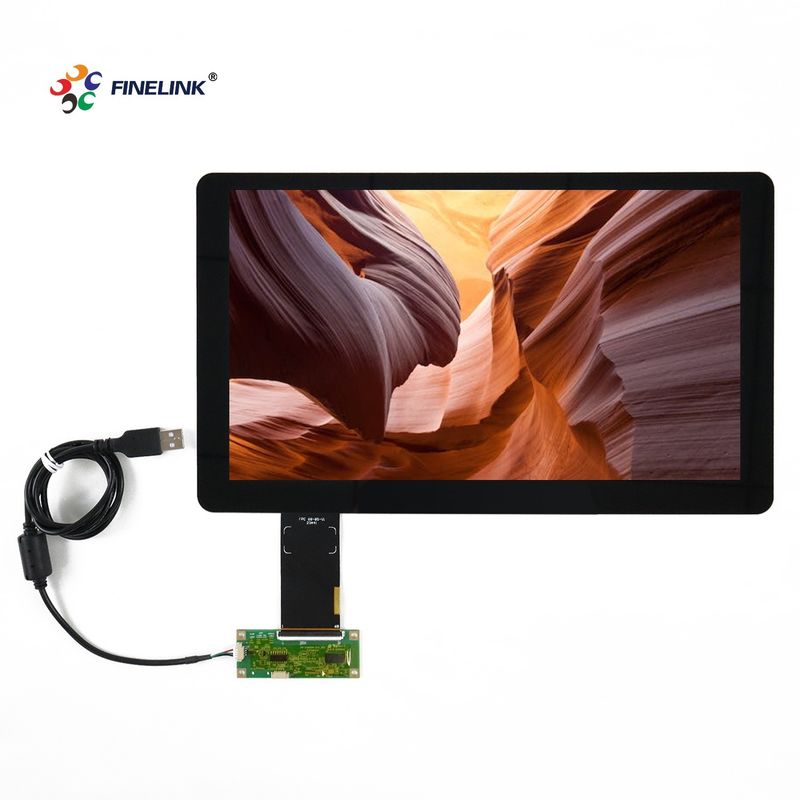

The 13.3 Inch IP65 LCD EETI Industrial PCAP Capacitive Touch Screen is a robust and high-performance display designed for industrial environments. With an IP65 rating, this touchscreen offers excellent protection against dust and water, making it ideal for use in harsh conditions. The EETI controller ensures precise and responsive touch functionality, making this touch screen perfect for various industrial applications.
Item
|
13.3 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

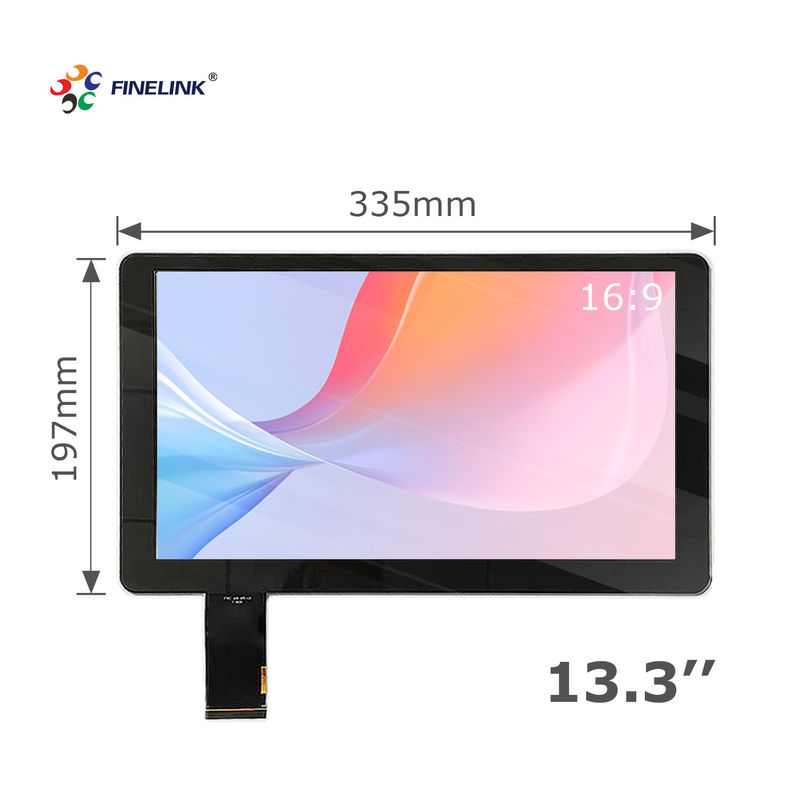

Lens OD
|
335*197mm
|
Sensor OD
|
307.88*181.12mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is the touch screen compatible with both Windows and Linux operating systems?
A: Yes, the touch screen is compatible with both Windows and Linux operating systems, offering versatile application possibilities.
Q: Can this touch screen be used outdoors?
A: Yes, with its IP65 rating, this touch screen is suitable for outdoor use, providing resistance against dust and water.
Q: What type of interface does this touch screen use?
A: The touch screen uses a USB interface, making it easy to connect to various devices and systems.
Q: How do I clean the touch screen?
A: The touch screen can be cleaned with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials to prevent damage.
Q: Does the touch screen support multi-touch functionality?
A: Yes, the touch screen supports multi-touch functionality, allowing for intuitive and responsive touch interactions.
Q: What is the warranty period for this touch screen?
A: The touch screen comes with a standard one-year warranty, with options to extend the warranty period upon request.
