Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063 133

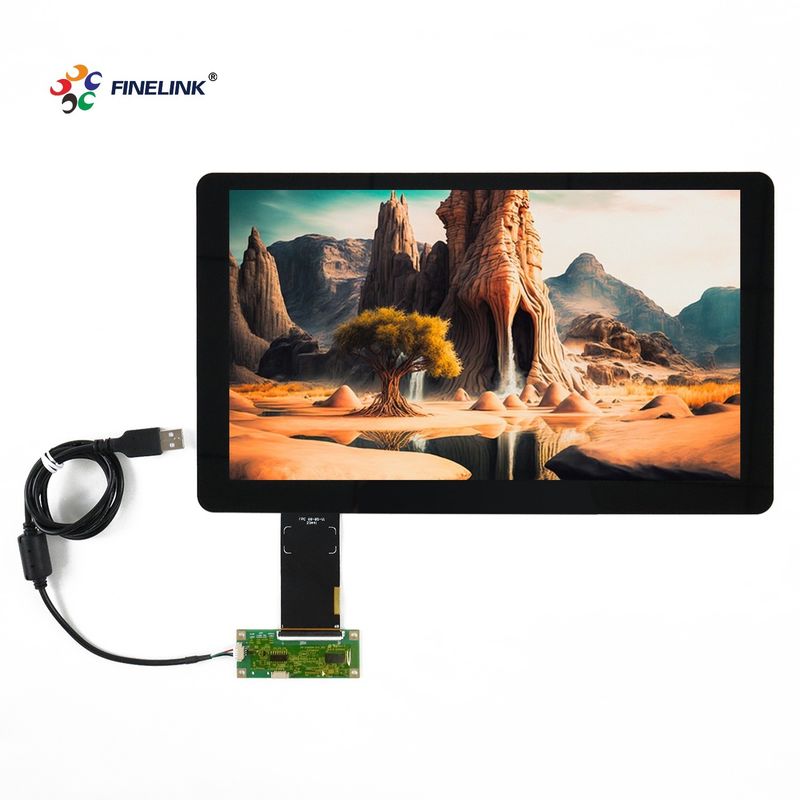

The Tempered Glass 13.3 Inch Multi Point Touch Projected Capacitive Touch Panel is a high-quality touch screen solution designed for various applications. Featuring a tempered glass construction and multi-point touch functionality, this touch panel delivers durability, responsiveness, and accuracy for an enhanced user experience.
Item
|
13.3 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

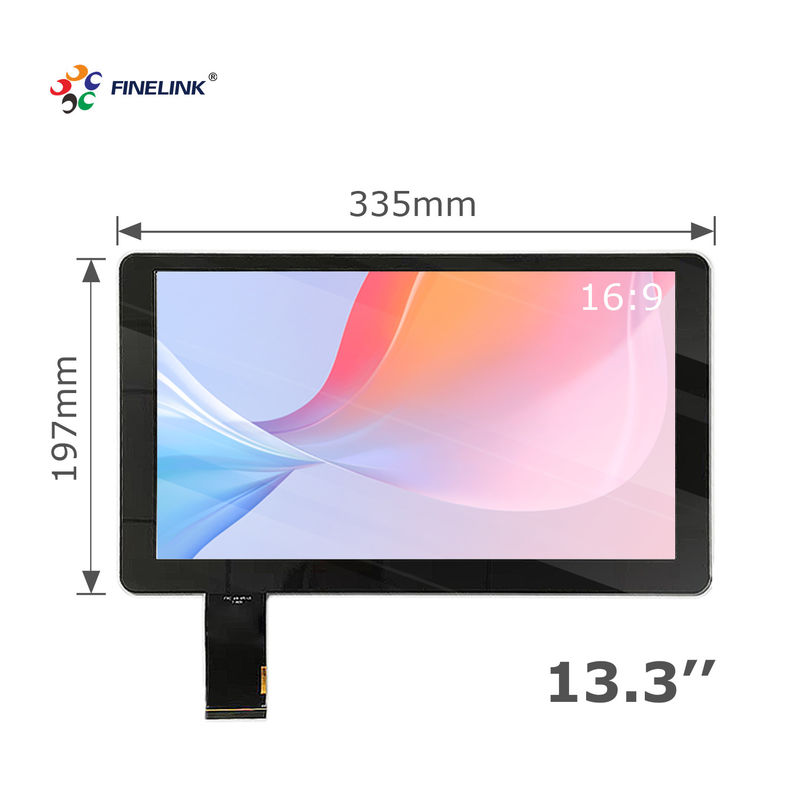

Lens OD
|
335*197mm
|
Sensor OD
|
307.88*181.12mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Can this touch panel be used with gloves or stylus pens?
A: Yes, the projected capacitive technology allows for touch input with gloves or stylus pens, providing flexibility and versatility in usage.
Q: Is the touch panel compatible with Windows 10?
A: Yes, the touch panel is compatible with Windows 10 as well as other popular operating systems, including Windows 7, 8, Linux, and Android.
Q: What is the maximum number of touch points supported by this panel?
A: This touch panel supports multi-point touch with up to 10 simultaneous touch points, allowing for advanced gestures and interactions.
Q: Can the touch panel withstand harsh industrial environments?
A: Yes, the tempered glass construction and robust design make the touch panel suitable for use in harsh industrial environments, providing reliable performance even in demanding conditions.
Q: How do I calibrate the touch panel if needed?
A: The touch panel comes with calibration software that allows for easy and precise calibration to ensure accurate touch input. Calibration instructions are provided in the user manual.
