Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063 133
The 13.3 Inch Multi Point Touch USB/I2C Screen Panel is a high-performance capacitive touch screen designed for a variety of applications. With advanced multi-touch technology, this screen panel offers superior touch accuracy and responsiveness. It features both USB and I2C interfaces, providing flexible connectivity options for different devices and systems.
Item
|
13.3 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

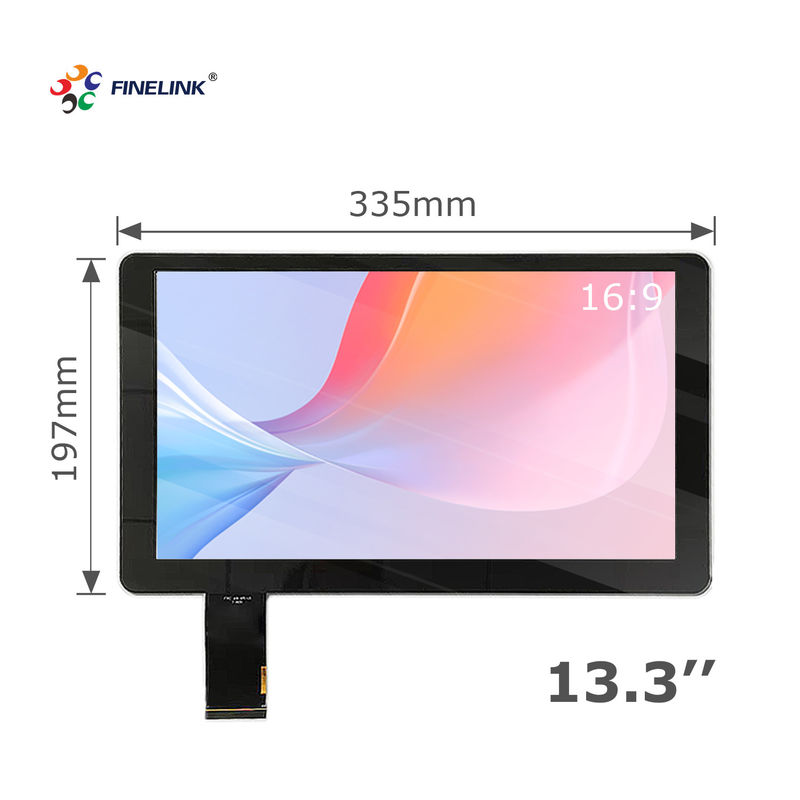

Lens OD
|
335*197mm
|
Sensor OD
|
307.88*181.12mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: What devices are compatible with this touch screen panel?
A: This touch screen panel is compatible with a wide range of devices, including PCs, tablets, industrial control systems, and more, thanks to its USB and I2C interfaces.
Q: How do I install the touch screen panel?
A: The touch screen panel can be easily installed by connecting it to your device using the provided USB or I2C interface. Detailed installation instructions are included in the package.
Q: Is the touch screen panel resistant to scratches and wear?
A: Yes, the touch screen panel is made from durable materials that are resistant to scratches and wear, ensuring long-lasting performance.
Q: Can the touch sensitivity be adjusted?
A: Yes, the touch sensitivity can be customized to suit different application needs. Please contact our support team for more information on customization options.
Q: What is the warranty period for this touch screen panel?
A: The touch screen panel comes with a standard one-year warranty. Extended warranty options are also available.
Q: Is technical support available for this product?
A: Yes, we offer comprehensive technical support for all our products. You can contact our support team for assistance with installation, troubleshooting, and customization.
