Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8069 156

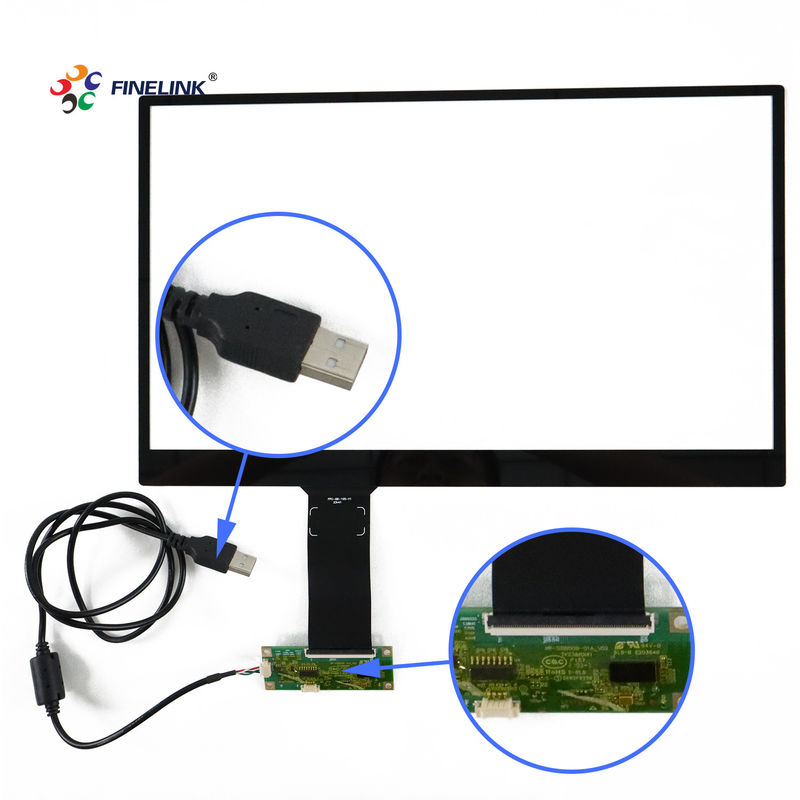

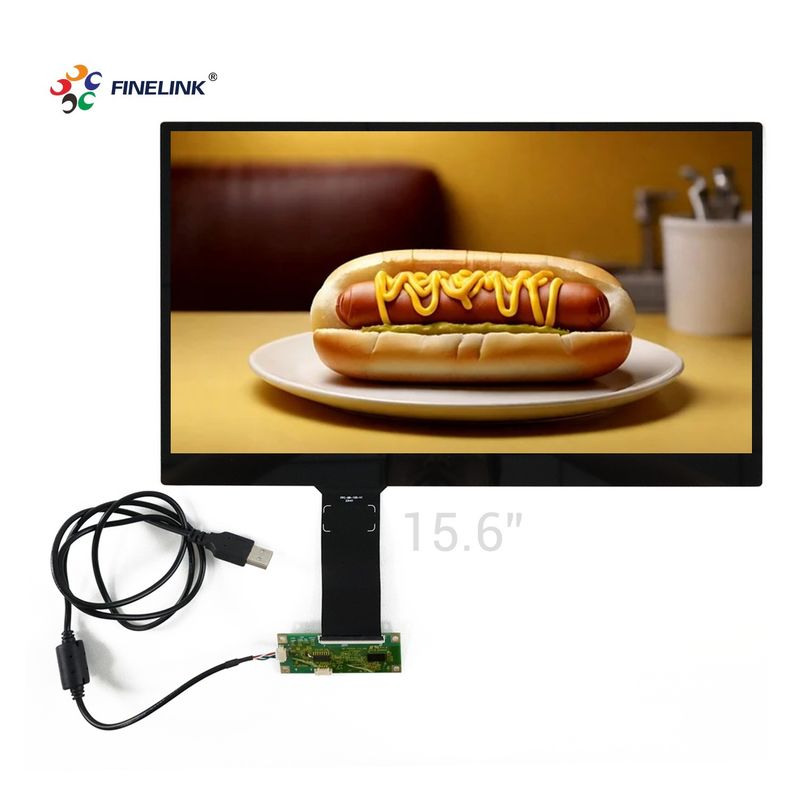

Product Description: The FINELINK OEM/ODM 15.6-inch Customized PCAP Touch Screen is a cutting-edge interactive display solution designed to meet diverse project requirements. Engineered with advanced PCAP technology and boasting a brightness of 350cd/m², this touch screen delivers exceptional performance and versatility for various applications.
Item
|
15.6 Inch Capacitive Touch Panel
|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
287*176mm
|
Sensor OD
|
270*159mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Product Features:
Application Scenarios:
Customization Services:
Packaging and Shipping:
FAQ:
Can the touch screen be customized for specific interface compatibility? Yes, we offer customization options for interface compatibility, including USB, HDMI, RS232, and I2C, to suit different devices and systems.
Is the touch screen suitable for outdoor use? Yes, the touch screen features a high brightness of 350cd/m², making it suitable for outdoor and high-ambient-light environments.
What customization options are available for touch panel size? We provide customization options for touch panel size to accommodate specific enclosure designs and display requirements.
Do you offer firmware development services? Yes, we provide firmware development services to optimize touch performance and compatibility with specific operating systems and applications.
How are the touch screens packaged for shipping? Each touch screen is securely packaged with protective materials to prevent damage during transit and ensure it arrives in perfect condition.
