Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063 133

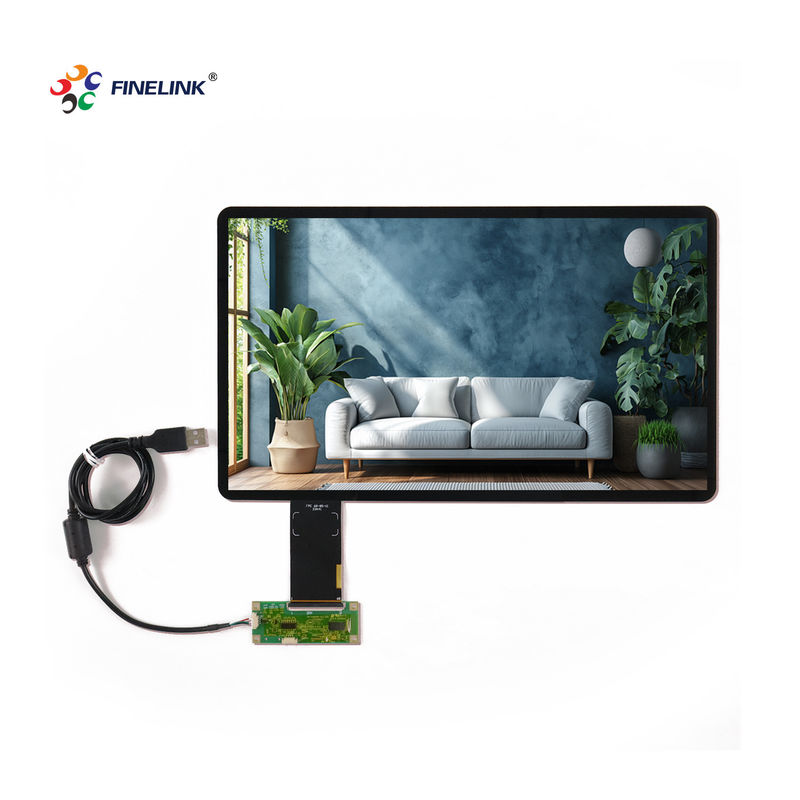

The 13.3 Inch PCAP Touch Screen is designed with a Glass-Glass (G+G) structure and features FPC (Flexible Printed Circuit) and IC (Integrated Circuit) components, making it a high-performance touch solution for various display applications. This touch screen is ideal for interactive displays, providing precise and responsive touch capabilities with superior durability and clarity.
Item
|
13.3 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

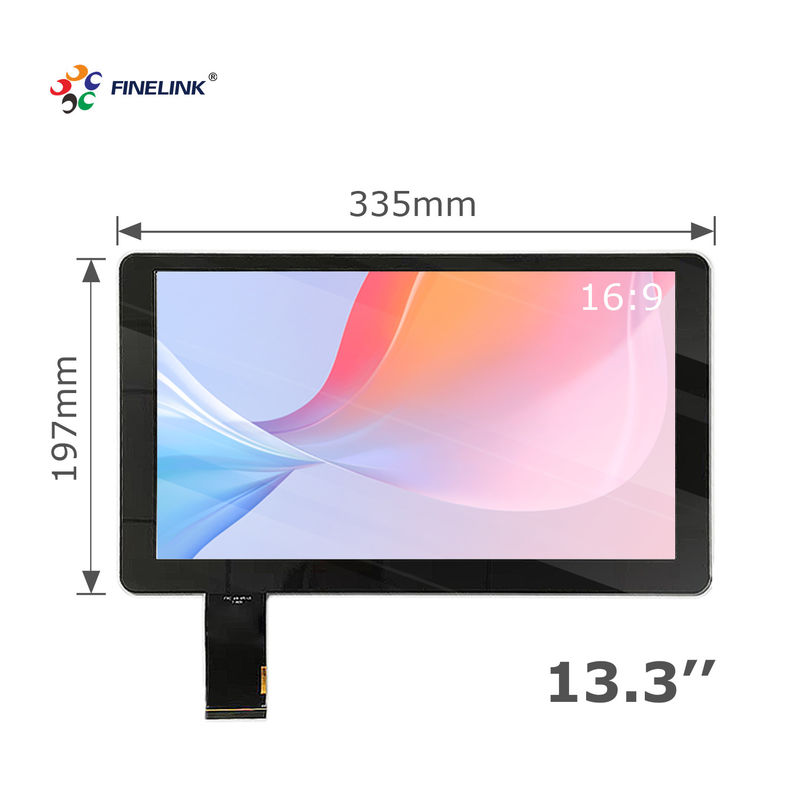

Lens OD
|
335*197mm
|
Sensor OD
|
307.88*181.12mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch screen compatible with all operating systems?
A: Yes, the touch screen is compatible with major operating systems including Windows, Linux, and Android.
Q: Can the touch screen be used outdoors?
A: Yes, with appropriate sealing and protection, the touch screen can be used in outdoor environments.
Q: What is the operating temperature range?
A: The touch screen is designed to operate within a temperature range of -10°C to 60°C.
Q: How do I clean the touch screen?
A: Use a soft, lint-free cloth and a mild cleaning solution. Avoid using harsh chemicals or abrasive materials.
Q: Is the touch screen waterproof?
A: The touch screen itself is not waterproof, but it can be integrated into waterproof enclosures for outdoor or wet environment use.
Q: What kind of warranty is offered?
A: We offer a standard one-year warranty with options for extended warranties based on customer needs.
Q: Can this touch screen support custom firmware?
A: Yes, custom firmware can be supported to meet specific application requirements.
