USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65

USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65

USB Multi Touch Screen 1

11.6 Inch Industrial Touch Panel

USB Industrial Touch Panel

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8061 116

Contact Us
Request A Quote
Product Details
Features:
IK10, Waterproof IP65
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
11.6 Inch
Width:
287mm
Drive IC:
EETI/ILIEK/SIS
Product Name:
11.6 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

USB Multi Touch Screen 1

,

11.6 Inch Industrial Touch Panel

,

USB Industrial Touch Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$13.84/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Product Description

11.6-Inch IP65 Waterproof USB Touchscreen for Industrial Touch Panels

Overview: Introducing our versatile 11.6-inch IP65 waterproof touchscreen designed specifically for industrial touch panels. With its rugged construction and waterproof design, this touchscreen is built to withstand harsh industrial environments while providing seamless touch interaction. Whether used in factories, warehouses, or manufacturing plants, it's the perfect solution for industrial touch panel applications.

Specification
Item 11.6 Inch G+G Capacitive Touch Panel
Ratio 16:9
Structure G+G
Type Capacitive
Touch controller EETI/ILITEK
Connection COB

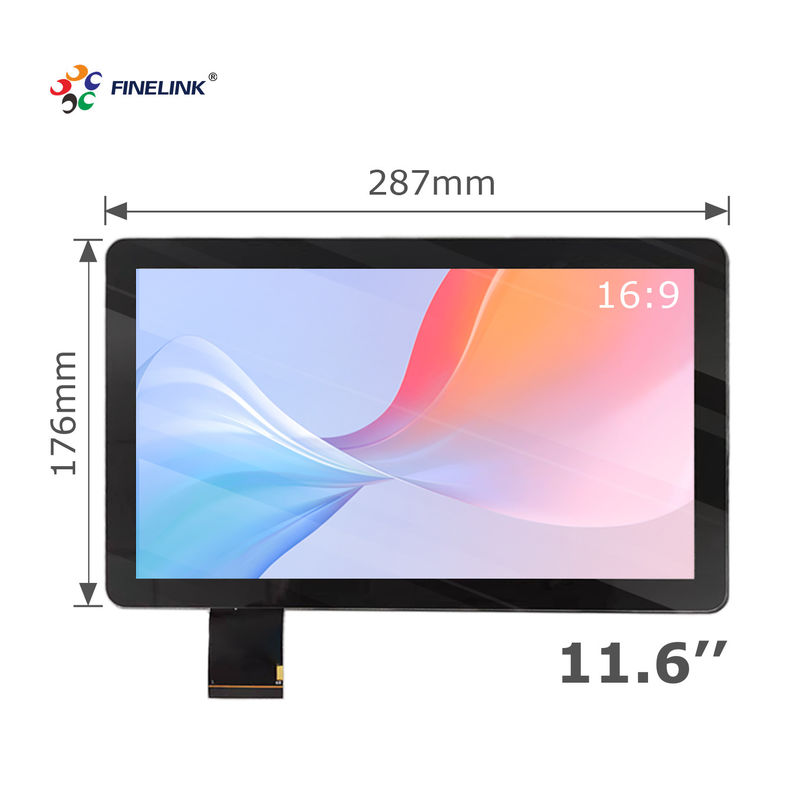

Lens OD 287*176mm
Sensor OD 270*159mm
Cover glass(T) 3mm
SENSOR(T) 0.7mm
Surface hardness ≥6H
Transmittance ≥85%
Touch points 10 Points
Operating Temperature -20℃ ~ +60℃
Interface Type USB, RS232, I2C
Color Black,White,Transparent,Colors Optional
Customized AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system WinXP/7/8/10,Android,IOS,Mac,Linux
Application Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty 12 Months(3 years maximum)

USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65 0

Key Features:

IP65 Waterproof Rating: Engineered to endure harsh industrial environments, this touchscreen boasts an IP65 waterproof rating. It can withstand exposure to water, dust, and other contaminants, ensuring reliable performance even in challenging conditions.



11.6-Inch Touchscreen: Featuring an 11.6-inch touchscreen display, this panel offers ample screen real estate for intuitive touch interactions. Whether navigating complex interfaces or inputting data, users can do so with ease and precision.



USB Connectivity: With a USB connection, this touchscreen offers easy plug-and-play compatibility with a wide range of industrial devices and systems. Installation is hassle-free, allowing for quick setup and seamless integration into existing systems.



Multi-Functionality: Designed for versatility, this touchscreen supports a variety of industrial applications. From machine control panels and HMI (Human-Machine Interface) systems to production monitoring and quality control, it enhances productivity and efficiency across industrial processes.



USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65 1
USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65 2
USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65 3

Applications:

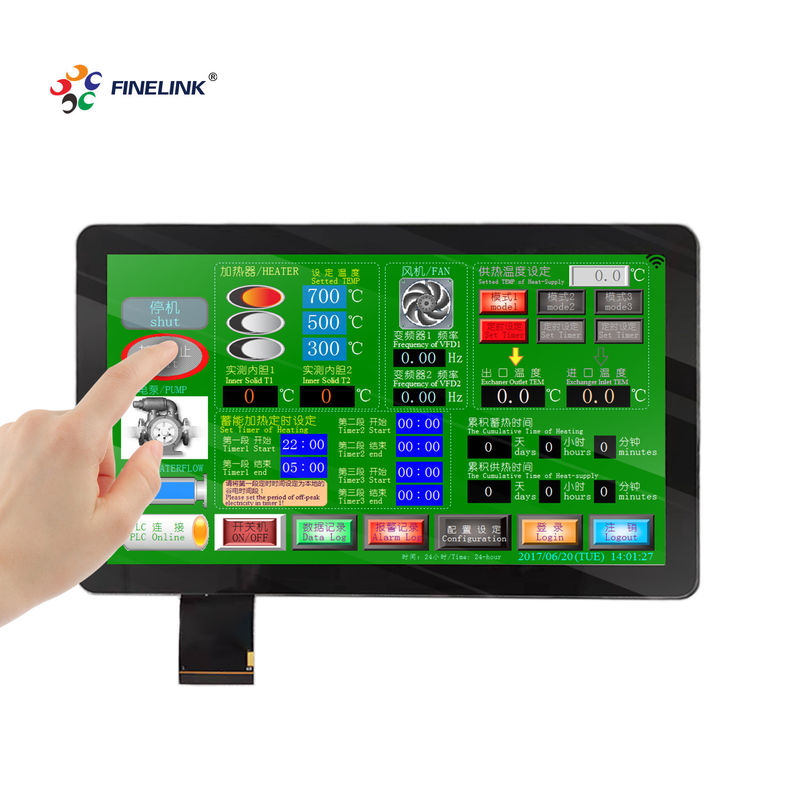

Machine Control Panels: Improve control and operation of machinery and equipment with intuitive touch interfaces. Operators can easily monitor performance, adjust settings, and troubleshoot issues using the touchscreen interface.



HMI Systems: Enhance the user experience of HMI systems with responsive touch controls. Engineers and operators can interact with industrial processes, access real-time data, and make informed decisions for optimal performance.



Production Monitoring: Monitor production processes and track key metrics with interactive touch displays. Gain insights into production efficiency, downtime, and quality control measures to optimize operations and maximize output.



Quality Control: Streamline quality control processes with touch-enabled interfaces for inspection and testing. Operators can input data, record measurements, and perform quality checks with precision and efficiency using the touchscreen interface.



Warehouse Management: Improve efficiency in warehouse operations with touch-enabled inventory management systems. Warehouse staff can easily track inventory, manage orders, and fulfill shipments using the touchscreen interface.

USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65 4
Experience reliability and versatility with our 11.6-inch IP65 waterproof touchscreen for industrial touch panels. Built to withstand harsh environments, this touchscreen offers seamless touch interaction and multi-functionality, making it the ideal solution for a wide range of industrial applications.

FAQ
Q1: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer specializing in PCAP more than 10 years, with 30000 m2 production facilities located in ShenZhen, Guangdong Province and Wuxue, HuBei Province.

Q2: What is your MOQ?
A: We have no MOQ requirement for our standard models, For customized models, There are different MOQ requirements depends on the size and complexity of customization.

Q3: How long is the warranty period?
A: Generally the warranty period is three years. It depends on different products.

Q4: What is the delivery time of the products?
A: Standard samples in stock can be delivered within 3 days after we received the payment. 7-15 workdays for the customized samples. 15-20 workdays for mass production.

Q5: What is your shipping method?
A: DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer.

Q6: What is the products application?
A:Widely used in commercial display, education, industrial control, medical, automotive, smart home ,optical bonding and other fields.
USB Multi Touch Screen 11.6 Inch Industrial Touch Panel Waterproof IP65 5
