Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8066 150

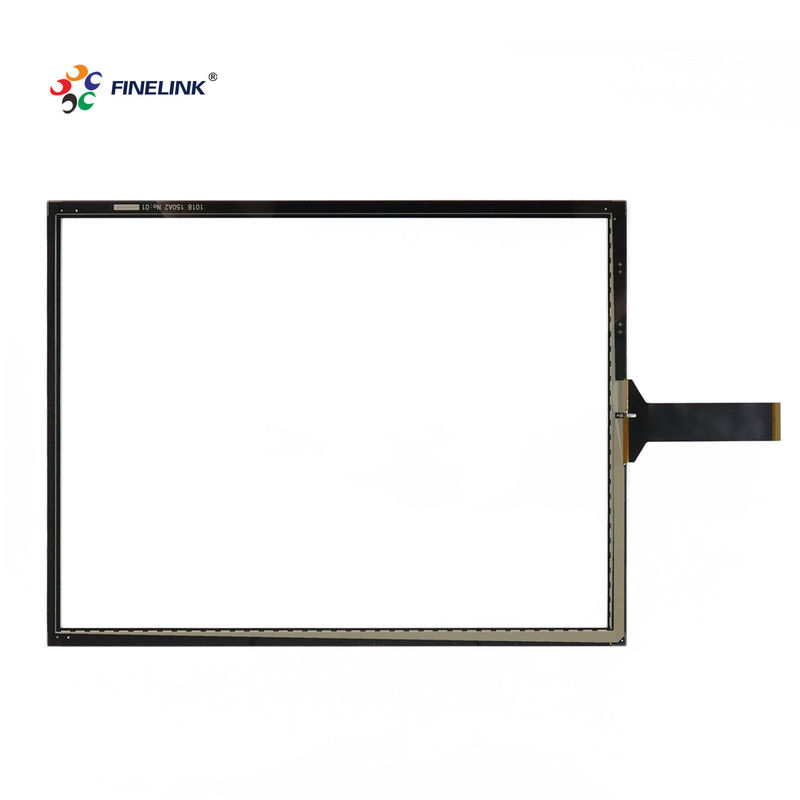

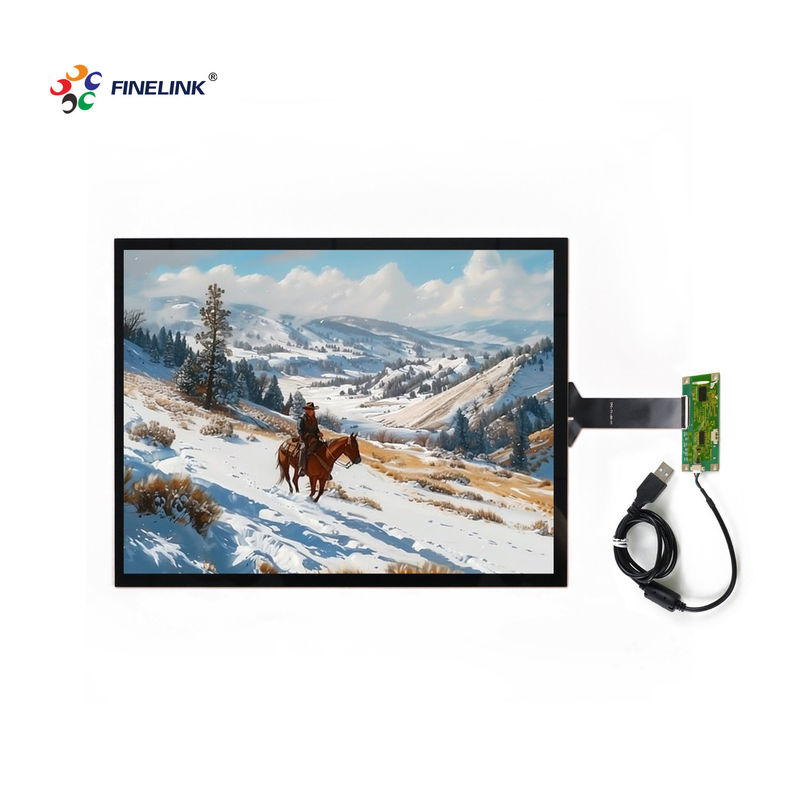

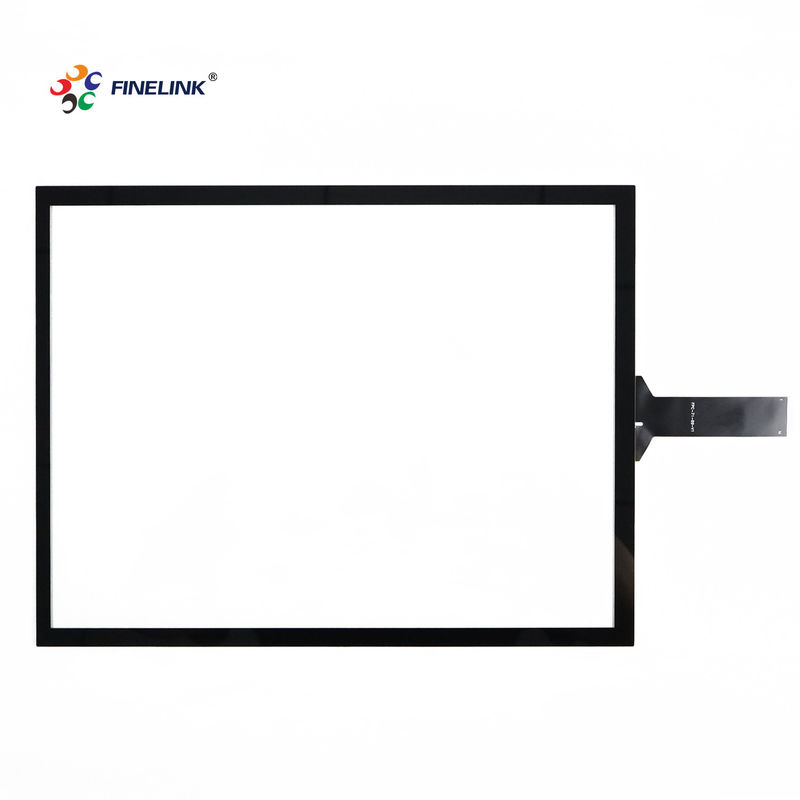

The 15 Inch Waterproof USB Capacitive Touch Screen with EETI Solution is a high-quality touch screen panel designed to enhance the functionality of monitors. Featuring a waterproof design and advanced EETI solution, this touch screen delivers reliable performance in various environments. With USB connectivity, it offers seamless integration with monitors for enhanced interactivity and usability.
Item
|
15 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
4:3
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

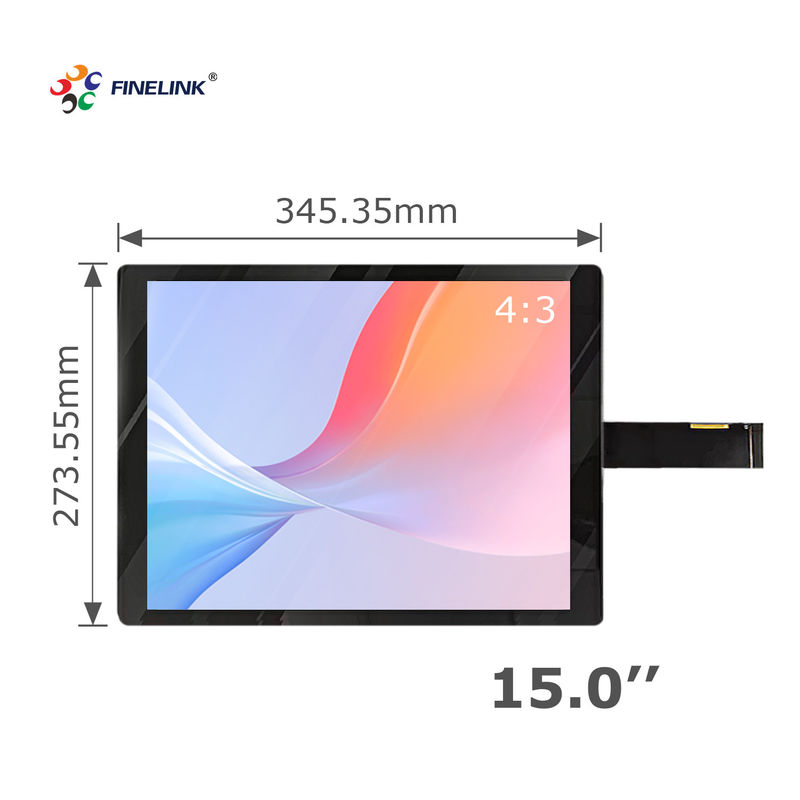

Lens OD
|
345.35*273.55mm
|
Sensor OD
|
303.99*227.99mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch screen compatible with Windows, Mac, and Linux operating systems?
A: Yes, the touch screen is compatible with a wide range of operating systems, including Windows, Mac, and Linux.
Q: Can this touch screen be used with any monitor model?
A: Yes, the touch screen is designed for compatibility with various monitor models, offering versatile integration options.
Q: How do I install and calibrate the touch screen?
A: Installation is simple with the USB interface, and calibration can be easily performed using the calibration utility software provided with the touch screen.
Q: Is the touch screen resistant to water and dust?
A: Yes, the touch screen features a waterproof design that protects it from water and dust ingress, ensuring reliable performance in harsh environments.
Q: Can I use this touch screen for outdoor applications?
A: Yes, the touch screen's waterproof design makes it suitable for outdoor applications where exposure to the elements is a concern.
Q: Does this touch screen support multi-touch gestures?
A: Yes, the touch screen supports multi-touch gestures, allowing for intuitive pinch-to-zoom, swipe, and rotate actions.
