IP65 Multi Touch Capacitive Touchscreen 15 Inch For Retail Applications SIS Drive IC

IP65 Multi Touch Capacitive Touchscreen 15 Inch For Retail Applications SIS Drive IC

IP65 Multi Touch Capacitive Touchscreen

Multi Touch Capacitive Touchscreen 15 Inch

Capacitive Touch Screen Linux

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8066 150

Contact Us
Request A Quote
Product Details
Features:
IK10, Waterproof IP65
Application:
Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, Touch Panel For POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
15 Inch
Drive IC:
EETI/ILIEK/SIS
Product Name:
15 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

IP65 Multi Touch Capacitive Touchscreen

,

Multi Touch Capacitive Touchscreen 15 Inch

,

Capacitive Touch Screen Linux

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$19.22/pieces 2-99 pieces
Packaging Details
Standard packaging with carton or wooden box then Pallet and container
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Product Description

The IP65 Multi Touch Capacitive Touchscreen 15 Inch is a high-performance display designed for retail applications. With its advanced SIS Drive IC and IP65 rating, this touchscreen is both durable and highly responsive, making it perfect for high-traffic retail environments. Its multi-touch capability ensures smooth and accurate interactions, enhancing customer experience and operational efficiency.

Item
15 Inch G+G Capacitive Touch Panel
Ratio
4:3
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB
Lens OD
345.35*273.55mm
Sensor OD
303.99*227.99mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)


Product Features

  • IP65 Rating: Waterproof and dustproof, suitable for various environments including outdoor and semi-outdoor locations.
  • Multi-Touch Technology: Supports multiple touch points for intuitive and interactive user experiences.
  • SIS Drive IC: Advanced drive IC ensures superior touch performance and reliability.
  • 15-Inch Display: Optimal size for retail applications, offering clear and vibrant visuals.
  • Durable Construction: Built to withstand the rigors of daily use in busy retail settings.
  • High Sensitivity: Capable of detecting touch inputs accurately, even through gloves.

Application Scenarios

  • Retail Kiosks: Ideal for interactive kiosks where customers can browse products, check prices, and place orders.
  • Point of Sale Systems: Enhances efficiency at checkout counters with quick and reliable touch responses.
  • Customer Information Displays: Perfect for displaying promotional content, product information, and store maps.
  • Self-Service Stations: Suitable for self-checkout stations and information terminals, improving customer autonomy and reducing wait times.
  • Outdoor Retail Displays: With its IP65 rating, it can be used in outdoor settings for promotional and informational displays.

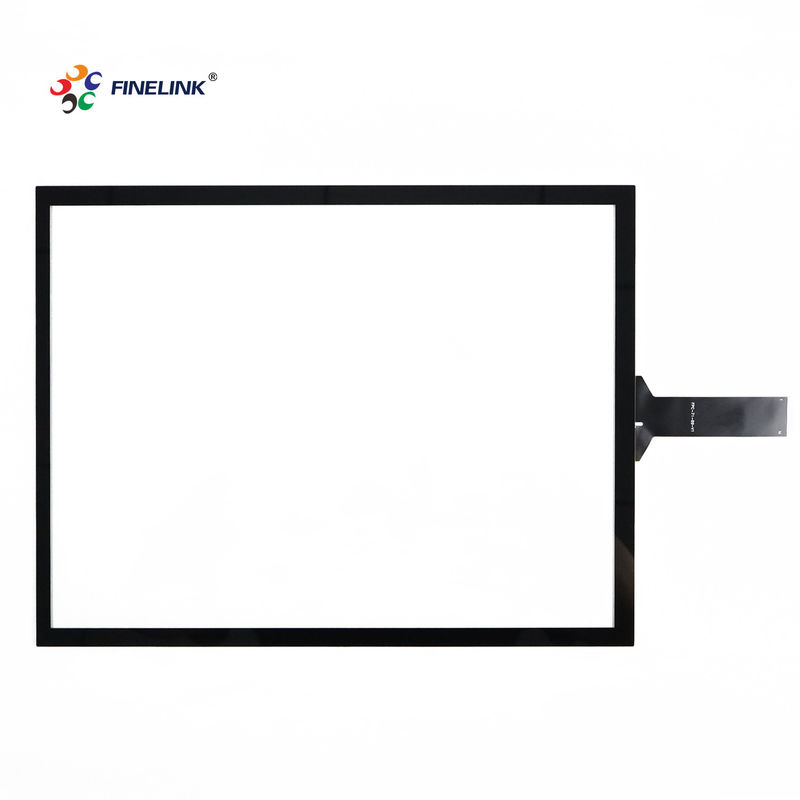

IP65 Multi Touch Capacitive Touchscreen 15 Inch For Retail Applications SIS Drive IC 0

Customization Services

  • Screen Size and Aspect Ratio: Customizable to fit specific retail requirements and space constraints.
  • Enclosure Design: Options for customized enclosures to match the store’s aesthetic and branding.
  • Additional Features: Custom options such as anti-glare coating, privacy filters, and tempered glass for enhanced durability and usability.
  • Branding: Ability to add custom logos and branding elements on the display frame or enclosure.

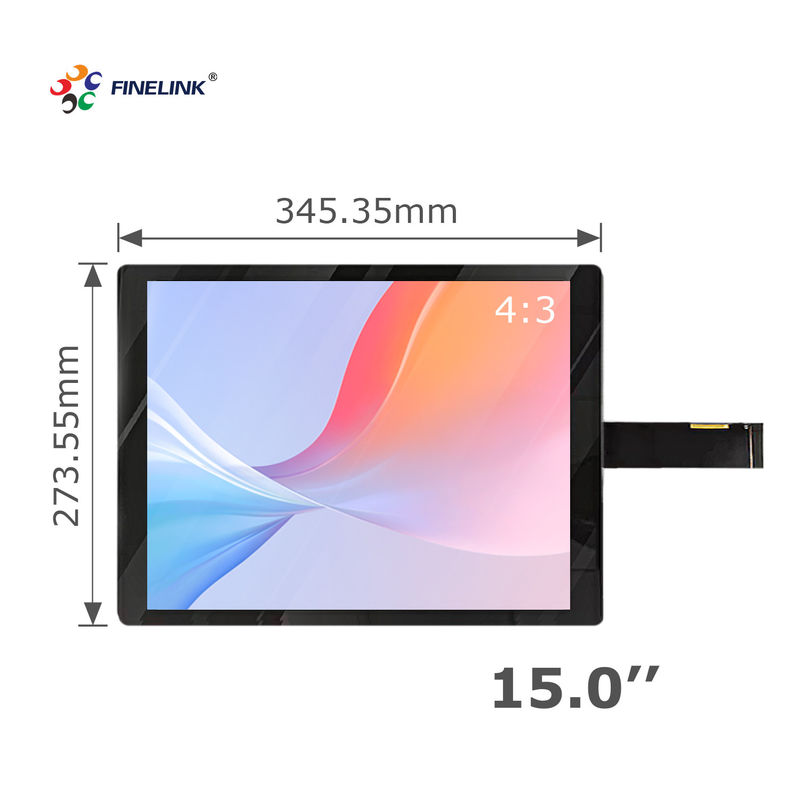

IP65 Multi Touch Capacitive Touchscreen 15 Inch For Retail Applications SIS Drive IC 1

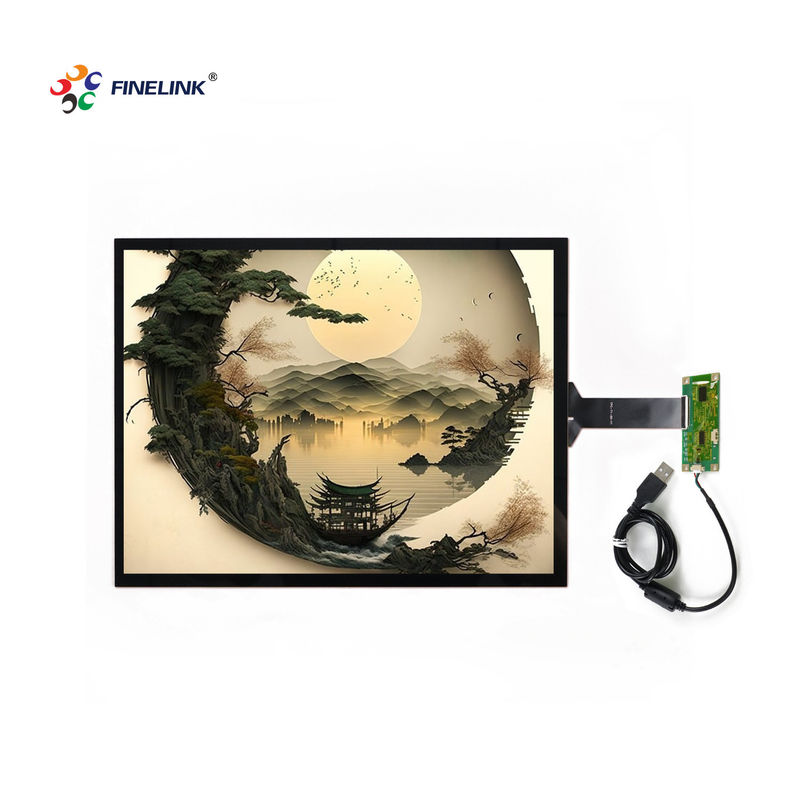

IP65 Multi Touch Capacitive Touchscreen 15 Inch For Retail Applications SIS Drive IC 2

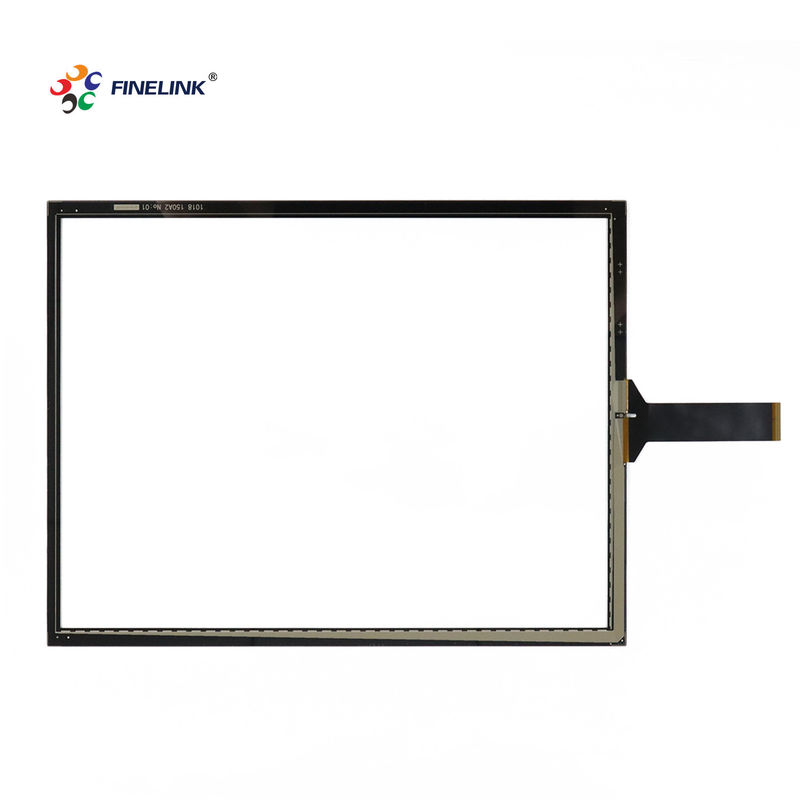

IP65 Multi Touch Capacitive Touchscreen 15 Inch For Retail Applications SIS Drive IC 3

Packaging and Shipping

  • Secure Packaging: Each unit is securely packaged to prevent damage during transportation.
  • Custom Branding on Packaging: Options available to include branding on the packaging for a professional look.
  • Fast Shipping: Reliable shipping options to ensure timely delivery.
  • Eco-Friendly Packaging: Use of sustainable packaging materials to reduce environmental impact.

FAQ

Q: Is this touchscreen compatible with various operating systems?

A: Yes, the touchscreen is compatible with multiple operating systems including Windows, Linux, and Android.

Q: Can this touchscreen be used outdoors?

A: Yes, with its IP65 rating, it is suitable for both indoor and outdoor retail environments.

Q: How many touch points does the screen support?

A: The screen supports up to 10 simultaneous touch points, providing a highly interactive experience.

Q: What kind of maintenance does this touchscreen require?

A: The touchscreen requires minimal maintenance. Regular cleaning with a soft, damp cloth will keep it in good condition. Avoid using abrasive materials.

Q: Can the touchscreen be integrated with existing retail software systems?

A: Yes, the touchscreen is designed to integrate seamlessly with most retail software systems.

Q: What is the warranty period for this touchscreen?

A: The touchscreen comes with a standard one-year warranty, with options to extend the warranty period as needed.

IP65 Multi Touch Capacitive Touchscreen 15 Inch For Retail Applications SIS Drive IC 4
