Place of Origin:
Guangdong, China
Brand Name:
FINELINK

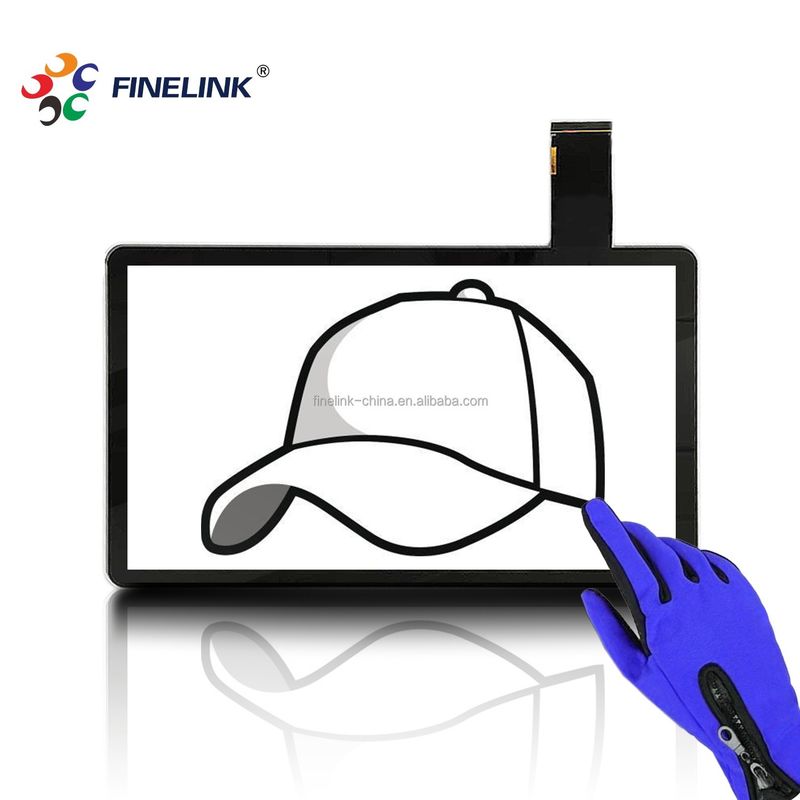

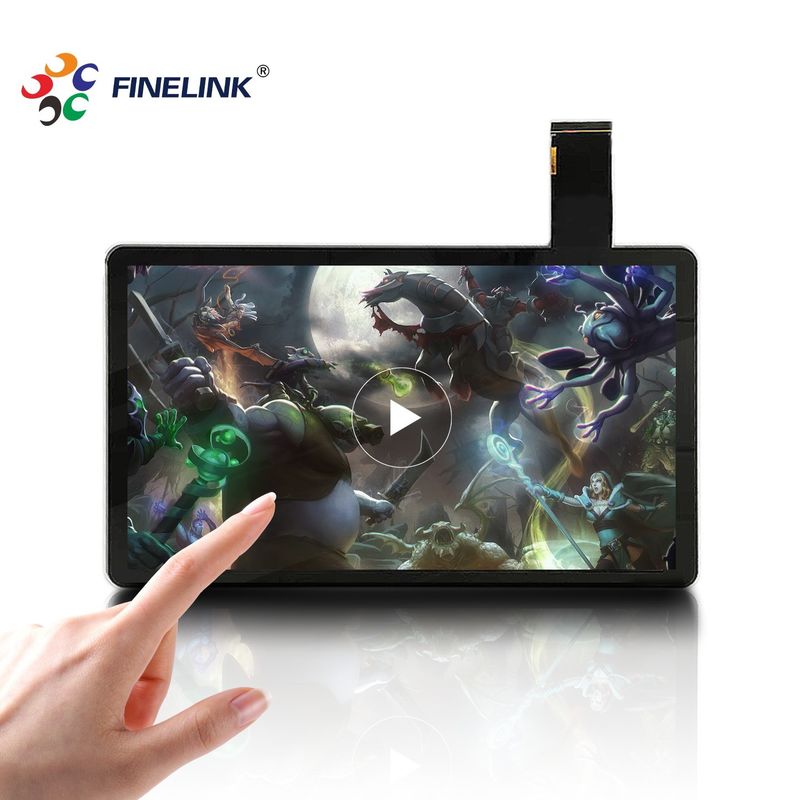

The 14 Inch All-In-One Capacitive LCD Touch Screen Panel is specifically designed for machine automation. This integrated solution combines a high-quality LCD display with advanced capacitive touch technology, offering superior performance, reliability, and user experience. Ideal for industrial applications, this touch screen panel ensures seamless operation and enhanced productivity.
Item
|
14 inch capacitive touch panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
335*200mm
|
Sensor OD
|
322*190mm
|
Cover glass(T)
|
2mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃~+60℃
|
Interface Type
|
USB,RS232,I2C
|
Color
|
Black,White,Transparent,colors optional
|
Customized
|
AG/AG/AF/AM/AH/Waterproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,medical,banking,consumer,military,education,HMI....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch screen panel compatible with my existing automation system?
A: Yes, the panel is designed for broad compatibility and can be integrated with various operating systems and interfaces.
Q: Can the touch panel be used in harsh industrial environments?
A: Yes, the panel is built with durable materials and protective features to withstand tough industrial conditions.
Q: How do I clean the touch screen surface?
A: The surface can be cleaned with a soft, damp cloth. For tougher stains, a mild detergent can be used. Avoid abrasive cleaners that could damage the surface.
Q: What is the warranty period for this product?
A: The touch screen panel comes with a standard one-year warranty. Extended warranty options are available upon request.
Q: Can I customize the touch sensitivity for my application?
A: Yes, the touch sensitivity can be adjusted to meet specific user needs and application requirements.
Q: Is technical support available for integration and setup?
A: Yes, we offer comprehensive technical support to assist with integration and setup, ensuring smooth implementation into your automation system.
