Place of Origin:
Guangdong, China
Brand Name:
FINELINK
The 16:9 Aspect Ratio 55 Inch Touch Screen PCAP Multi Touch Advertising Board is a state-of-the-art display solution designed to enhance interactive advertising and customer engagement. Featuring Projected Capacitive (PCAP) touch technology, this large-format display provides superior touch responsiveness and clarity, making it ideal for various commercial applications.
Item
|
55 Inch G+G Capacitive Touch Panel For Charging Pile Touch Advertising Board
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|

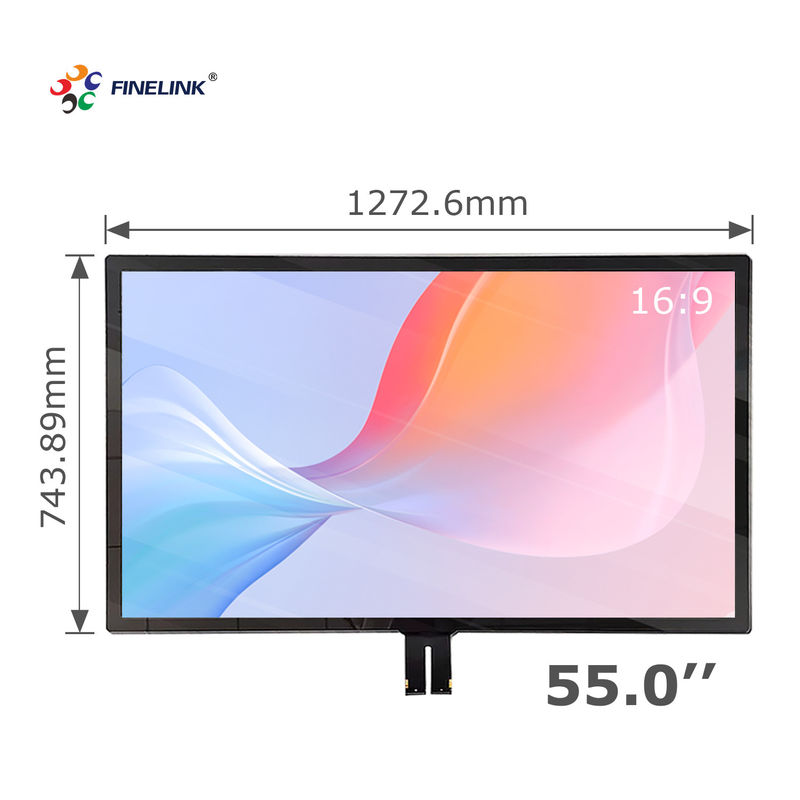

1272.6*743.89mm
|
Sensor OD
|
1235.8*708.1mm
|
Cover glass(T)
|
4mm
|
SENSOR(T)
|
1.2mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: What type of touch technology is used in this display?
A: The display uses Projected Capacitive (PCAP) touch technology, which supports multi-touch functionality.
Q: Can the display be used in outdoor environments?
A: While the display is designed primarily for indoor use, customization options are available for outdoor applications, including weatherproofing and increased brightness.
Q: Is technical support available for installation and integration?
A: Yes, we provide comprehensive technical support to assist with installation, setup, and integration of the display.
Q: Can the touch sensitivity be adjusted?
A: Yes, the touch sensitivity can be adjusted to meet specific application needs and user preferences.
Q: What warranty is offered with this product?
A: The display comes with a standard one-year warranty, with options to extend the warranty available upon request.
Q: Are there customization options for the display software?
A: Yes, we offer software customization services to ensure the display meets your specific application requirements.
Q: How do I clean the touch screen surface?
A: The touch screen surface can be cleaned with a soft, damp cloth. Avoid using abrasive cleaners or solvents.
