Place of Origin:
Guangdong, China
Brand Name:
FINELINK
The Gaming Laptop Custom Touch Panel 15.6 Inch 10 Point Multi Touch Screen is designed to enhance the interactive experience for gaming enthusiasts. This high-performance touch panel offers precision and responsiveness with its 10-point multi-touch capability, ensuring smooth and accurate touch inputs. It’s an ideal upgrade for gaming laptops, providing a seamless interface that enhances gameplay and overall user interaction.
Item
|
15.6 inch capacitive touch panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|

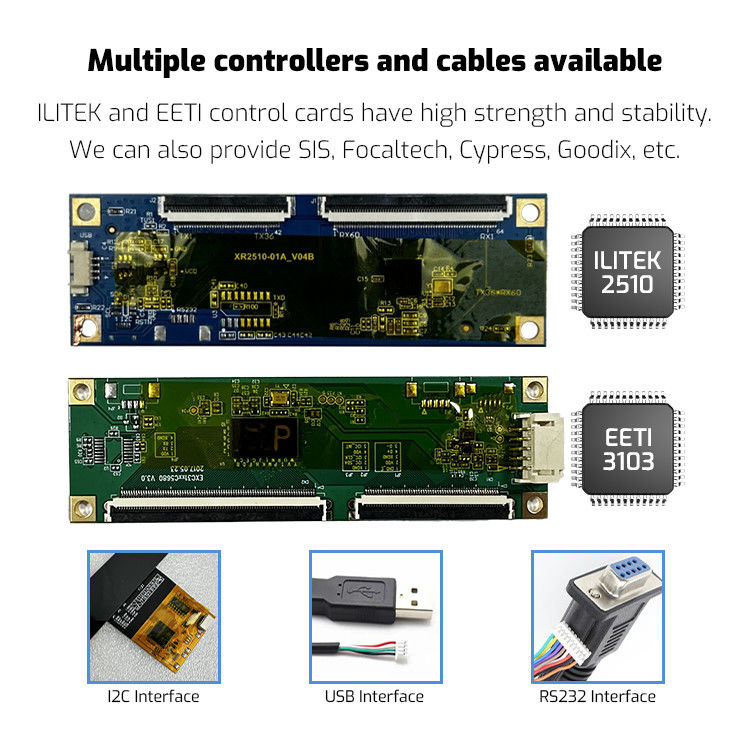

Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
383*233mm
|
Sensor OD
|
358*210mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃~+60℃
|
Interface Type
|
USB,RS232,I2C
|
Color
|
Black,White,Transparent,colors optional
|
Customized
|
AG/AG/AF/AM/AH/Waterproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,medical,banking,consumer,military,education,HMI....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch panel compatible with all gaming laptops?
A: The touch panel is compatible with most gaming laptops, but please check the specific dimensions and interface requirements of your device.
Q: Can the touch sensitivity be adjusted for different games?
A: Yes, the touch sensitivity can be customized to suit different gaming preferences and applications.
Q: What operating systems are supported?
A: The touch panel supports a variety of operating systems, including Windows and Android.
Q: How do I install the touch panel on my laptop?
A: Installation instructions are provided, and technical support is available to assist with the setup process.
Q: What is the warranty period for this touch panel?
A: The product comes with a standard one-year warranty, with options for extended warranties.
Q: Can I get custom branding on the touch panel?
A: Yes, we offer customization services for branding and graphic overlays to match your company's aesthetics.
