Place of Origin:
Guangdong, China
Brand Name:
FINELINK

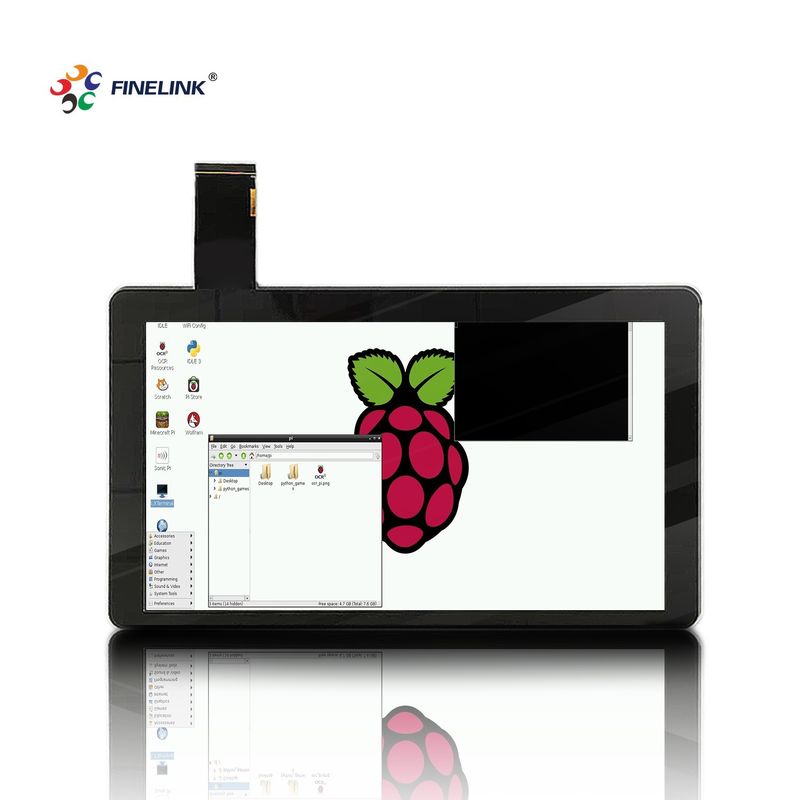

The OEM Capacitive Touch Panel 13.3 Inch Touch Screen G+G for POS Monitor is a high-performance touch interface designed to enhance point-of-sale (POS) systems. Utilizing Glass+Glass (G+G) technology, this capacitive touch screen ensures durability, high transparency, and precise touch recognition, making it an ideal solution for retail and commercial applications.
Item
|
13.3 Inch G+G Capacitive Touch Panel For POS Monitor Drawing Board
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|

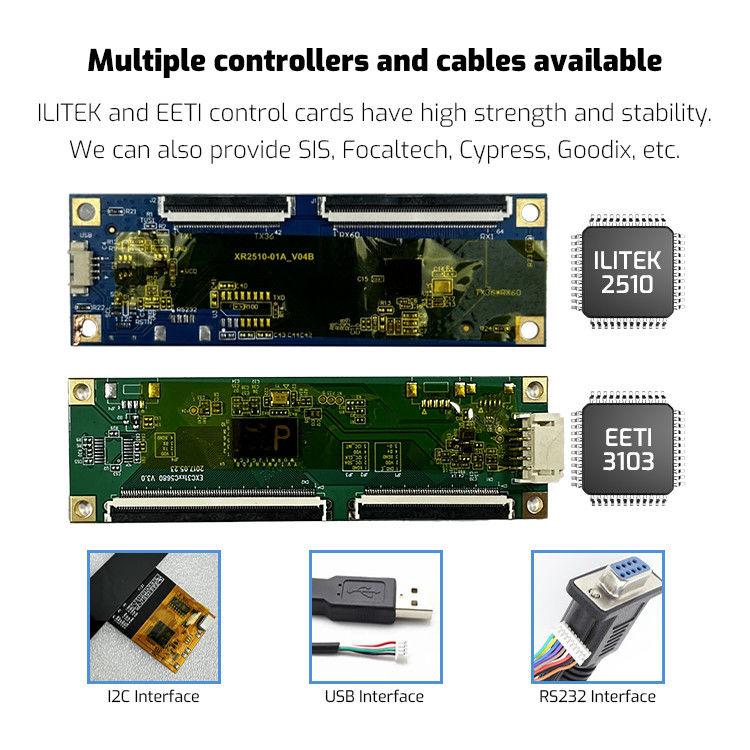

Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

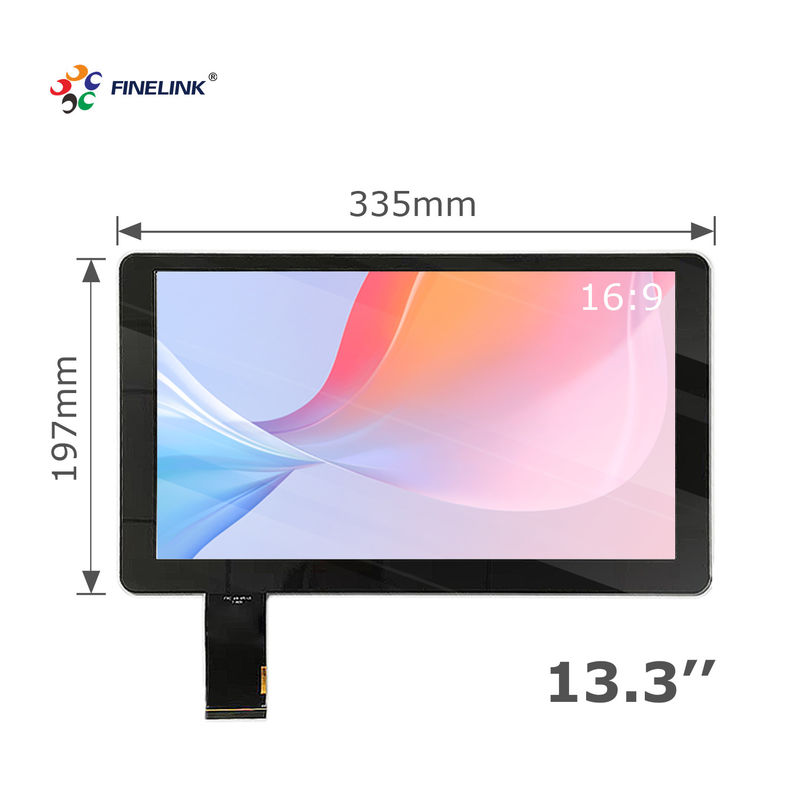

Lens OD
|
335*197mm
|
Sensor OD
|
307.88*181.12mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch panel compatible with all POS systems?
A: The touch panel is designed to be compatible with a wide range of POS systems. Custom interface options ensure easy integration.
Q: Can the touch sensitivity be customized?
A: Yes, touch sensitivity can be adjusted to suit specific application requirements.
Q: How durable is the G+G surface?
A: The G+G surface is highly durable and scratch-resistant, ensuring long-term use without compromising performance.
Q: What operating systems are supported?
A: The touch panel is compatible with multiple operating systems, including Windows, Android, and Linux.
Q: Is technical support available for setup and integration?
A: Yes, we provide comprehensive technical support to assist with the integration and setup of the touch panel.
Q: What is the warranty period for this product?
A: The product comes with a standard one-year warranty, with options to extend the warranty upon request.
