Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8061 116

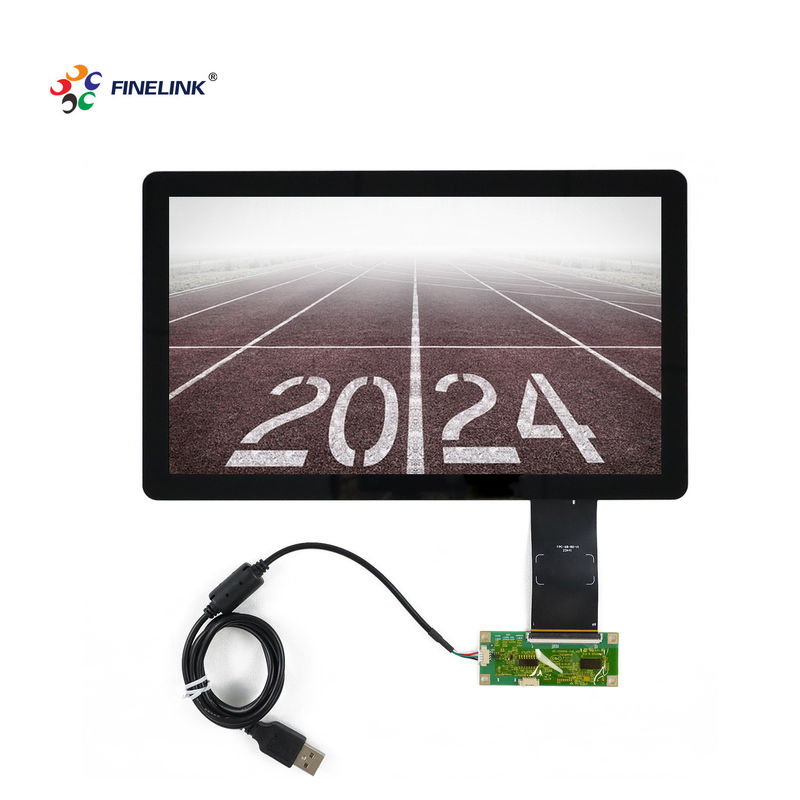

The Waterproof LCD Multi Touch Display 11.6 Inch Capacitive RS232 Interface is a high-performance touch display designed to withstand harsh environments while delivering exceptional touch accuracy and responsiveness. With its capacitive touch technology, this display supports multi-touch functionality and ensures reliable performance in industrial and outdoor settings. The inclusion of the RS232 interface provides versatile connectivity options for various applications.
Item
|
11.6 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

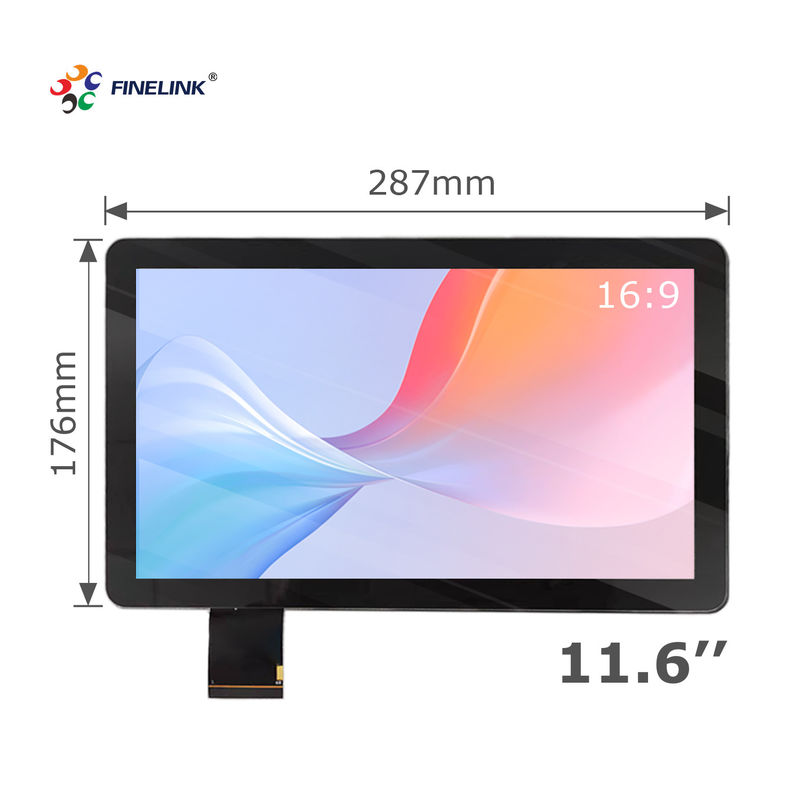

Lens OD
|
287*176mm
|
Sensor OD
|
270*159mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touchscreen display compatible with all operating systems?
A: The touchscreen display is compatible with a variety of operating systems, including Windows, Android, and Linux.
Q: Can this display be used in outdoor environments?
A: Yes, its waterproof design makes it suitable for use in outdoor environments.
Q: How do I clean the touchscreen display?
A: The display can be cleaned with a soft, damp cloth. For tougher stains, a mild detergent can be used. Avoid using abrasive cleaners.
Q: What is the warranty period for this product?
A: The product comes with a standard one-year warranty. Extended warranty options are available upon request.
Q: Can the touch sensitivity be adjusted?
A: Yes, the touch sensitivity can be adjusted to meet specific user needs and application requirements.
Q: Is technical support available for integration and setup?
A: Yes, comprehensive technical support is available to assist with integration and setup, ensuring smooth implementation into your system.
