Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8061 116

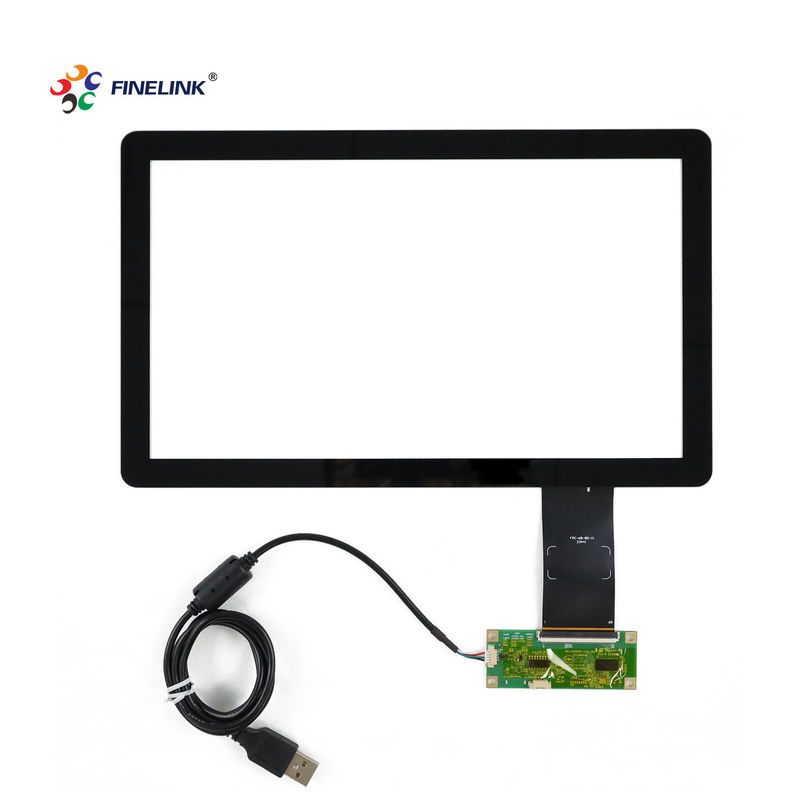

The 11.6 Inch Custom Touch Screen is a state-of-the-art multi-touch display designed with a Glass-Glass (G+G) structure and equipped with FPC and IC integration. This display offers high precision and responsiveness, making it ideal for a wide range of applications. Its robust construction ensures durability and reliable performance in various environments.
Item
|
11.6 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|

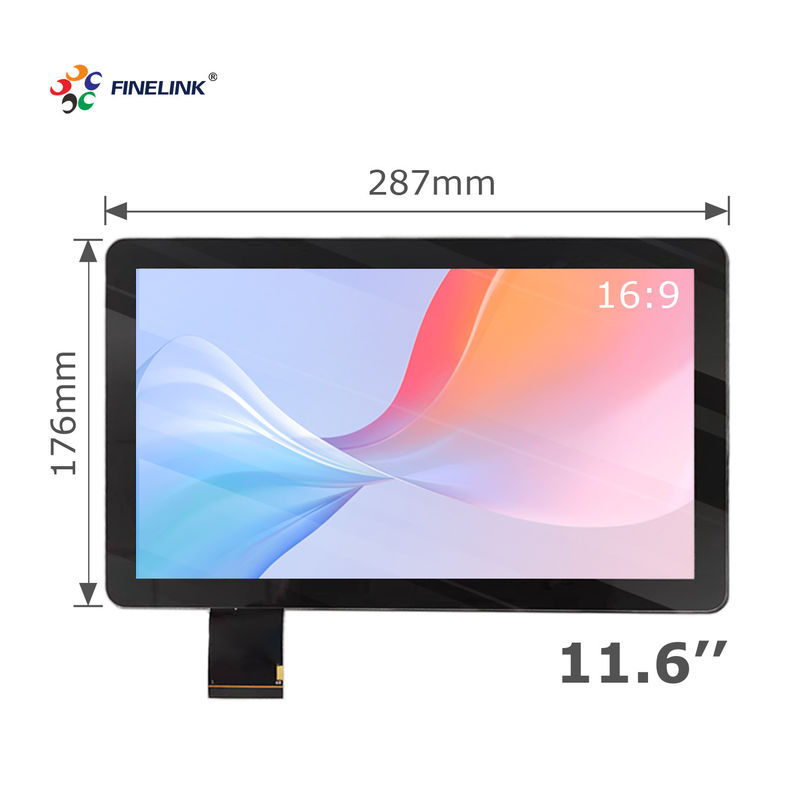

Lens OD
|
287*176mm
|
Sensor OD
|
270*159mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: What operating systems are compatible with this touch screen?
A: This touch screen is compatible with a variety of operating systems including Windows, Android, and Linux.
Q: Can this touch screen be used in outdoor environments?
A: While the touch screen is robust and durable, additional protective measures may be required for prolonged outdoor use.
Q: How should I clean the touch screen?
A: Use a soft, damp cloth to clean the touch screen. For more stubborn stains, a mild detergent can be used. Avoid using abrasive cleaners.
Q: What is the warranty period for this product?
A: The standard warranty period is one year, with options for extended warranties available upon request.
Q: Is technical support available for setup and integration?
A: Yes, comprehensive technical support is available to assist with the integration and setup of the touch screen.
Q: Can the touch screen's sensitivity be adjusted?
A: Yes, the touch screen’s sensitivity can be customized to meet specific application requirements and user preferences.
