10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface

10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface

Waterproof Touch Screen 10.1 Inch

Open Frame Waterproof Touch Screen

10.1 Inch Touch Screen Panel

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8058 101

Contact Us
Request A Quote
Product Details
Features:
Multi-touch
Length:
254.96mm
Application:
Monitor, Touch Display, Kiosk, Smart Home
Interface:
USB/IIC/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
10.1 Inch
Width:
172.6mm
Drive IC:
EETI/ILIEK/SIS
Product Name:
10.1 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

Waterproof Touch Screen 10.1 Inch

,

Open Frame Waterproof Touch Screen

,

10.1 Inch Touch Screen Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$13.07/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

The 10.1 Inch Open Frame PCAP Waterproof Touchscreen Panel is a versatile and robust touch interface designed for demanding environments. Featuring Projected Capacitive (PCAP) touch technology, it provides exceptional touch accuracy and responsiveness. The panel is equipped with both I2C and USB interfaces, ensuring seamless integration with a variety of systems. Its waterproof design makes it suitable for use in harsh and outdoor conditions.



Item
10.1 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK/SIS
Connection
COB

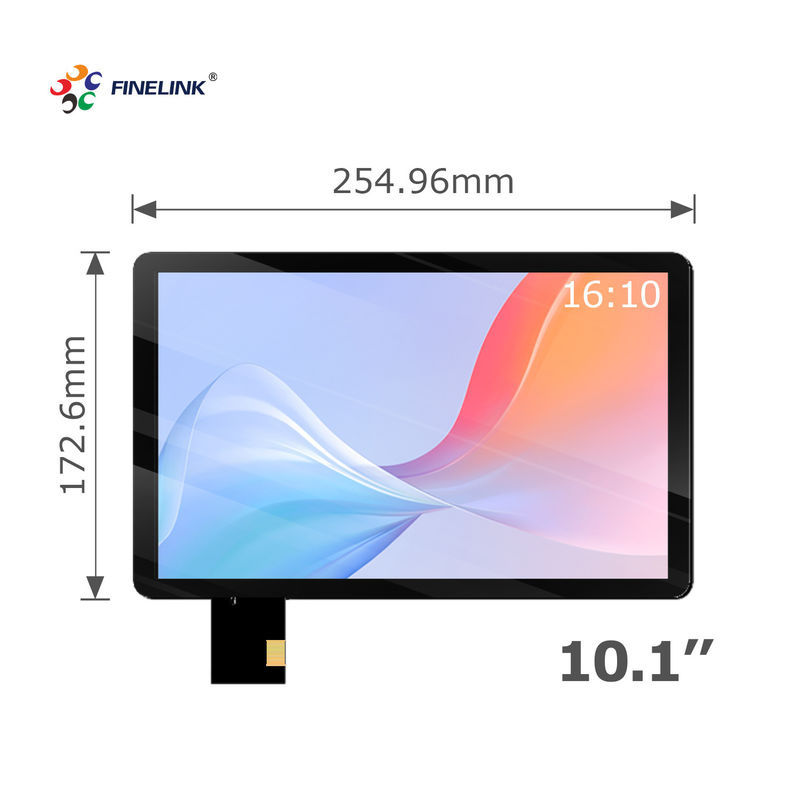

Lens OD
254.96*172.6mm
Sensor OD
229.69*151.1mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, IIC
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Projected Capacitive (PCAP) Technology: Ensures highly accurate and responsive multi-touch capabilities, supporting up to 10 touch points.
  • Waterproof Design: Rated for waterproofing, making it ideal for use in environments where it may be exposed to moisture or liquids.
  • Open Frame Design: Allows for easy integration into custom enclosures and kiosks, providing flexibility for various applications.
  • Multiple Interfaces: Comes with I2C and USB interfaces, offering versatile connectivity options for different devices and systems.
  • Durable Construction: Built with high-quality materials to withstand tough conditions and ensure long-lasting performance.
  • Wide Compatibility: Compatible with a range of operating systems, including Windows, Android, and Linux.

10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface 0

Application Scenarios

  • Industrial Control Systems: Perfect for use in factories and industrial settings where durability and touch precision are crucial.
  • Outdoor Kiosks: Ideal for information and service kiosks located in outdoor environments due to its waterproof design.
  • Medical Equipment: Suitable for integration into medical devices that require reliable and hygienic touch interfaces.
  • Retail and Hospitality: Excellent for point-of-sale systems, self-service checkouts, and interactive displays in retail and hospitality sectors.
  • Transportation Hubs: Useful for information and ticketing kiosks in airports, train stations, and bus terminals.

10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface 1

Customization Services

  • Interface Customization: Ability to customize the interfaces to meet specific connectivity requirements.
  • Touch Sensitivity Adjustment: Customizable touch sensitivity settings to suit different application needs.
  • Branding Options: Custom branding available on the touch panel and packaging to align with your company’s identity.
  • Environmental Resistance Enhancements: Additional options for enhanced waterproofing, dustproofing, and anti-glare coatings.
  • Form Factor Adjustments: Customizable dimensions and mounting solutions to fit specific enclosure designs.
10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface 2
10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface 3
10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface 4

Packaging and Shipping

  • Secure Packaging: Each unit is packaged securely to prevent damage during transit.
  • Custom Packaging Options: Available for custom packaging to match your brand and product presentation needs.
  • Efficient Shipping: Reliable and timely shipping options to ensure prompt delivery worldwide.
  • Eco-Friendly Materials: Use of environmentally friendly packaging materials to minimize environmental impact.

FAQ

Q: Is this touchscreen panel compatible with all operating systems?
A: The touchscreen panel is compatible with a variety of operating systems, including Windows, Android, and Linux.

Q: Can this panel be used in outdoor environments?
A: Yes, its waterproof design makes it suitable for use in outdoor environments.

Q: How do I clean the touchscreen panel?
A: The panel can be cleaned with a soft, damp cloth. For tougher stains, a mild detergent can be used. Avoid using abrasive cleaners.

Q: What is the warranty period for this product?
A: The product comes with a standard one-year warranty. Extended warranty options are available upon request.

Q: Can the touch sensitivity be adjusted?
A: Yes, the touch sensitivity can be adjusted to meet specific user needs and application requirements.

Q: Is technical support available for integration and setup?
A: Yes, comprehensive technical support is available to assist with integration and setup, ensuring smooth implementation into your system.

10.1 Inch Open Frame Pcap Waterproof Touchscreen Panel With I2C USB Interface 5
