Place of Origin:
Guangdong, China
Brand Name:
Finelink

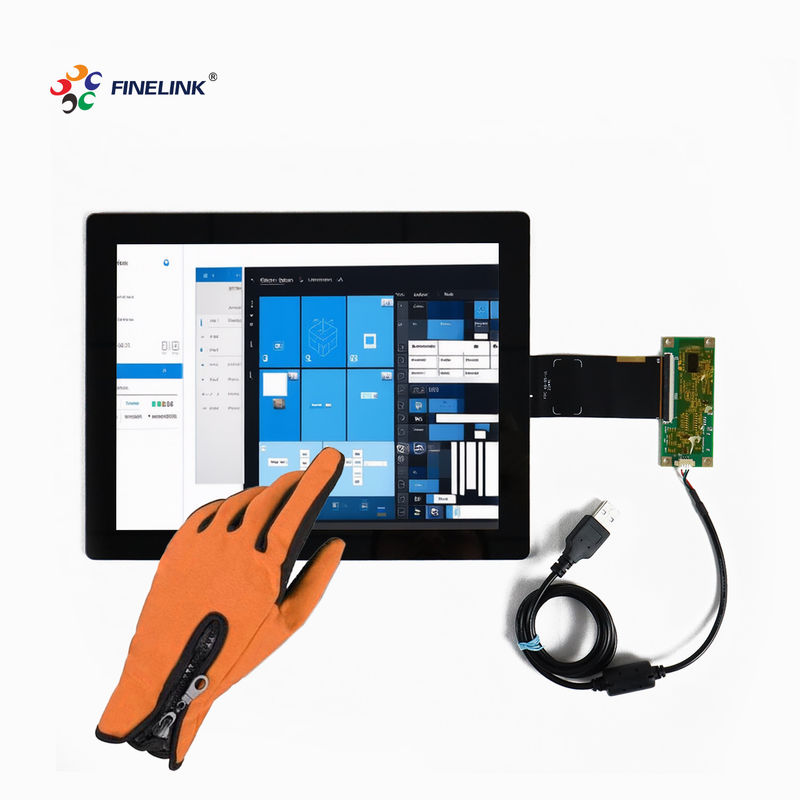

The Industrial Control 10.4-inch Waterproof Gloves Multi-Touch Capacitive Touch Screen Panel with EETI/ILITEK Controller is engineered for robust industrial applications. This touch screen panel combines high sensitivity and durability, allowing for reliable operation even in harsh environments. It is designed to support multi-touch functionality, and its waterproof feature ensures consistent performance when used with gloves, making it ideal for industrial control systems.
Item
|
10.4 Inch G+G Capacitive Touch Panel For POS Monitor
|
---|---|
Ratio
|
4:3
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
335*197mm
|
Sensor OD
|
307.88*181.12mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Military,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Can this touch screen panel be used with industrial gloves?
A: Yes, the panel supports multi-touch functionality even when used with industrial gloves, ensuring ease of use and safety.
Q: What is the waterproof rating of this touch screen panel?
A: The panel is IP65-rated, providing excellent protection against water and dust.
Q: Can the touch screen be customized for specific industrial applications?
A: Yes, we offer customization services to tailor the touch screen’s size, specifications, and design to meet specific industrial requirements.
Q: What controllers are used in this touch screen panel?
A: The panel is equipped with advanced EETI/ILITEK controllers for precise and responsive touch input.
Q: How do I connect the touch screen panel to my industrial system?
A: The touch screen panel is designed for easy integration with various industrial systems.
Q: What type of content can be displayed on this touch screen panel?
A: The panel supports a wide range of multimedia content, including control data, monitoring information, and interactive applications.
Q: What is the warranty period for this product?
A: The product comes with a standard one-year warranty, with options for extended warranties available.
Q: Is technical support available for setup and integration?
A: Yes, comprehensive technical support is available to assist with the setup and integration of the touch screen panel.
Q: Is this panel suitable for use in bright lighting conditions?
A: Yes, the panel features high brightness and anti-glare properties, ensuring clear visibility in various lighting conditions.
Q: What materials are used in the construction of this touch screen panel?
A: The panel is constructed with high-quality, durable materials designed to withstand rigorous industrial use and frequent cleaning.
Q: Can this touch screen panel be used in outdoor industrial equipment?
A: Yes, the panel is suitable for outdoor industrial equipment that requires reliable touch input and durability.
