Multifunctional Custom PCAP Panel 15-32 Inch Capacitive Touch Screen with Private Mold

Multifunctional Custom PCAP Panel 15-32 Inch Capacitive Touch Screen with Private Mold

Multifunctional PCAP Panel

Private Mold PCAP Panel

15-32 Inch PCAP Panel

Place of Origin:

Guangdong, China

Brand Name:

FINELINK

Contact Us
Request A Quote
Product Details
Warranty(Year):
1-Year
Color:
Black, Black Color
Package:
Yes
Series:
For Business
Aspect Ratio:
16:9
After-sales Service:
Call Center And On-line Technical Support, Free Spare Parts, Return And Replacement
Private Mold:
Yes
Products Status:
New
Type:
Capacitive
Interface Type:
Usb, USB RS232 RS485 VGA DVI
Product Name:
Custom Size PCAP Transparent Glass Capacitive Touch Screen Panel
Application:
Machine Automation
Structure:
Glass+Glass
Solution:
EETI/ILIEK
Touch Points:
Multi Point Touch
Interface:
USB/RS232 Serial
Function:
Multifunctional
Port:
Shenzhen, Guangzhou, Shanghai
Highlight:

Multifunctional PCAP Panel

,

Private Mold PCAP Panel

,

15-32 Inch PCAP Panel

Payment & Shipping Terms
Minimum Order Quantity
5 pieces
Price
$52.15/pieces 5-499 pieces
Packaging Details
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box.
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

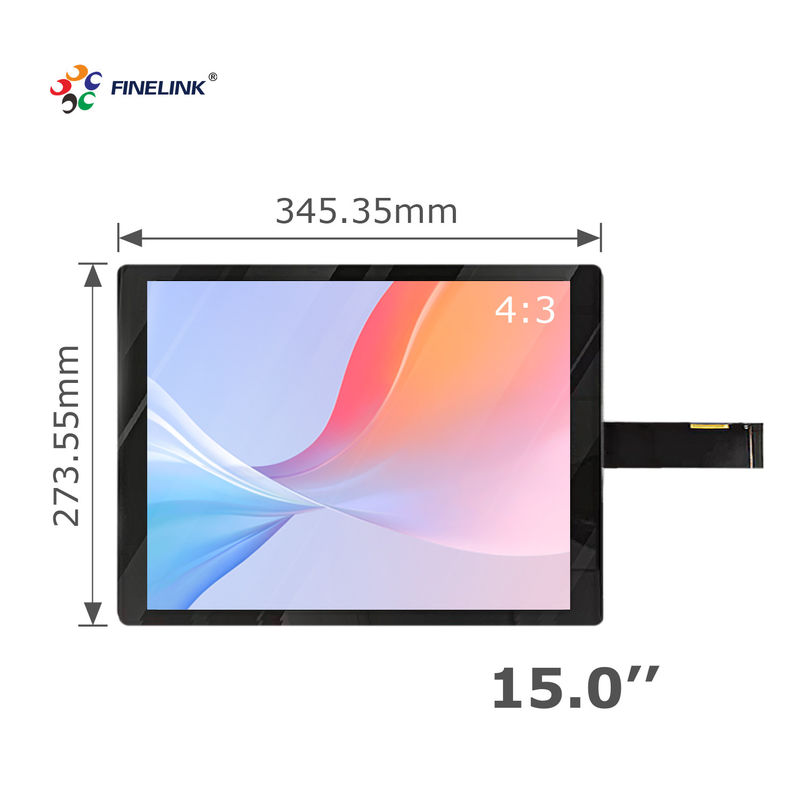

Our Multi-Touch Custom PCAP Touchscreen Panels are available in a variety of sizes, including 15", 15.6", 17", 18.5", 19", 21.5", 27", and 32". These capacitive touch screens are equipped with advanced EETI and ILITEK drive ICs, ensuring superior touch performance and accuracy. Designed for both industrial and commercial applications, they offer robust and reliable touch solutions that enhance user interaction and experience.



Specification

Item PCAP 15 15.6 17 18.5 19 19.5 23.6 23.8 24 27 32 43 55 inch Large I2C PCAP Capacitive Touch Switch Screen Panel
Ratio 5:4/4:3/16:9
Structure G+G
Type Capacitive

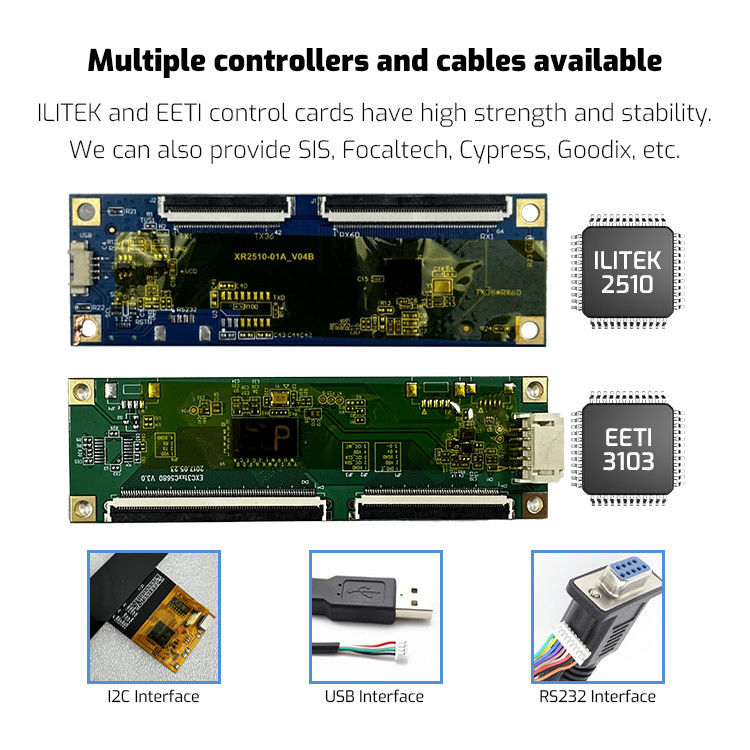

Touch controller EETI/ILITEK
Connection COB
Cover glass(T) 1.1/2/3/4/5/6 mm
SENSOR(T) 0.7/1.1 mm
Surface hardness ≥6H
Transmittance ≥85%
Touch points 10 Points
Operating Temperature -20℃~+60℃
Interface Type USB,RS232,I2C
Color Black,White,Transparent,colors optional
Customized AG/AG/AF/AM/AH/Waterproof/Glove touch
Operating system WinXP/7/8/10,Android,IOS,Mac,Linux
Application Industrial,medical,banking,consumer,military,education,HMI....
Warranty 12 Months(3 years maximum)


Product Features

  • Multi-Touch Capability: Supports multiple touch points for intuitive and interactive user experiences.
  • Customizable Sizes: Available in various sizes from 15" to 32" to meet different application needs.
  • High-Performance Drive ICs: Equipped with EETI and ILITEK drive ICs for precise and responsive touch input.
  • Durable Construction: Engineered for durability and longevity in demanding environments.
  • Excellent Clarity: High-resolution displays provide clear and vibrant visuals.
  • Versatile Interfaces: Compatible with multiple interfaces including USB, I2C, and RS232 for seamless integration.
  • Waterproof and Dustproof: Select models come with IP-rated protection for reliable performance in harsh conditions.

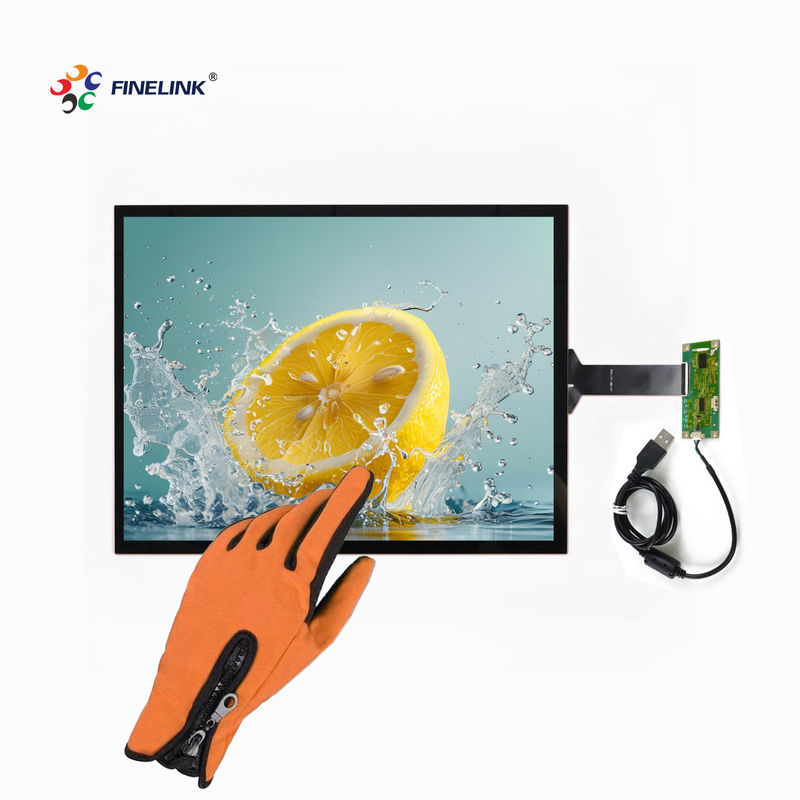

  • Glove Touch Support: Some models are designed to work with gloves, making them ideal for industrial settings.

Multifunctional Custom PCAP Panel 15-32 Inch Capacitive Touch Screen with Private Mold 0



Customization Services

  • Size and Specifications: Customizable to meet specific size and technical requirements.
  • Touch Sensitivity: Adjustable touch sensitivity to suit various application needs.
  • Branding and Aesthetics: Custom design and branding options available to match your corporate identity.
  • Enhanced Features: Options for additional features like anti-glare coatings, ruggedization, and more.
  • Software Integration: Tailored software solutions to ensure seamless integration with existing systems.



Multifunctional Custom PCAP Panel 15-32 Inch Capacitive Touch Screen with Private Mold 1

Application Scenarios

  • Industrial Automation: Perfect for control panels and HMI systems where precise touch input and durability are crucial.
  • Medical Equipment: Suitable for medical devices requiring accurate touch input, even with gloves.
  • Public Information Displays: Ideal for interactive kiosks and digital signage in public areas.
  • Commercial Advertising: Enhances digital signage applications with engaging touch interactions.
  • Education and Training: Useful for interactive learning and presentations in educational environments.
  • Outdoor Installations: Robust and reliable for outdoor kiosks and information boards.



Multifunctional Custom PCAP Panel 15-32 Inch Capacitive Touch Screen with Private Mold 2



Packing & Delivery

Multifunctional Custom PCAP Panel 15-32 Inch Capacitive Touch Screen with Private Mold 3

Standard Package



Standard packaging with carton or wooden box 1.The touch panel packing with foam plastic materials; 2.Packing with carton or wooden box.

Multifunctional Custom PCAP Panel 15-32 Inch Capacitive Touch Screen with Private Mold 4

Multipe Shipping

Express: DHL,UPS,EMS,TNT,Fedex

Other: Air or sea transportation



FAQ

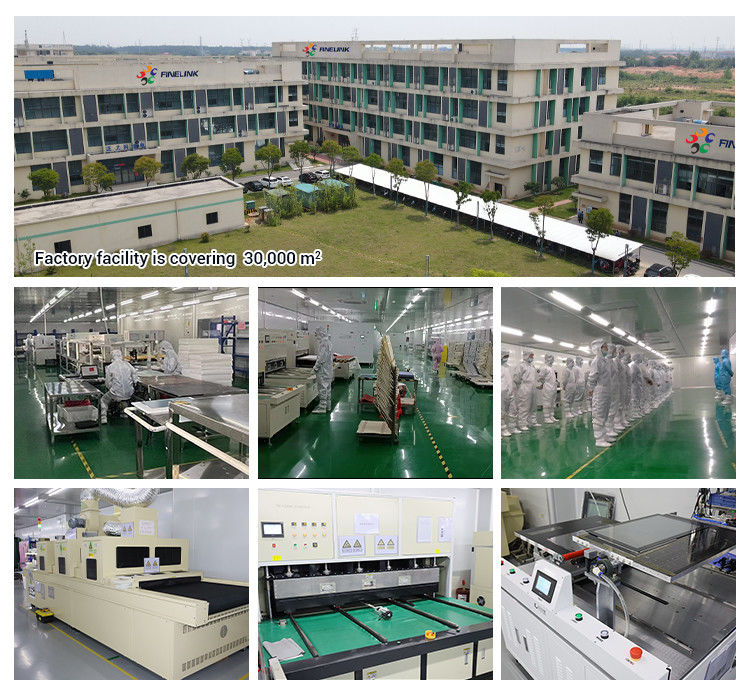

Q1: Are you a manufacturer or trading company? A: Yes, we are a manufacturer specializing in PCAP more than 10 years, with 30000 ㎡ production facilities located in ShenZhen and HuangGang HuBei City.

Q2: What is your MOQ? A: We have no MOQ requirement for our standard models, For customized models, There are different MOQ requirements depends on the size and complexity of customization.

Q3: How long is the warranty period? A: Generally the warranty period is three years. It depends on different products.

Q4: What is the delivery time of the products? A: Standard samples in stock can be delivered within 3 days after we received the payment. 7-15 workdays for the customized samples. 15-20 workdays for mass production.

Q5: What is your shipping method? A: DHL, UPS, FedEx, TNT, Sea Freight.It depends on different customer.

Q6.What is the products application? A:Widely used in comerical display, education, industrial control, medical, automotive, smart home ,optical bonding and other fields.
