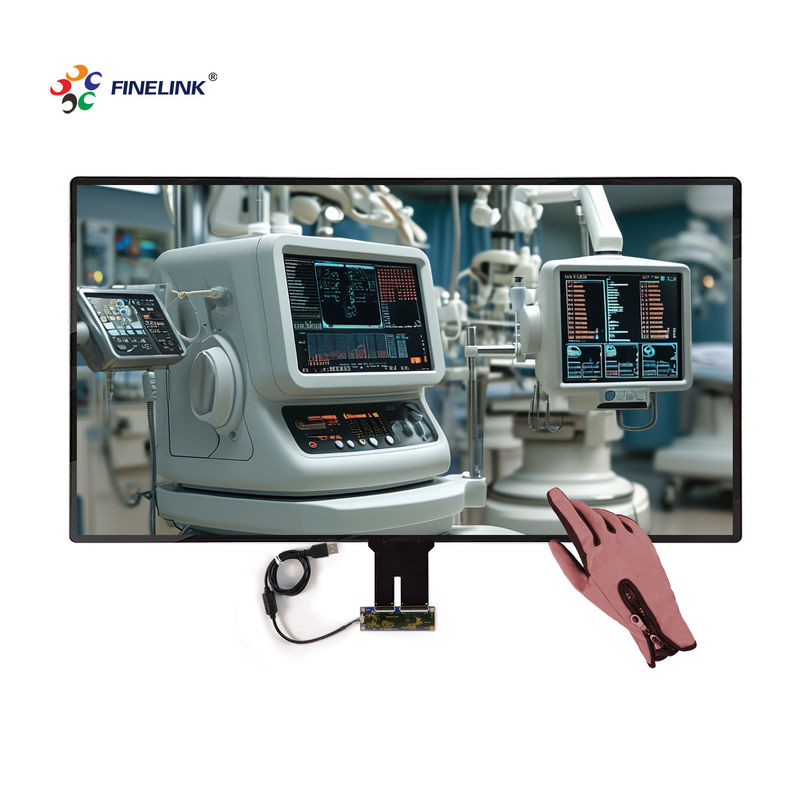

Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch

Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch

13.3 Inch Capacitive Touch Panels

17 Inch Capacitive Touch Panels

15.6 Inch Capacitive Touch Panels

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8063

Contact Us
Request A Quote
Product Details
Application:
For Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
7-65 Inch
Drive IC:
EETI/ILIEK/SIS
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

13.3 Inch Capacitive Touch Panels

,

17 Inch Capacitive Touch Panels

,

15.6 Inch Capacitive Touch Panels

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$11.91/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

Our High-Quality Capacitive Touch Panels, available in a range of sizes from 7 inches to 55 inches, are designed to meet the diverse needs of various industries. These customizable touchscreens offer precision, durability, and flexibility, making them ideal for interactive displays, control systems, kiosks, and more. Engineered with advanced PCAP (Projected Capacitive) technology, these panels deliver reliable, responsive touch performance across a variety of environments.

Item
10.1 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB
Lens OD
255*173mm
Sensor OD
230*1151mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Size Variety: Available in 7, 10.1, 12.3, 13.3, 15.6, 17, 18.5, 21.5, 27, 32, 43, 49, and 55 inches, accommodating a wide range of applications.
  • Advanced PCAP Technology: Ensures highly responsive and accurate multi-touch functionality, supporting up to 10 touch points.
  • Customizable Design: Tailor your touch panels with various customization options, including screen size, aspect ratio, interface type, and protective features.
  • Durability: Built to withstand harsh conditions, these touch panels are suitable for industrial and commercial use, offering long-lasting performance.
  • Multi-Touch Capability: Ideal for interactive displays, allowing for intuitive and efficient user interaction.
  • Wide Operating Temperature Range: Designed to operate reliably in extreme temperatures, making them suitable for outdoor and industrial environments.

Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch 0

Application Scenarios

  • Interactive Kiosks: Perfect for use in public information kiosks, self-service terminals, and retail displays.
  • Industrial Control Systems: Ideal for integration into control panels, HMIs (Human-Machine Interfaces), and other automation solutions.
  • Medical Devices: Suitable for medical equipment where precise and responsive touch input is required, even with gloves.
  • Digital Signage: Enhances the user experience in advertising and informational displays, both indoors and outdoors.
  • Professional Workstations: Excellent for specialized workstations that require accurate and reliable touch input.

Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch 1

Customization Services

  • Size and Aspect Ratio: Choose from various screen sizes and aspect ratios to match your specific application requirements.
  • Interface Options: Customizable interfaces, including USB, RS232, and IIC, to ensure seamless integration with your systems.
  • Touch Sensitivity: Adjust the sensitivity to accommodate different user environments, including glove use.
  • Protective Features: Optional coatings for anti-glare, anti-fingerprint, and scratch resistance, as well as vandal-proof designs.
  • Environmental Resistance: Options for enhanced waterproofing and dustproofing to ensure optimal performance in challenging environments.
  • Branding: Add your company’s logo or design elements for a custom-branded touch screen.
Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch 2
Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch 3
Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch 4

Packaging and Shipping

  • Secure Packaging: Each touch panel is carefully packaged to prevent damage during transportation.
  • Custom Packaging: Available upon request to meet specific handling and shipping requirements.
  • Global Shipping: We provide reliable worldwide shipping to ensure timely delivery.
  • Eco-Friendly Packaging: We use sustainable materials for packaging to reduce environmental impact.

FAQ

Q: Is this touch screen compatible with both Windows and Linux operating systems?
A: Yes, the touch screen is compatible with both Windows and Linux operating systems, providing versatile integration options.

Q: Can the touch screen be used in direct sunlight?
A: Yes, the touch screen is designed to offer excellent visibility even in direct sunlight, making it suitable for outdoor applications.

Q: How do I clean the touch screen?
A: The touch screen can be cleaned with a soft, damp cloth. Avoid using abrasive materials or harsh chemicals to prevent damage.

Q: Can the touch screen be used with gloves?
A: Yes, the touch screen is sensitive enough to be used with gloves, which is ideal for industrial and healthcare environments.

Q: What is the operating temperature range for this touch screen?
A: The touch screen is designed to operate within a wide temperature range, typically between -20°C to 60°C.

Q: Does the touch screen require calibration?
A: The touch screen comes pre-calibrated, but it can be recalibrated using the provided software or through system settings if needed.

Customizable Touchscreens Capacitive Touch Panels 7 10.1 12.3 13.3 15.6 17 18.5 21.5 27 32 43 49 55 Inch 5
