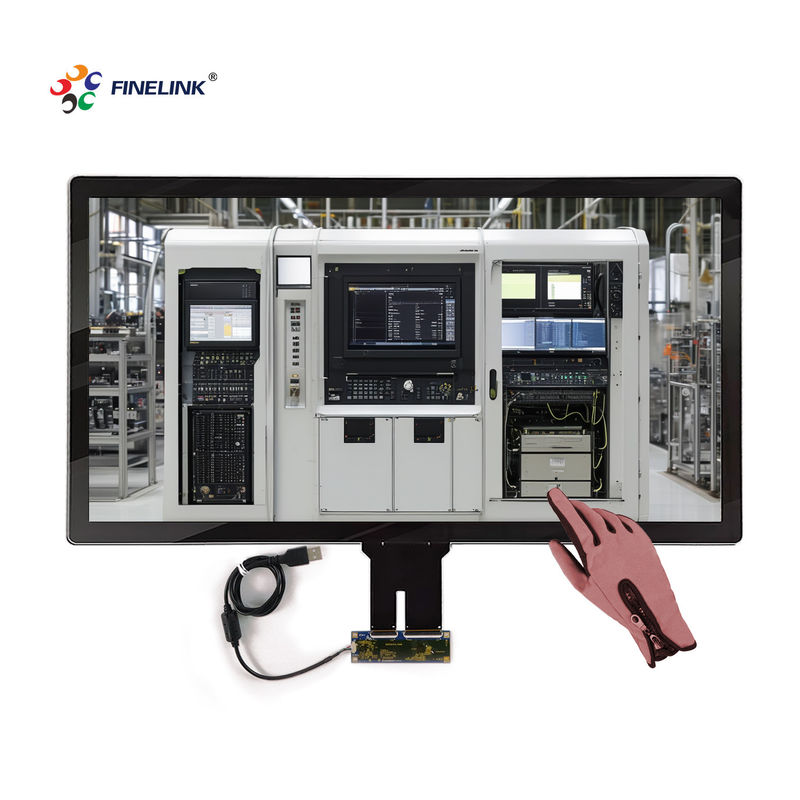

7-55 Inch Capacitive Touch Panels Customizable Industrial Displays

7-55 Inch Capacitive Touch Panels Customizable Industrial Displays

7 Inch Capacitive Touch Panels

Industrial Displays Capacitive Touch Panels

7-55 Inch Capacitive Touch Panels

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8063

Contact Us
Request A Quote
Product Details
Application:
For Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
7-65 Inch
Drive IC:
EETI/ILIEK/SIS
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

7 Inch Capacitive Touch Panels

,

Industrial Displays Capacitive Touch Panels

,

7-55 Inch Capacitive Touch Panels

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$11.91/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

Our High-Quality Capacitive Touch Panels are available in sizes ranging from 7 inches to 55 inches, offering versatile solutions for various industrial applications. Designed for precision, durability, and customization, these touch panels ensure reliable performance across multiple use cases, including kiosks, control systems, and interactive displays. These displays provide a perfect blend of cutting-edge technology and robust construction, tailored to meet the demands of any professional environment.

Item
10.1 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB
Lens OD
255*173mm
Sensor OD
230*1151mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Wide Size Range: Available in 7, 10.1, 12.3, 15, 17, 18.5, 21.5, 27, 32, 43, 49, and 55-inch sizes to accommodate different applications.
  • Capacitive Touch Technology: Features advanced PCAP (Projected Capacitive) technology for responsive multi-touch capability, supporting up to 10 touch points.
  • Durability: Built for industrial use, these touch panels are rugged and durable, suitable for environments where reliability is essential.
  • Customizable: Offers customization options in size, interface, sensitivity, and more to fit specific requirements.
  • High Resolution: Delivers crisp and clear images with high resolution, ensuring excellent display quality.
  • Waterproof and Dustproof: Engineered to be resistant to water and dust, making them ideal for harsh industrial environments.

7-55 Inch Capacitive Touch Panels Customizable Industrial Displays 0

Application Scenarios

  • Industrial Automation: Perfect for use in control systems, HMI (Human-Machine Interface) devices, and factory automation equipment.
  • Kiosks and Terminals: Ideal for self-service kiosks, information terminals, and ticketing machines.
  • Healthcare: Suitable for medical devices that require precise touch input, even with gloves.
  • Transportation: Can be integrated into vehicle displays, control systems, and public transportation interfaces.
  • Retail and Hospitality: Enhances user interaction in digital signage, point-of-sale systems, and interactive displays.

7-55 Inch Capacitive Touch Panels Customizable Industrial Displays 1

Customization Services

  • Interface Options: Choose from USB, RS232, IIC, and other interfaces to match your system’s needs.
  • Touch Sensitivity: Adjustable sensitivity settings for different environments, including support for glove touch.
  • Environmental Protection: Additional waterproof, dustproof, and anti-glare coatings are available to enhance durability.
  • Branding: Custom branding options allow you to add logos or other design elements.
  • Mounting Options: Customizable mounting solutions to fit specific installation requirements.
7-55 Inch Capacitive Touch Panels Customizable Industrial Displays 2
7-55 Inch Capacitive Touch Panels Customizable Industrial Displays 3
7-55 Inch Capacitive Touch Panels Customizable Industrial Displays 4

Packaging and Shipping

  • Secure Packaging: Each touch panel is carefully packed to prevent damage during transit.
  • Custom Packaging: Available upon request for specialized shipping needs.
  • Global Delivery: We offer international shipping services to ensure timely delivery anywhere in the world.
  • Sustainable Materials: We use eco-friendly packaging materials to minimize environmental impact.

FAQ

Q: What sizes are available for these touch panels?
A: These panels are available in a wide range of sizes from 7 to 55 inches.

Q: Can the panels be customized to specific requirements?
A: Yes, we offer various customization options, including size, interface, touch sensitivity, and more.

Q: Are these touch panels suitable for outdoor use?
A: Yes, they are designed to be waterproof and dustproof, making them ideal for both indoor and outdoor applications.

Q: What industries are these touch panels suitable for?
A: They are suitable for industrial automation, healthcare, transportation, retail, hospitality, and more.

Q: Do these panels support multi-touch functionality?
A: Yes, they support multi-touch with up to 10 touch points for interactive applications.

Q: Can I order custom packaging for these panels?
A: Yes, we offer custom packaging options to meet your specific shipping requirements.

Q: What is the lead time for customized orders?
A: Lead times vary based on the level of customization, but we strive to deliver within your required timeframe.

Q: Do you offer international shipping?
A: Yes, we provide reliable global shipping to ensure your order reaches you on time, no matter where you are.

Q: Are the panels compatible with different operating systems?
A: Yes, our panels are compatible with various operating systems, including Windows, Linux, and Android.

Q: What protective features are available?
A: We offer waterproof, dustproof, anti-glare, and anti-scratch options to enhance durability and performance.

7-55 Inch Capacitive Touch Panels Customizable Industrial Displays 5
