Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063

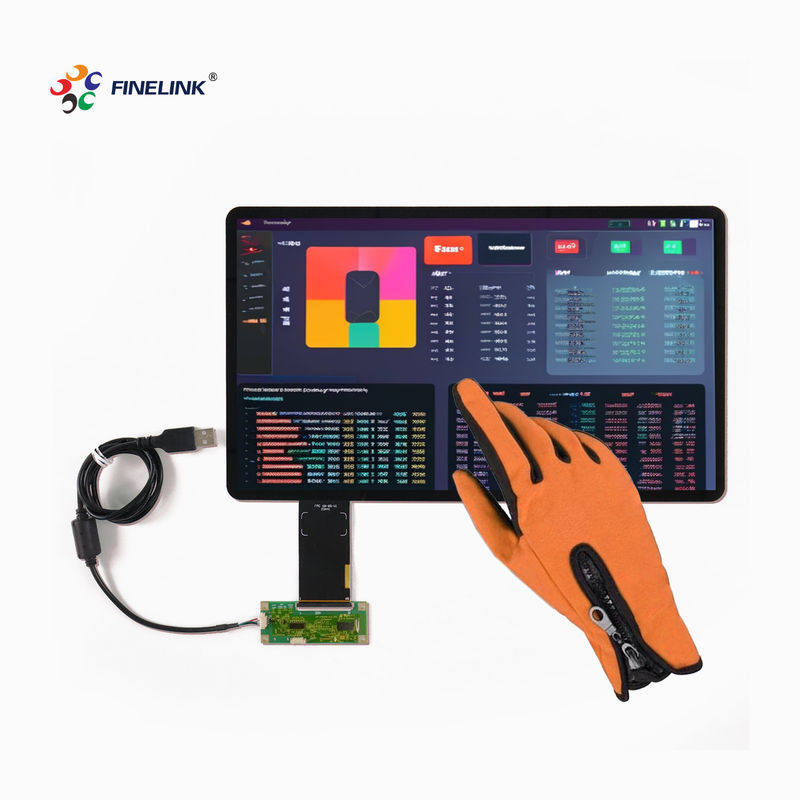

Our capacitive touch panels, available in sizes ranging from 7 to 27 inches, are engineered to provide superior touch performance for smart appliances and commercial displays. Integrated with the ILITEK controller, these panels offer precise touch detection and reliability, ensuring an optimal user experience in modern smart homes and commercial applications. Their sleek design and robust functionality make them ideal for seamless integration into various interactive systems.
Item
|
10.1 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
255*173mm
|
Sensor OD
|
230*1151mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Is this touch screen compatible with both Windows and Linux operating systems?
A: Yes, the touch screen is compatible with both Windows and Linux operating systems, providing versatile integration options.
Q: Can the touch screen be used in direct sunlight?
A: Yes, the touch screen is designed to offer excellent visibility even in direct sunlight, making it suitable for outdoor applications.
Q: How do I clean the touch screen?
A: The touch screen can be cleaned with a soft, damp cloth. Avoid using abrasive materials or harsh chemicals to prevent damage.
Q: Can the touch screen be used with gloves?
A: Yes, the touch screen is sensitive enough to be used with gloves, which is ideal for industrial and healthcare environments.
Q: What is the operating temperature range for this touch screen?
A: The touch screen is designed to operate within a wide temperature range, typically between -20°C to 60°C.
Q: Does the touch screen require calibration?
A: The touch screen comes pre-calibrated, but it can be recalibrated using the provided software or through system settings if needed.
