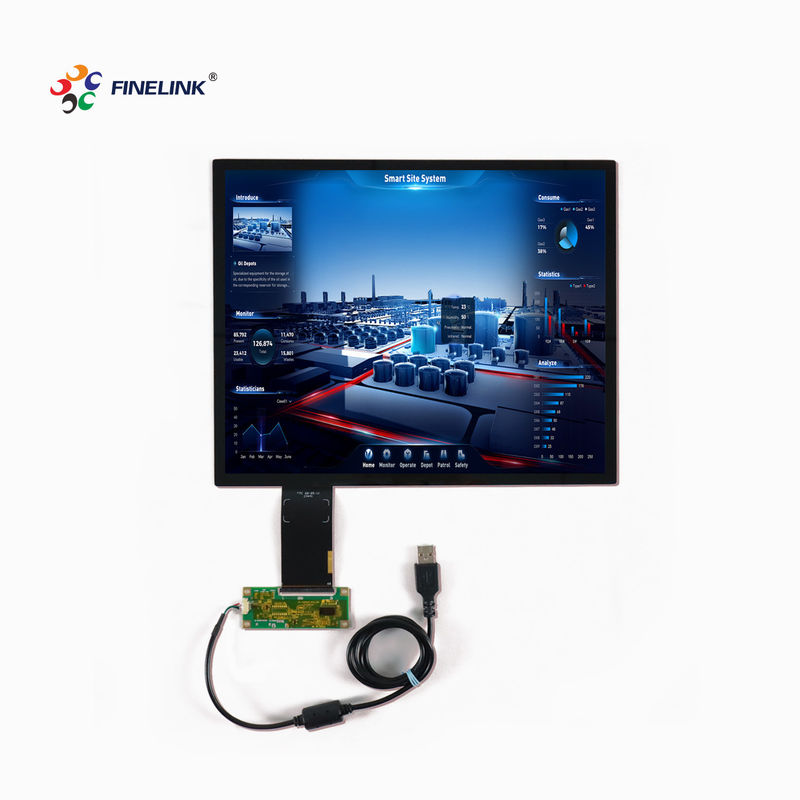

7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks

7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks

Custom Capacitive Touch Screen Overlay Kit

Kiosks Capacitive Touch Screen Overlay Kit

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Model Number:

8063

Contact Us
Request A Quote
Product Details
Application:
For Monitor, Touch Monitor, Touch Display, Kiosk, Smart TV, POS Monitor
Interface:
USB/I2C/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
7-65 Inch
Drive IC:
EETI/ILIEK/SIS
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Highlight:

Custom Capacitive Touch Screen Overlay Kit

,

Kiosks Capacitive Touch Screen Overlay Kit

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$11.91/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

Our custom PCAP Capacitive Touch Screen Overlay Kits are available in a variety of sizes from 7 inches to 43 inches, designed to enhance interactive displays and kiosks with responsive, multi-touch capabilities. These overlay kits are perfect for upgrading existing displays or integrating into new projects, providing high precision and durability in demanding environments. Compatible with interactive kiosks, digital signage, and other touch-enabled devices, these kits are easy to install and offer a sleek, modern user experience.

Item
10.1 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK
Connection
COB
Lens OD
255*173mm
Sensor OD
230*1151mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, I2C
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)

Product Features

  • Wide Range of Sizes: Available in 7", 10.1", 13.3", 15", 18.5", 23.8", 32", and 43" to fit various display needs.
  • Multi-Touch Technology: Supports up to 10-point multi-touch for an intuitive and smooth user experience.
  • High Durability: Built with toughened glass for enhanced durability and long-term performance, making it ideal for high-traffic areas.
  • Easy Integration: Designed as an overlay kit, it can be easily mounted onto existing screens or integrated into new setups.
  • PCAP Technology: Projected Capacitive (PCAP) technology ensures fast, accurate, and reliable touch response, even in harsh conditions.
  • Customizable: Custom options available for touch sensitivity, glass thickness, and mounting design.

7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks 0

Application Scenarios

  • Interactive Kiosks: Ideal for public self-service kiosks in airports, shopping malls, hotels, and more.
  • Digital Signage: Enhances the interactivity of digital signage displays in retail stores, corporate environments, and advertising spaces.
  • Education and Training: Suitable for interactive whiteboards or display systems in classrooms, training centers, and lecture halls.
  • Industrial Control: Can be used in industrial environments requiring robust touch functionality for control panels and machinery interfaces.
  • Gaming: Suitable for interactive gaming stations, enhancing user engagement with fast touch response.

7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks 1

Customization Services

  • Size Options: We offer a variety of standard sizes, or you can request a custom size to fit your specific application.
  • Touch Sensitivity: Adjustable touch sensitivity for glove touch or stylus input.
  • Glass Thickness: Options for different glass thicknesses based on durability and safety needs.
  • Mounting Options: Custom mounting designs and solutions for easy integration into your existing system.
7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks 2
7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks 3
7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks 4

Packaging and Shipping

  • Protective Packaging: All touch screen overlays are packed with protective materials to avoid damage during shipping.
  • Bulk Orders: We offer bulk packaging solutions for larger orders.
  • Global Shipping: Available worldwide with reliable delivery services.

FAQ

Q: Can I customize the size of the overlay kit?
A: Yes, we provide a wide range of sizes and can customize to fit your specific display dimensions.

Q: How durable are the overlay kits?
A: Our kits are designed with industrial-grade, toughened glass, ensuring high durability even in demanding environments.

Q: Can the touch screen work with gloves?
A: Yes, our overlay kits can be customized for glove touch functionality, ideal for industries like healthcare and manufacturing.

Q: How do I install the overlay kit?
A: The overlay kits are easy to install, with custom mounting solutions available to ensure a seamless integration.

Q: Are these overlay kits compatible with existing displays?
A: Yes, our overlay kits are designed to retrofit existing displays or integrate into new systems with ease.

Q: What applications are these touch screen overlay kits suitable for?
A: They are perfect for interactive kiosks, digital signage, educational displays, industrial controls, and gaming.

Q: Do you offer customization options for touch sensitivity?
A: Yes, we can adjust the touch sensitivity for glove or stylus inputs depending on your project’s needs.

Q: How are the products packaged for shipping?
A: Each unit is securely packaged with protective materials to ensure it arrives in perfect condition. We also offer special packaging for bulk orders.

7 10.1 13.3 15 18.5 23.8 32 43 Inch Custom PCAP Capacitive Touch Screen Overlay Kit for Interactive Displays and Kiosks 5
