Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063

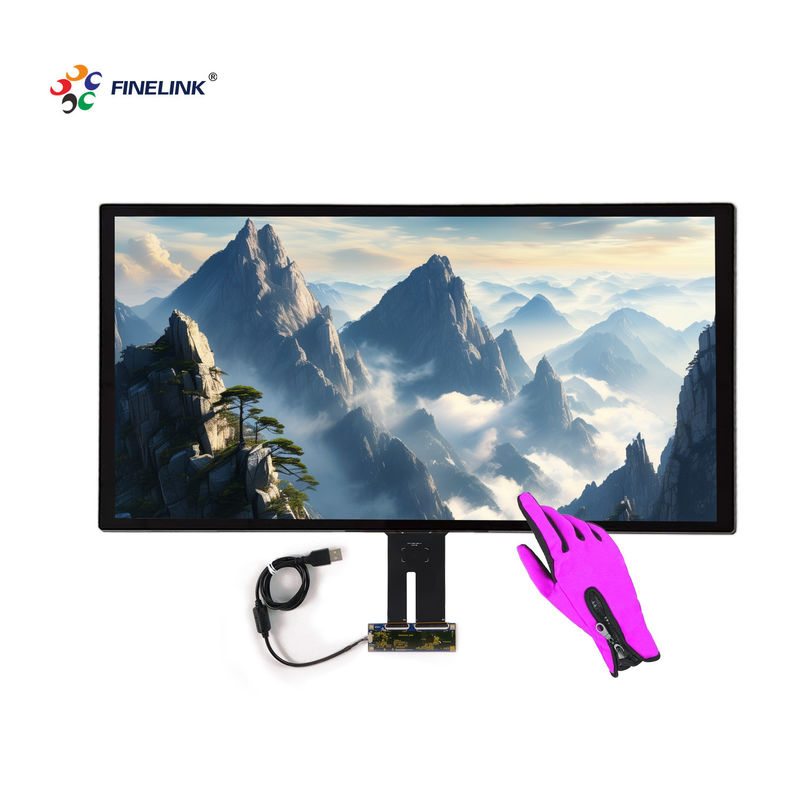

Our Custom Size PCAP (Projected Capacitive) Touch Screen Overlay Kit is designed to meet diverse kiosk and display needs, delivering high responsiveness, durability, and waterproof functionality. Available in sizes from 7 to 32 inches, these overlays feature multi-touch capabilities and a robust waterproof design, ensuring reliability in both indoor and outdoor environments. Built for compatibility with various interactive systems, this kit is perfect for enhancing user engagement in kiosks, retail displays, and industrial setups.
Item
|
10.1 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|

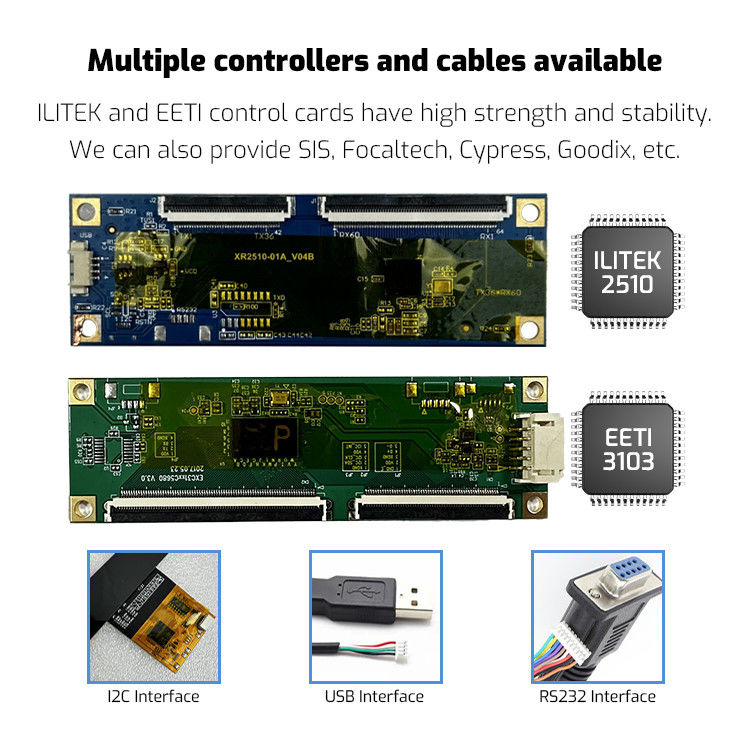

Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
255*173mm
|
Sensor OD
|
230*1151mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Are these touch panels waterproof?
A: Yes, this overlay kit is designed to be waterproof, making it suitable for outdoor and moist environments.
Q: Can I use this panel with gloves?
A: Yes, we offer touch sensitivity adjustments to support glove use, ideal for industrial and medical applications.
Q: What sizes are available?

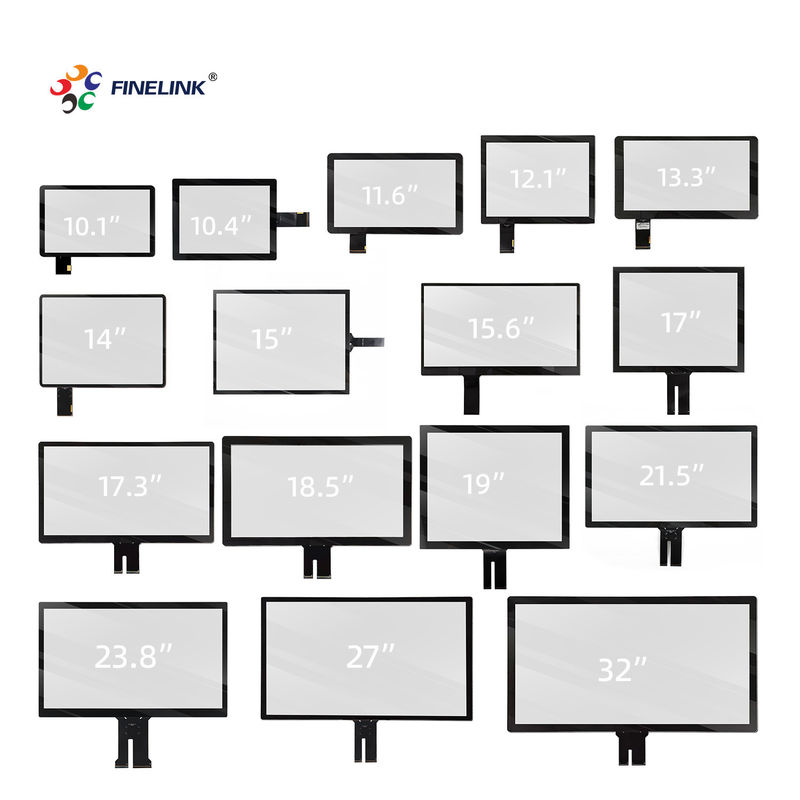

A: Sizes range from 7", 10.1", 13.3", 15.6", 19", 21.5", 24", to 32", with custom options available upon request.
Q: Is this overlay kit compatible with my system?
A: It supports USB, RS232, and IIC interfaces, ensuring compatibility with most interactive systems.
Q: Does the panel support multi-touch?
A: Yes, the kit supports up to 10-point multi-touch for an interactive user experience.
Q: What applications are these panels suitable for?
A: Ideal for kiosks, digital signage, outdoor displays, industrial control systems, and healthcare equipment.
Q: Can you provide custom orders for specific projects?
A: Yes, we offer tailored solutions, including size, interface, and surface customization, for project-specific needs.
