Place of Origin:
Guangdong, China
Brand Name:
Finelink
Model Number:
8063

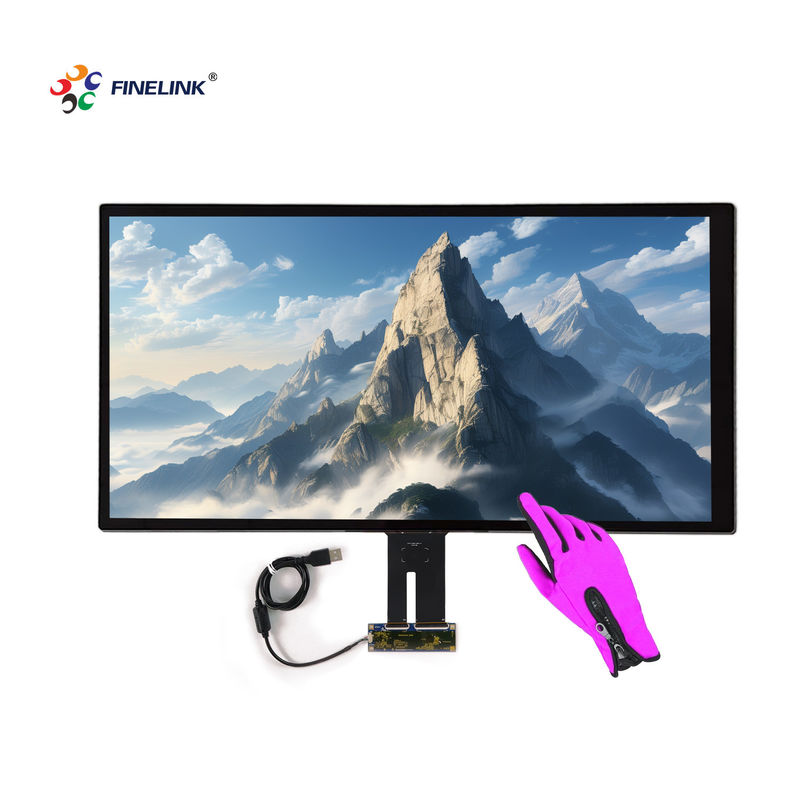

This PCAP Capacitive Touch Screen Overlay Kit is designed for ultimate clarity, responsiveness, and durability, suited for high-traffic environments in commercial and industrial applications. Available in sizes from 7 to 43 inches, this overlay kit offers multi-touch support, anti-glare surface treatment, and comes with an EETI/ILITEK controller for seamless integration. Its robust construction makes it perfect for interactive displays in retail, kiosks, and other environments where precise touch and clear visibility are essential.
Item
|
10.1 Inch G+G Capacitive Touch Panel
|
---|---|
Ratio
|
16:9
|
Structure
|
G+G
|
Type
|
Capacitive
|
Touch controller
|
EETI/ILITEK
|
Connection
|
COB
|
Lens OD
|
255*173mm
|
Sensor OD
|
230*1151mm
|
Cover glass(T)
|
3mm
|
SENSOR(T)
|
0.7mm
|
Surface hardness
|
≥6H
|
Transmittance
|
≥85%
|
Touch points
|
10 Points
|
Operating Temperature
|
-20℃ ~ +60℃
|
Interface Type
|
USB, RS232, I2C
|
Color
|
Black,White,Transparent,Colors Optional
|
Customized
|
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
|
Operating system
|
WinXP/7/8/10,Android,IOS,Mac,Linux
|
Application
|
Industrial,Medical,Banking,Consumer,Education,HMI.....
|
Warranty
|
12 Months(3 years maximum)
|
Q: Does this touch screen panel come with anti-glare protection?
A: Yes, each screen comes with an anti-glare coating to enhance visibility in brightly lit environments.
Q: Can the touch screen support multi-touch functionality?
A: Yes, it supports up to 10-point multi-touch, allowing for a highly interactive user experience.
Q: Which controller is used in this touch screen?
A: This kit features either an EETI or ILITEK controller for optimal compatibility and touch accuracy.
Q: Are these screens waterproof?
A: Yes, this model is designed with a waterproof structure, making it suitable for outdoor and high-moisture settings.
Q: What are the size options available?

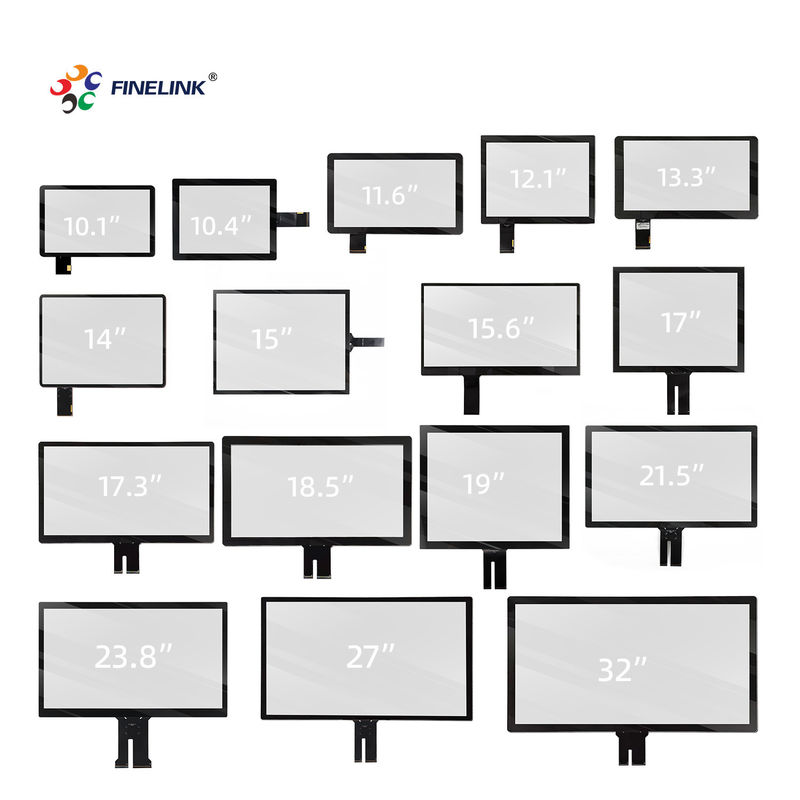

A: We offer sizes ranging from 7" to 43" to suit various applications.
Q: Can you provide custom features for specific projects?
A: Yes, we offer custom options for size, controller, touch sensitivity, and surface treatments to fit project-specific needs.
