10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM

10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM

10.1 Inch Open Frame LCD Monitor

10.1 Inch Waterproof Touch Screen Panel

ODM Touch Screen Panel

Place of Origin:

Guangdong, China

Brand Name:

Finelink

Certification:

RoHS,REACH

Model Number:

8058 101

Contact Us
Request A Quote
Product Details
Features:
Multi-touch
Length:
254.96mm
Application:
Monitor, Touch Display, Kiosk, Smart Home
Interface:
USB/IIC/Serial Port, I2C/USB/RS232
Type:
Capacitive
Diagonal Screen Size:
10.1 Inch
Width:
172.6mm
Drive IC:
EETI/ILIEK/SIS
Product Name:
10.1 Inch Capacitive Touch Panel
Structure:
Glass+Glass+FPC+IC
Color:
Multi
Solution:
EETI/ILIEK/SIS
Touch Points:
Multi Point Touch
Function:
Multifunctional
OS:
Linux/ Win/Android Optional
HS Code:
85480000
Port:
Shenzhen, Guangzhou, Shanghai
Highlight:

10.1 Inch Open Frame LCD Monitor

,

10.1 Inch Waterproof Touch Screen Panel

,

ODM Touch Screen Panel

Payment & Shipping Terms
Minimum Order Quantity
2 pieces
Price
$13.07/pieces 2-99 pieces
Packaging Details
FINELINK Brand 10K Month Capacity 32 Inch G+G EETI/ILITEK Capacitive Touch Panel for Wall-Mount Photo Frame AIO
Standard packaging with carton or wooden box
1.The touch panel packing with foam plastic materials;
2.Packing with carton or wooden box
Delivery Time
7-20 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1000000 Piece/Pieces per Month 21.5 Inch Touch Panel for example
Product Description

Product Description

The 10.1 Inch Open Frame LCD Monitor with a waterproof touch screen panel is designed for versatile and demanding applications. This ODM (Original Design Manufacturer) solution provides a robust and reliable display, ideal for environments where durability and high performance are critical. The open frame design allows for easy integration into various systems and enclosures, making it perfect for industrial and commercial use.

Item
10.1 Inch G+G Capacitive Touch Panel
Ratio
16:9
Structure
G+G
Type
Capacitive
Touch controller
EETI/ILITEK/SIS
Connection
COB
Lens OD

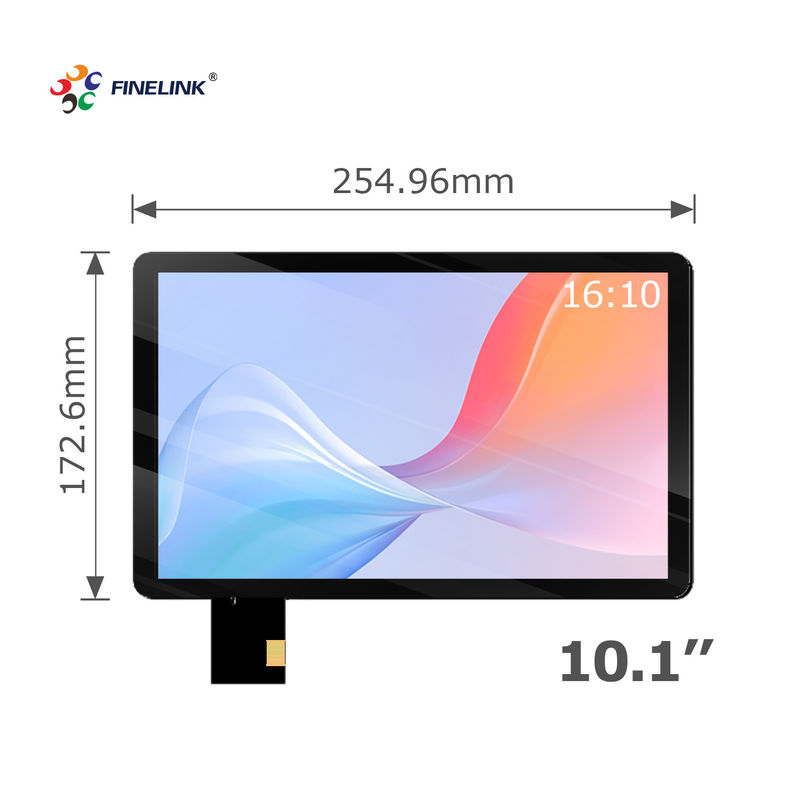

254.96*172.6mm
Sensor OD
229.69*151.1mm
Cover glass(T)
3mm
SENSOR(T)
0.7mm
Surface hardness
≥6H
Transmittance
≥85%
Touch points
10 Points
Operating Temperature
-20℃ ~ +60℃
Interface Type
USB, RS232, IIC
Color
Black,White,Transparent,Colors Optional
Customized
AG/AR/AF/AM/AH/Waterproof/Vandalproof/Glove touch
Operating system
WinXP/7/8/10,Android,IOS,Mac,Linux
Application
Industrial,Medical,Banking,Consumer,Education,HMI.....
Warranty
12 Months(3 years maximum)
10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM 0

Product Features

  • Waterproof Touch Screen: IP65-rated waterproof touch screen ensures reliable performance in wet and dusty environments.
  • High-Resolution Display: Offers clear and sharp visuals with excellent color accuracy and brightness.
  • Durable Construction: Built with industrial-grade components for long-lasting durability.
  • Versatile Connectivity: Supports multiple interfaces including USB, HDMI, and VGA for flexible integration.
  • Responsive Touch Technology: Capacitive touch screen provides accurate and responsive touch inputs.
  • Open Frame Design: Easy to mount and integrate into custom enclosures or existing systems.

10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM 1

Application Scenarios

  • Industrial Automation: Ideal for control panels, machinery interfaces, and monitoring systems in factories.
  • Kiosks and Terminals: Perfect for interactive kiosks, self-service terminals, and public information points.
  • Commercial Displays: Suitable for digital signage, retail displays, and advertising boards.
  • Healthcare: Can be used in medical equipment and patient monitoring systems due to its hygienic and durable design.
  • Outdoor Applications: Reliable performance in outdoor environments such as transportation hubs and public spaces.

10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM 2

Customization Services

  • Screen Size and Resolution: Customizable to fit specific requirements and applications.
  • Touch Technology: Options available for different touch technologies including resistive and capacitive.
  • Mounting Solutions: Custom mounting solutions to ensure seamless integration.
  • Branding: Customizable with company logos and specific design elements to match branding.
  • Firmware and Software: Tailoring of firmware and software to meet specific operational needs.
10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM 3
10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM 4
10.1 Inch Open Frame LCD Monitor Waterproof Touch Screen Panel ODM 5

Packaging and Shipping

  • Secure Packaging: Each unit is packaged securely with protective materials to prevent damage during transit.
  • Bulk Shipping Options: Available for larger orders to reduce shipping costs and streamline delivery.
  • Tracking and Support: Comprehensive tracking services and customer support to ensure timely delivery and satisfaction.

FAQ

Q: What customization options are available for this monitor?
A: We offer various customization options including screen size, touch technology, mounting solutions, and branding. Contact our sales team for specific requirements.

Q: Is the monitor suitable for outdoor use?
A: Yes, the monitor is IP65-rated for waterproofing and is designed to perform reliably in outdoor and harsh environments.

Q: What interfaces does the monitor support?
A: The monitor supports multiple interfaces including USB, HDMI, and VGA, providing flexibility for different applications.

Q: How is the monitor packaged for shipping?
A: Each monitor is securely packaged with protective materials to prevent any damage during transit. Bulk shipping options are also available.

Q: What is the warranty period for this monitor?
A: The monitor comes with a standard one-year warranty, with options to extend the warranty based on your needs.

Q: Can the monitor be integrated into custom enclosures?
A: Yes, the open frame design allows for easy integration into custom enclosures or existing systems.
